Mirrors: Service and Repair

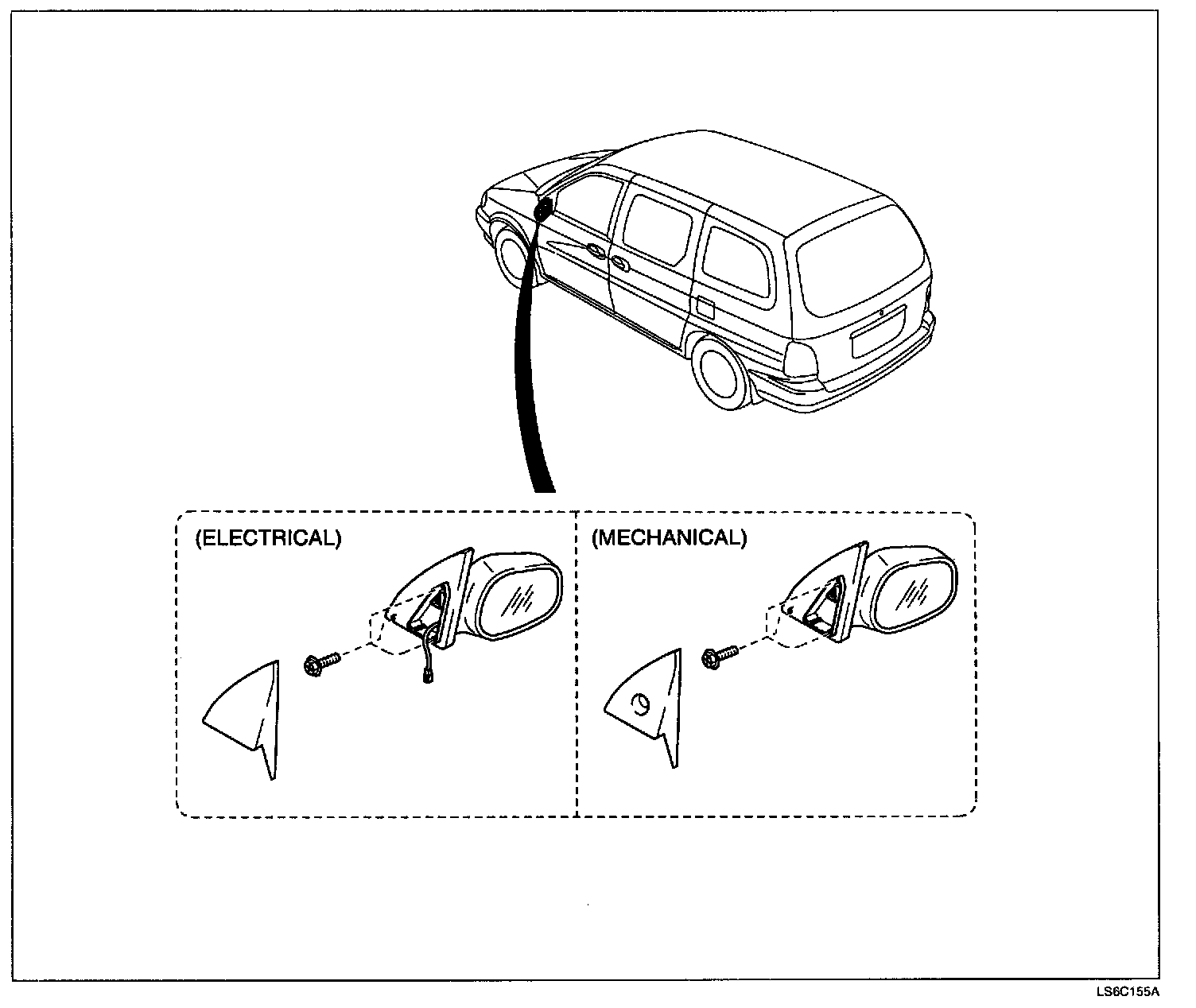

Outside Rear View Mirror:

REMOVAL

1. Disconnect negative battery cable.
2. Remove outside rearview mirror garnish.




1. Remove garnish from door frame.
2. Disconnect electrical connector.

3. Remove outside rearview mirror.




1. Remove bolts(3) and clip(1).

Tightening torque bolt 4.5 - 6.6 N.m (0.45 - 0.66 kg.m, 3 - 5 lb.ft)

2. Disconnect electrical connector.

4. Remove mirror.

CAUTION: Wear gloves to remove and install the mirror holder




Insert flat bladed screwdriver between the outside rearview mirror holder and the mirror assembly.

5. Remove outside rearview mirror actuator.

CAUTION: When prying with a flat bladed screwdriver, wrap it with a shop towel to prevent damage.




Remove the outside rearview mirror actuator from the outside rearview mirror housing.

INSTALLATION
Install in reverse order of removal.
