Ignition Cable: Service and Repair

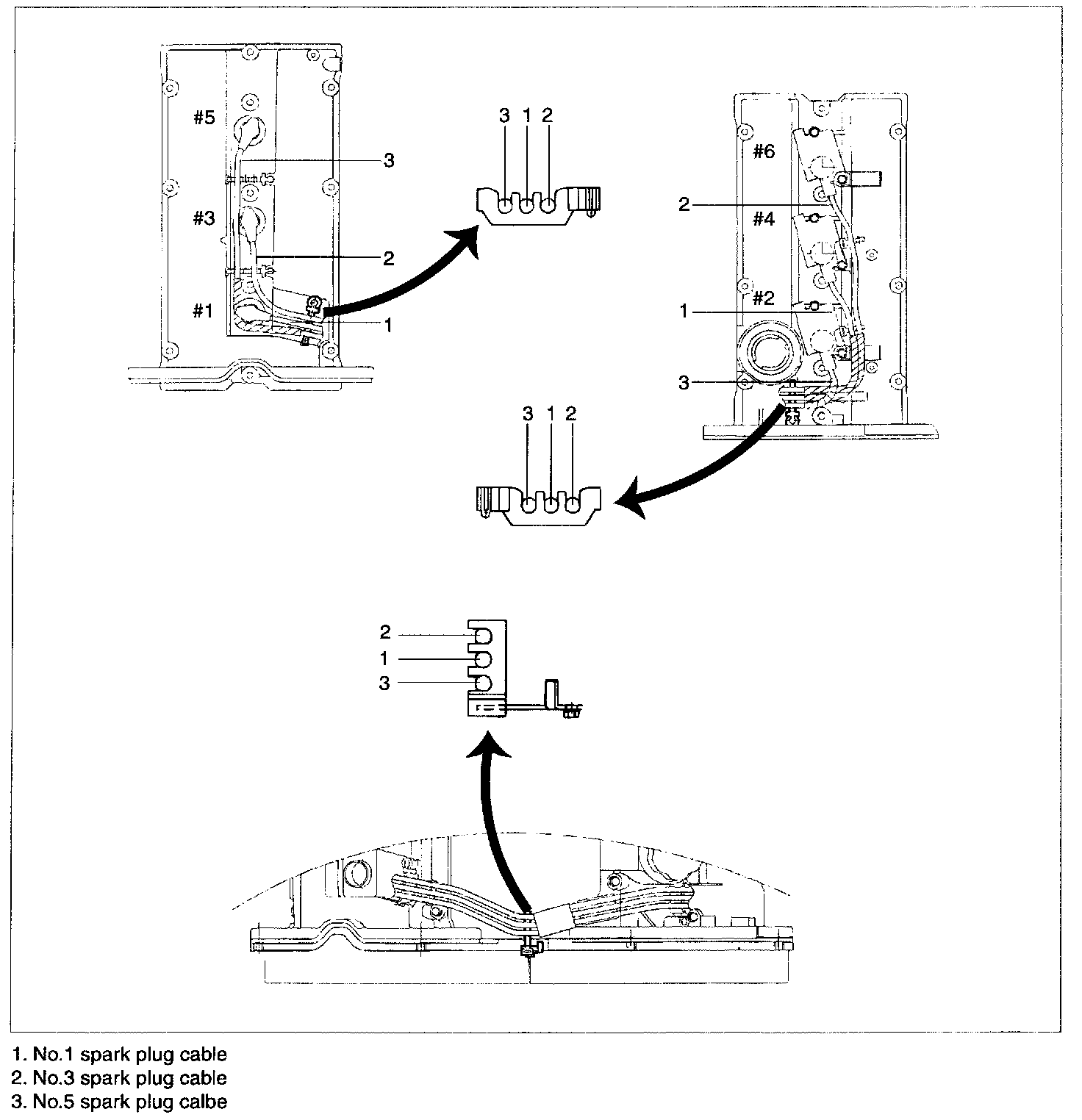

INSTALLATION OF SPARK PLUG CABLE




Improper arrangement of spark plug cables will induce flashover between the cables, causing misfiring and surging at acceleration in high-speed operations.
