System Specifications

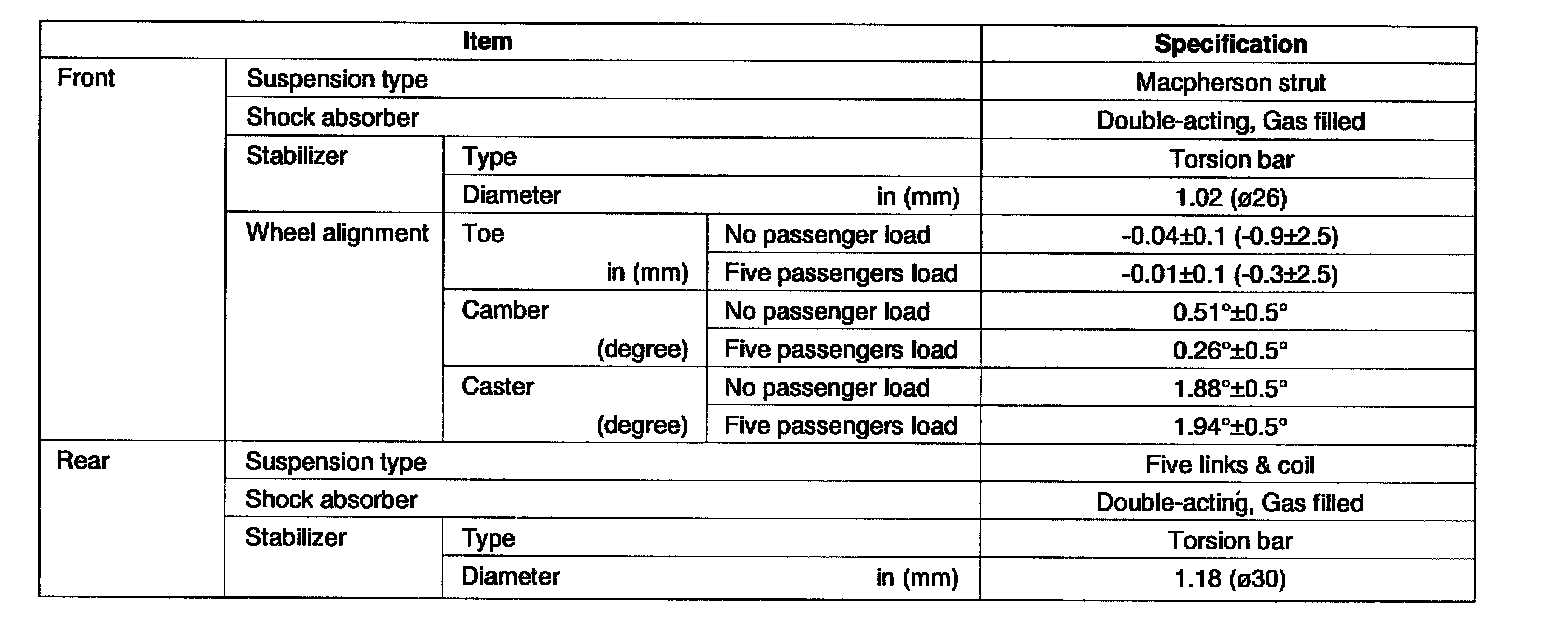

Suspension System

Wheel and tire





* The following guide should help you understand tire designations:
P Type (passenger)
205 Nominal width of tire in millimeters
70 Tire height-to-width ratio
R Radial-ply tire (or "D" for bias-ply tire)
15 Nominal rim diameter in inches

Do not install smaller than minimum size tires shown on the tire inflation placard on the vehicle.
