Rear Door: Components

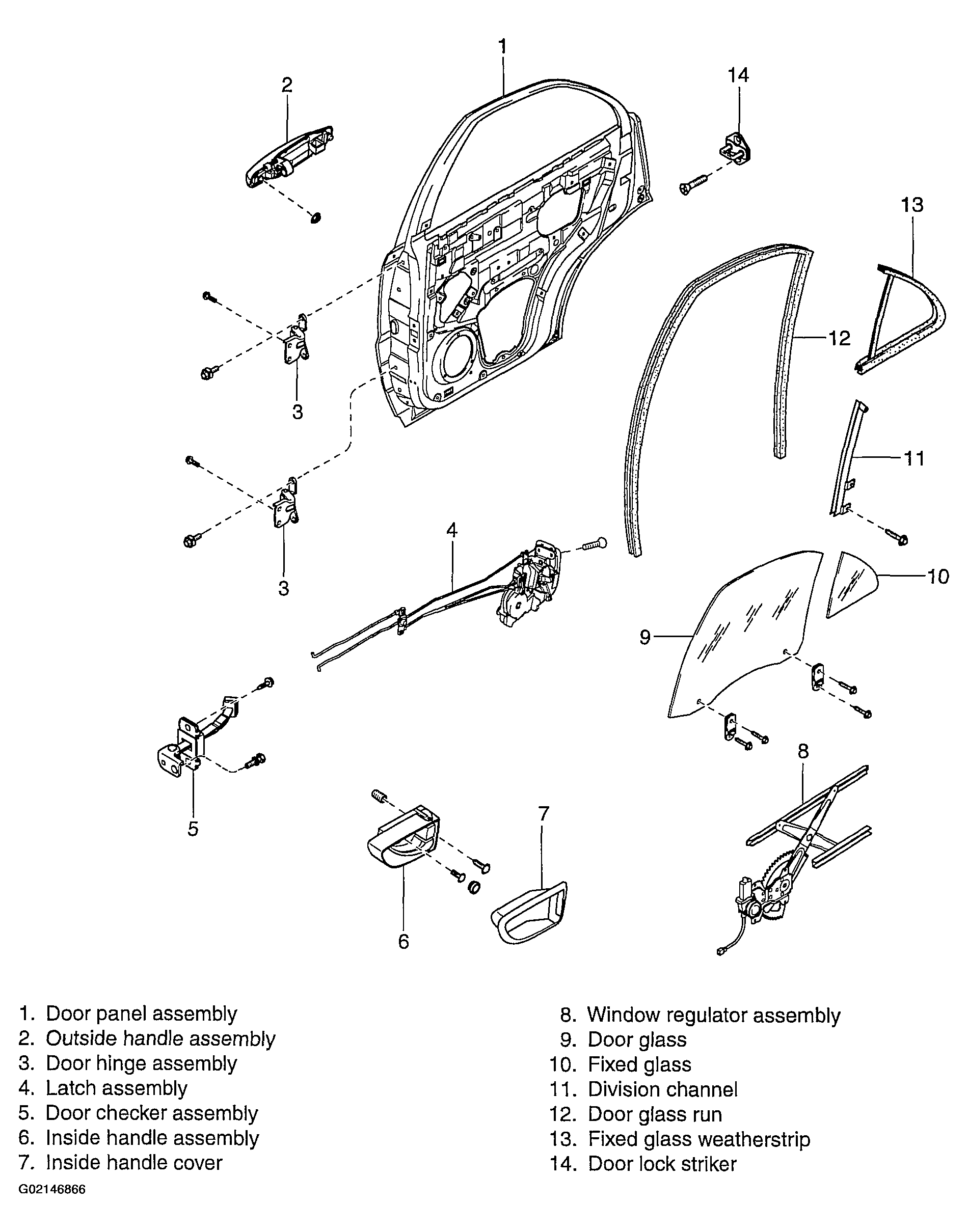

Fig 1: Identifying Rear Door Components (1 Of 2)
G02146866Courtesy of KIA MOTORS AMERICA, INC.

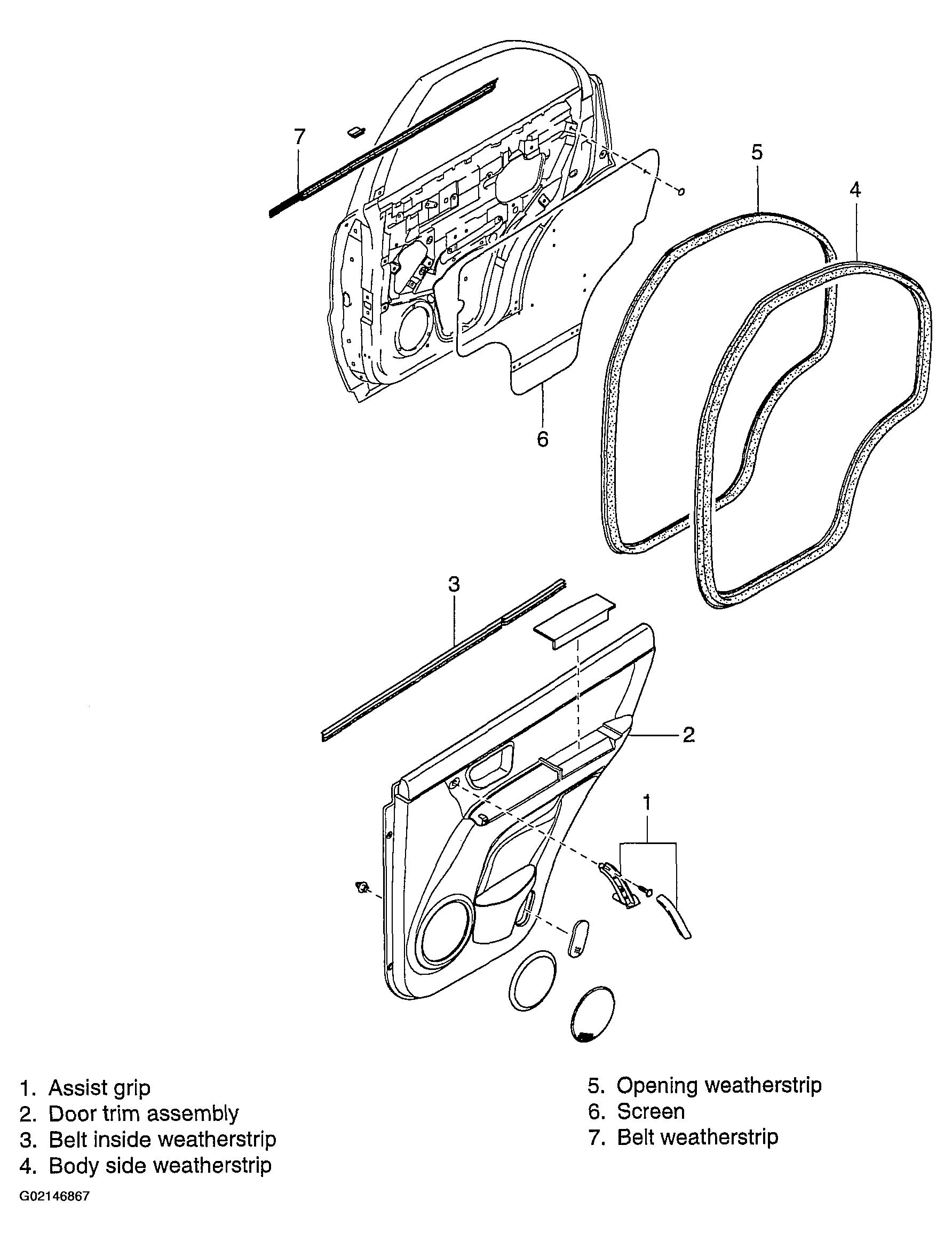

Fig 2: Identifying Rear Door Components (2 Of 2)
G02146867Courtesy of KIA MOTORS AMERICA, INC.
