Diagnostic Trouble Code Chart

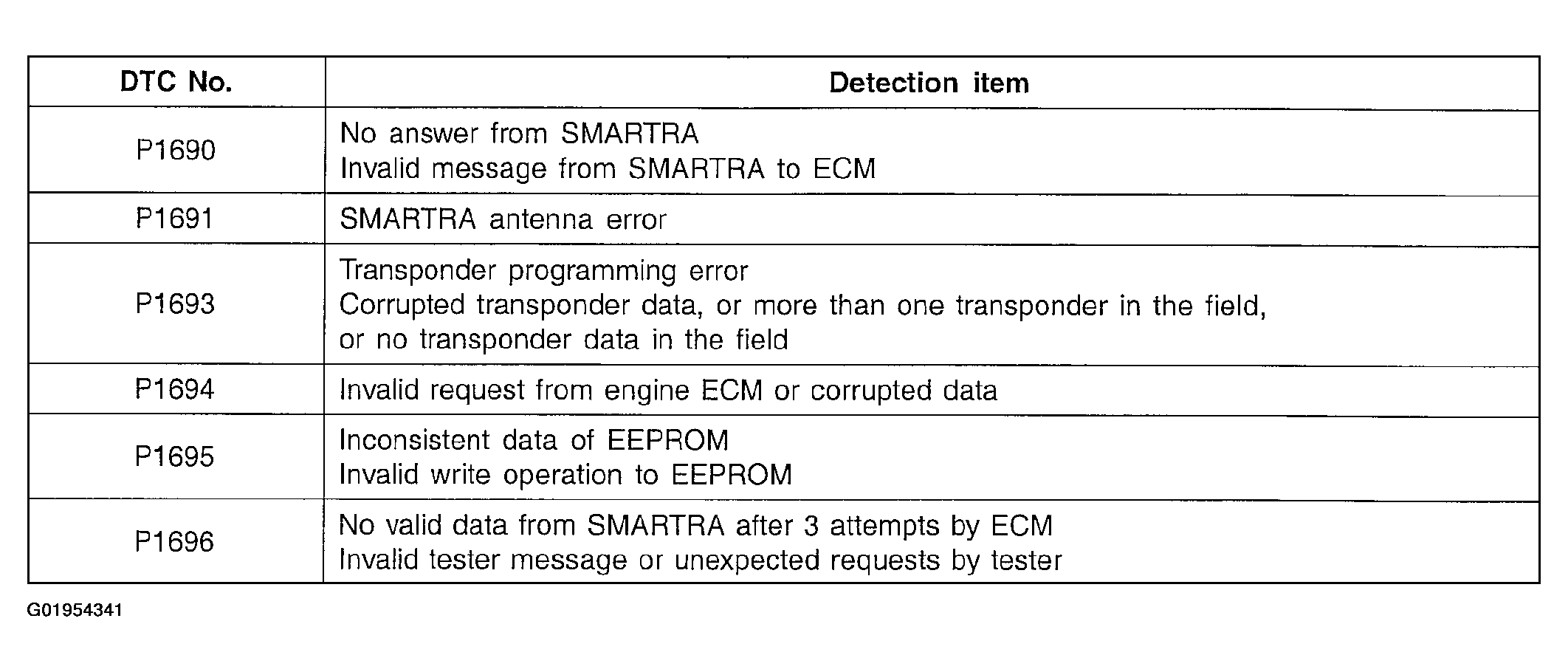

DTC INDEX
| DTC | Description |
|---|---|
| DTC P1690 | NO ANSWER FROM SMARTRA |
| DTC P1691 | SMARTRA ANTENNA ERROR |
| DTC P1693 | TRANSPONDER PROGRAMMING ERROR (CORRUPTED DATA) |
| DTC P1694 | INVALID REQUEST FROM ECM |
| DTC P1695 | INCONSISTENT DATA OF EEPROM |
| DTC P1696 | NO VALID DATA FROM SMARTRA AFTER 3 ATTEMPTS |
Inspect according to the inspection chart that is appropriate for the malfunction code.
