Wheel Speed Sensor: Components

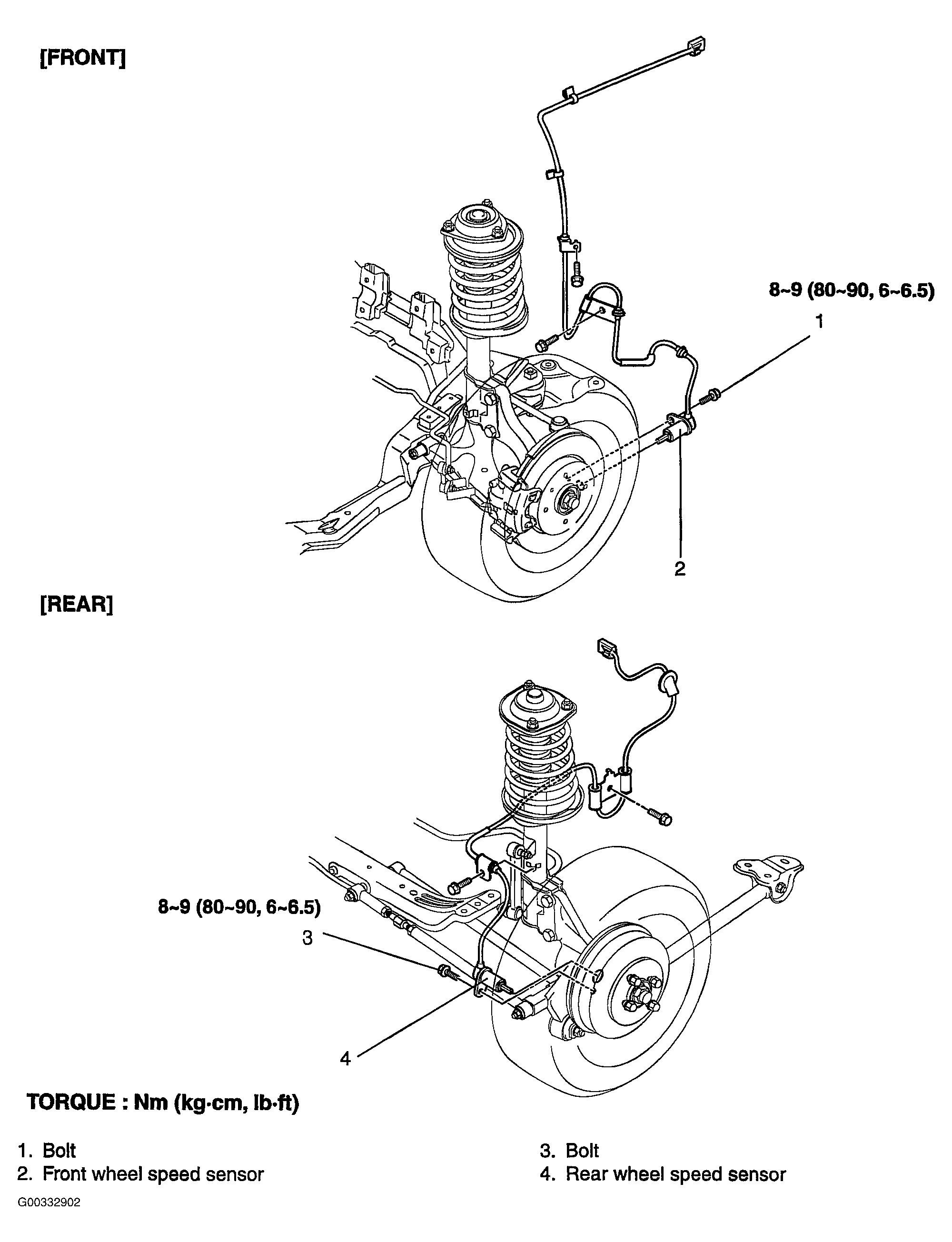

Fig 1: Illustrating Wheel Speed Sensor Components

G00332902

Courtesy of KIA MOTORS AMERICA, INC.
