Service Campaign - 2004-2006 Spectra 2.0L ACU Logic Reprogramming (SC055-Revised) (SC055R)

Publication date: 2006-04-12
Reference number: SC055R
Supersedes refnos: SC055

SERVICE CAMPAIGN - 2004-2006 SPECTRA 2.0L ACU LOGIC REPROGRAMMING (SC055-REVISED)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): CAMPAIGN KT2006040501, Date of Issue: April 12, 2006

KIA:	Spectra [LD](2004) Spectra [LD](2005) Spectra [LD](2006)
GROUP:	Campaign
AREA:	N. America
LANGUAGE:	English
GR./SYS./COMP:	Restraints / Supplemental Restraint System Control Module (SRSCM) / SRS Control Module (SRSCM)
SYMPTOM:	RTN003 - Others

Description

This bulletin modifies the prior TSB Campaign 055, dated October 2005 relating to the service campaign on 2004, 2005 and 2006MY LD Spectra, 2.0 liter vehicles with advanced airbag features within the production range from 12/11/03 through 10/10/05.

Based on information from the sensors in the vehicle's Occupant Classification System (OCS), the Airbag Control Unit (ACU) programming logic currently suppresses all airbags related to the front passenger seat when the OCS detects the presence of a child or an adult smaller than a 5th percentile female in the front passenger seat or if the seat is unoccupied . The suppressed airbags include the front airbag in the dashboard, the side airbag mounted in the side of the passenger seat, and the side curtain airbag mounted adjacent to the roof rail. This suppression is intended to protect a child or small adult from the risk of injury from rapidly deploying airbags.

The previous Campaign 055, dated October 2005 identified how to update the Airbag Control Unit (ACU) in order to permit the side curtain airbag deployment at all times. This revision supplements the previous bulletin to confirm that the logic change will also permit the deployment of the seat-mounted side airbag at all times.

Based on real world experience and engineering evaluations, Kia has determined that there is no substantial risk of injury from the small seat-mounted side airbag or the side curtain airbag during deployment and thus it is changing the Air Bag Control Unit (ACU) logic to permit side impact airbag and side curtain airbag deployment at all times. This bulletin provides information on how to update the LD Spectra 2.0 liter ACU logic for that purpose.

NOTE: Only LD Spectra 2.0 liter vehicles with advanced airbag features within the affected production range should be reprogrammed.

In addition, for 2006MY ONLY you will be required to insert a substitute page in the Spectra Owner's Manual of each customer for whom you conduct this service campaign logic change. The customer must be notified of this update to their Owner's Manual by showing them the revised page to ensure they are aware of it (see Fig 1 ).

Use the 32MB blue reprogramming card that was sent to your Kia dealers in October 2004. Download the latest Hi-Scan Pro reprogramming software for the 32MB (blue label) reprogramming card from the Downloads page of the Kia Global Information System (KGIS).

NOTE: The corrections to Spectra 2006 Owner s Manual are within the boxed areas of the illustration. Please explain the updates to the customer when the new page sticker is placed within their Owner's Manual.

Do NOT apply page sticker to 2004 and 2005 Spectra Owner s Manuals.

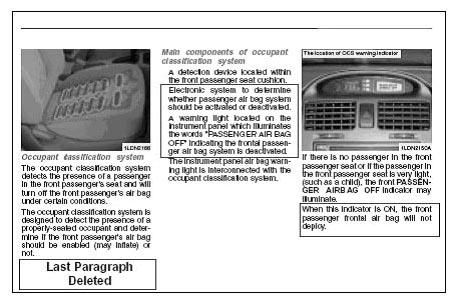

Fig 1: Corrections

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

A fully charged battery is necessary before reprogramming can take place. DO NOT connect a battery charger to the vehicle during reprogramming. Make sure the blower motor is 'OFF' during programming.
All reprogramming must be done with the ignition key in the "ON" position.
Be careful not to disconnect any cables connected to the vehicle or Hi-Scan Pro during the reprogramming procedure.
DO NOT start the engine during reprogramming.
DO NOT turn the ignition key "OFF" or interrupt the power supply during reporgramming.
When the reprogramming is completed, turn the ignition key "OFF" and wait several seconds before starting the engine.

Vehicles Affected

AFFECTED PRODUCTION RANGE

2004-2006MY Spectra 2.0L vehicles with production dates from 12/11/03 through 10/10/05.

Parts Information

PART NUMBER INFORMATION

Description	P/N
SC055 Campaign Completion Label	UC050SC055
SC055 Spectra 06MY Owner's Manual Page Label	UC050PS014

Extra SC055 Campaign Completion Labels are available at no cost through your regional PDC. The SC055 Spectra 06MY Owner's Manual Page Label will be shipped directly to dealers, for additional labels order through your regional PDC.

Service Procedure

INSPECTION PROCEDURE

Open hood and check for SC055 Campaign Completion Label in the engine compartment on the bulkhead above the brake booster.
- If label exists, Campaign SC055 has been completed NO FURTHER ACTION IS REQUIRED.
- If Campaign SC055 label DOES NOT EXIST, continue onto Hi-Scan Pro Installation Procedure.

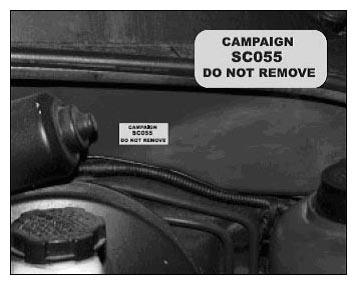

  Fig 2: Campaign Completion Label
  Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Campaign completion must be verified on the Warranty Coverage Validation screen, prior to performing repairs (KSS Main Menu - Option 3).

HI-SCAN PRO INSTALLATION PROCEDURE

Attach the OBD II Data Link Connector (DLC) (20-pin connector) cable to the Hi-Scan Pro main body and tighten the two (2) screws securely.
Remove the current system software card from the Hi-Scan Pro and insert the 32MB blue reprogramming software card with the new ECU program into the Hi-Scan Pro top/A slot.
Plug the DLC cable from the Hi-Scan Pro into the vehicle's connector (16-pin connector) under the instrument panel on the driver's side.

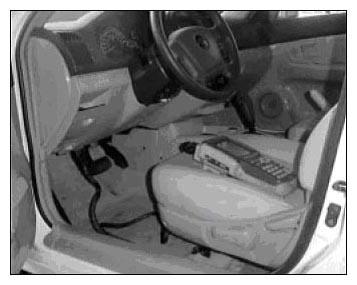

Fig 3: Attaching OBD II Data Link Connector Cable To HI-Scan Pro Main Body
Courtesy of KIA MOTORS AMERICA, INC.

AUTOMATIC REPROGRAMMING PROCEDURE

Turn the ignition key to the ON position.
Confirm that the airbag warning light flashes six times and stays off.
NOTE: If the air bag warning light stays on continuously after flashing there is a problem with the airbag system that must be repaired before starting the ACU reprogramming procedure.
Turn the HI-Scan Pro ON and press ENTER.
Select option "33. LD AIR-BAG REPROGRAMMING" and press ENTER.
NOTE: Do NOT interrupt the reprogramming at any time. The ACU may be rendered inoperative if the software does not download completely.

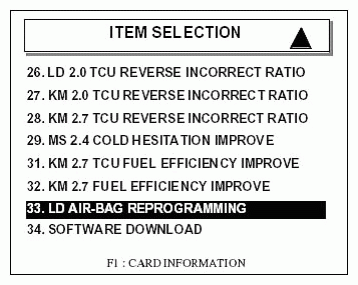

Fig 4: HI-Scan Pro Screen Display - LD AIR-BAG REPROGRAMMING
Courtesy of KIA MOTORS AMERICA, INC.
Select option "01. LD AIR-BAG REPROGRAMMING [AUTO]" and press ENTER.
Enter "0525" as the password for automatic reprogramming mode and press ENTER.
NOTE: Be sure to input the correct password. If an incorrect password is selected, the correct software will NOT be downloaded.

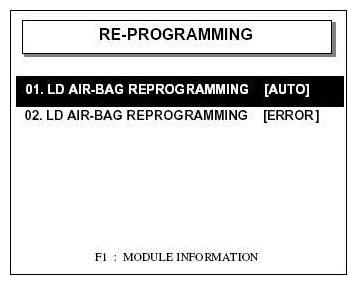

Fig 5: HI-Scan Pro Screen Display - LD AIR-BAG REPROGRAMMING [AUTO]
Courtesy of KIA MOTORS AMERICA, INC.
The Hi-Scan Pro will establish communication and reprogram the ACU automatically.
When "REPROGRAMMING COMPLETED" message is displayed, press ENTER and turn Hi-Scan Pro off.
Turn the ignition key off for 20 seconds and then turn ignition key on to confirm system operation.
Check for airbag Diagnostic Trouble Codes (DTCs) using the Hi-Scan Pro with system software card and erase any DTCs.
NOTE: If reprogramming did NOT complete properly or was interrupted, refer to the ACU REPROGRAMMING TROUBLESHOOTING GUIDE .
Install SC055 Campaign Completion Label in the engine compartment on the bulkhead above the brake booster.

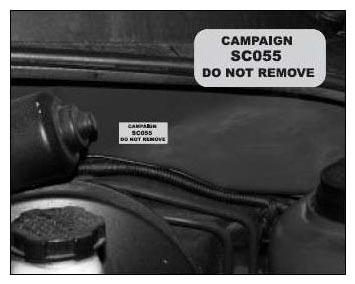

Fig 6: Campaign Completion Label

Courtesy of KIA MOTORS AMERICA, INC.

In Section 3 of the 2006MY (only) Owner's Manual apply the new page sticker over page 57.
NOTE: If reprogramming did NOT complete properly or was interrupted, repeat process using the following manual reprograming procedure.

MANUAL REPROGRAMMING PROCEDURE

Turn ignition key to the "ON" position.
Turn the Hi-Scan Pro on and press ENTER.
Select option "33. LD AIR-BAG REPROGRAMMING" and press ENTER.
Select option "02. LD AIR-BAG REPROGRAMMING [ERROR]" and press ENTER.
Select option "01 LD AIR-BAG ERROR MODE" and press ENTER.

Fig 7: HI-Scan Pro Screen Display - LD AIR-BAG ERROR MODE
Courtesy of KIA MOTORS AMERICA, INC.
Enter "2400" as the password for manual reprogramming mode and press ENTER.
When "REPROGRAMMING COMPLETED" message is displayed, press ENTER and turn the Hi-Scan Pro off.
Turn the ignition off for 20 seconds and then turn ignition key on to confirm proper airbag system operation.
Check for airbag Diagnostic Trouble Codes using the Hi-Scan Pro with system software card and erase any DTCs.
Install SC055 Campaign Completion label in the engine compartment on the bulkhead above the brake booster.

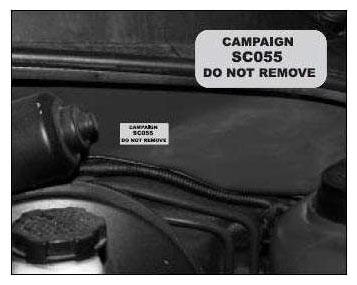

Fig 8: Campaign Completion Label
Courtesy of KIA MOTORS AMERICA, INC.
In Section 3 of the 2006MY (only ) Owner's Manual apply the new page sticker over page 57.

ACU REPROGRAMMING TROUBLESHOOTING GUIDE

"INVALID PASSWORD": Enter the exact password again.
"REPROGRAMMING ERROR PLEASE WAIT FOR RETRY": Error occurred during reprogramming, but the Hi-Scan Pro will retry the reprogramming automatically.
"ALREADY REPROGRAMMED" or "THIS ECM IS DIFFERENT TYPE": The reprogramming has already been done on the vehicle or the ACU is not valid type for this reprogramming.
"COMMUNICATION ERROR PLEASE CHECK THE SYSTEM": In this case, you must reprogram the ACU manually by selecting option "02. LD AIRBAG REPROGRAMMING.

Operation Code And Time

WARRANTY CLAIM INFORMATION

Claim Type	Causal P/N	Qty.	Cond. Code	Cause Code	Repair Description	Labor OP Code	Time	Related Parts	Qty.
R	95910 2F400	0	N94	C40	SRSCM Reprogramming	050065R0	0.2	N/A	0

NOTE: To improve customer satisfaction always remember to refer to the Warranty Coverage Validations Inquiry Screen (Select 3) on your Kia Standard System (KSS) Dealer Main Menu for a list of any additional campaigns that may need to be performed on the vehicle before returning it to the customer.
