Strut Assembly: Inspection
- Check the strut insulator bearing for wear or damage.
- Check rubber parts for damage or deterioration.

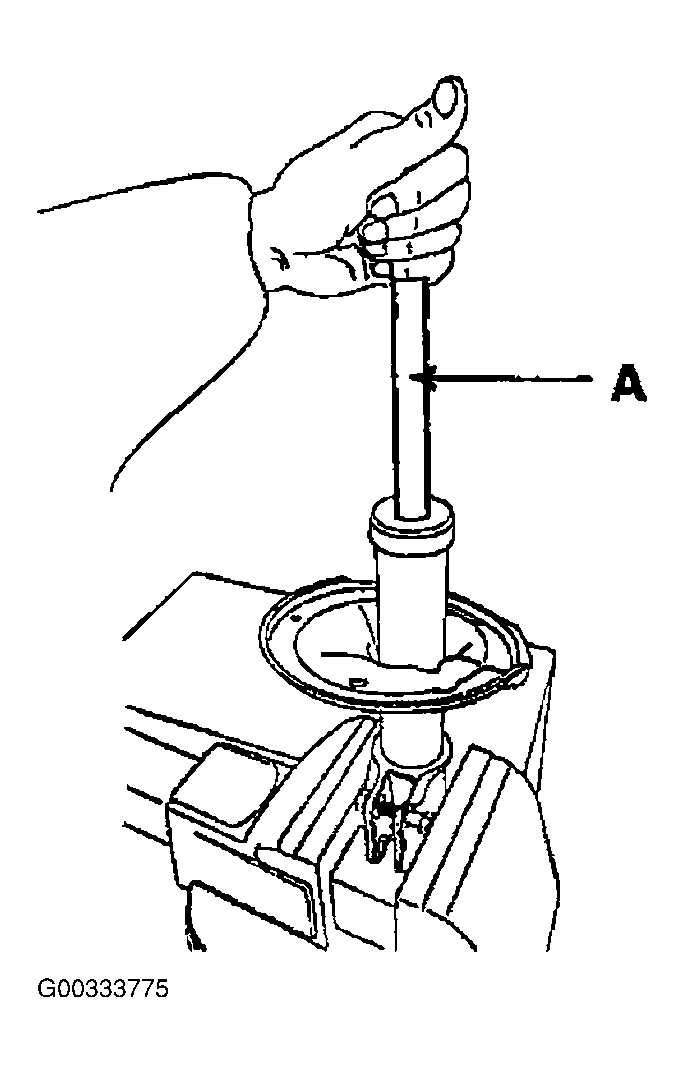

- Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.
Courtesy of KIA MOTORS AMERICA, INC.
