Special Tools

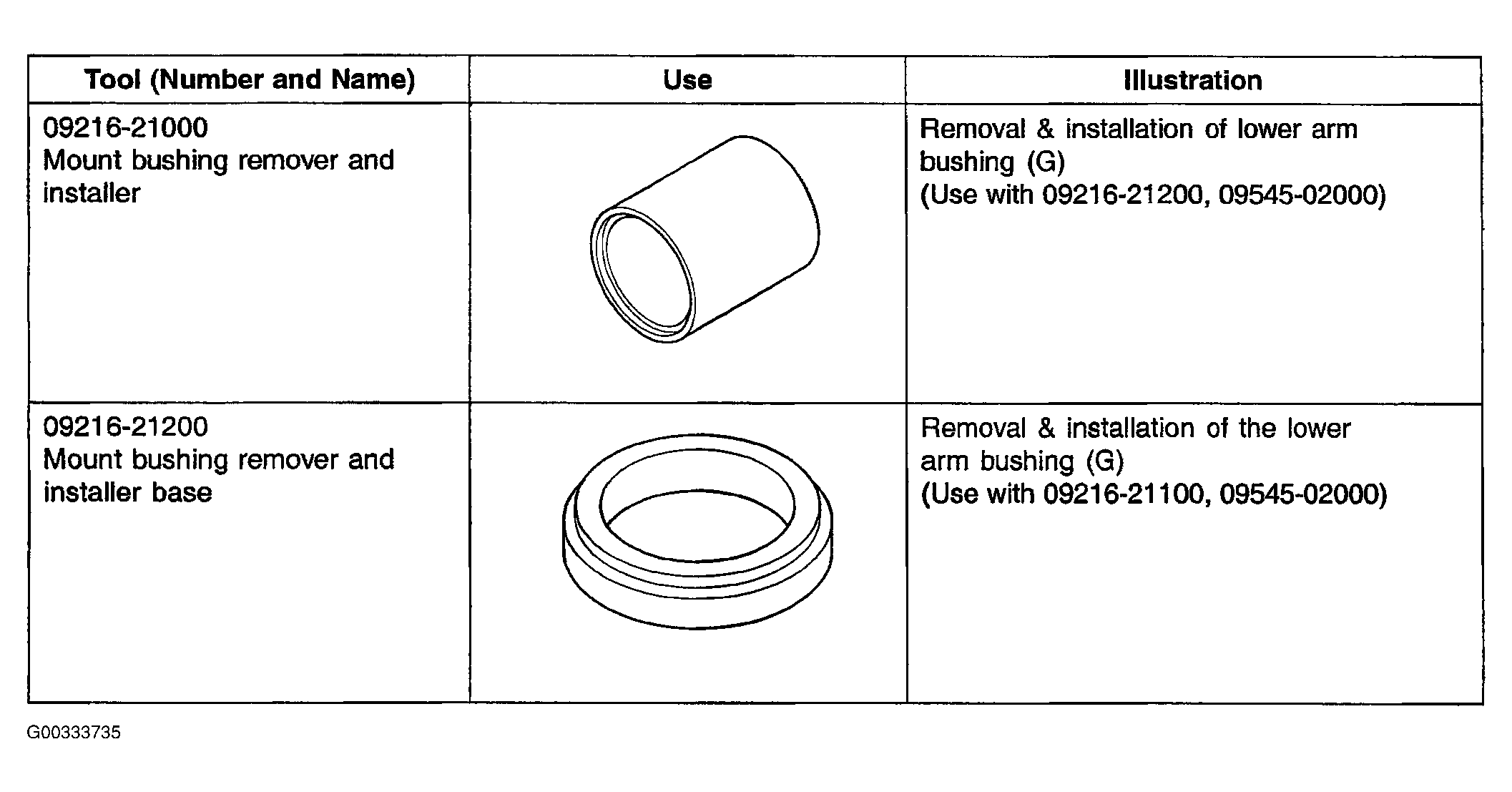

Fig 1: Identifying Special Tools (1 Of 3)
G00333735Courtesy of KIA MOTORS AMERICA, INC.

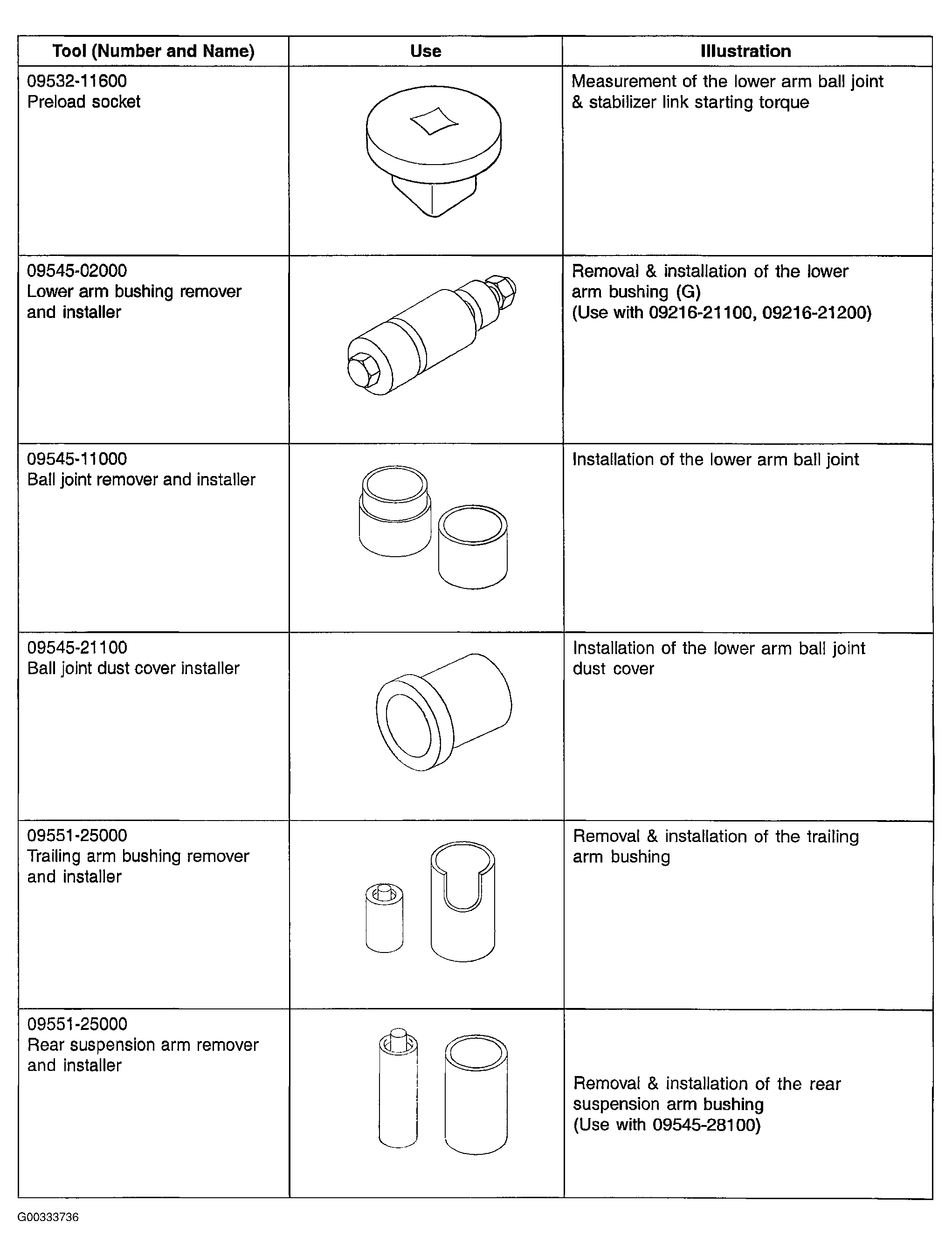

Fig 2: Identifying Special Tools (2 Of 3)
G00333736Courtesy of KIA MOTORS AMERICA, INC.

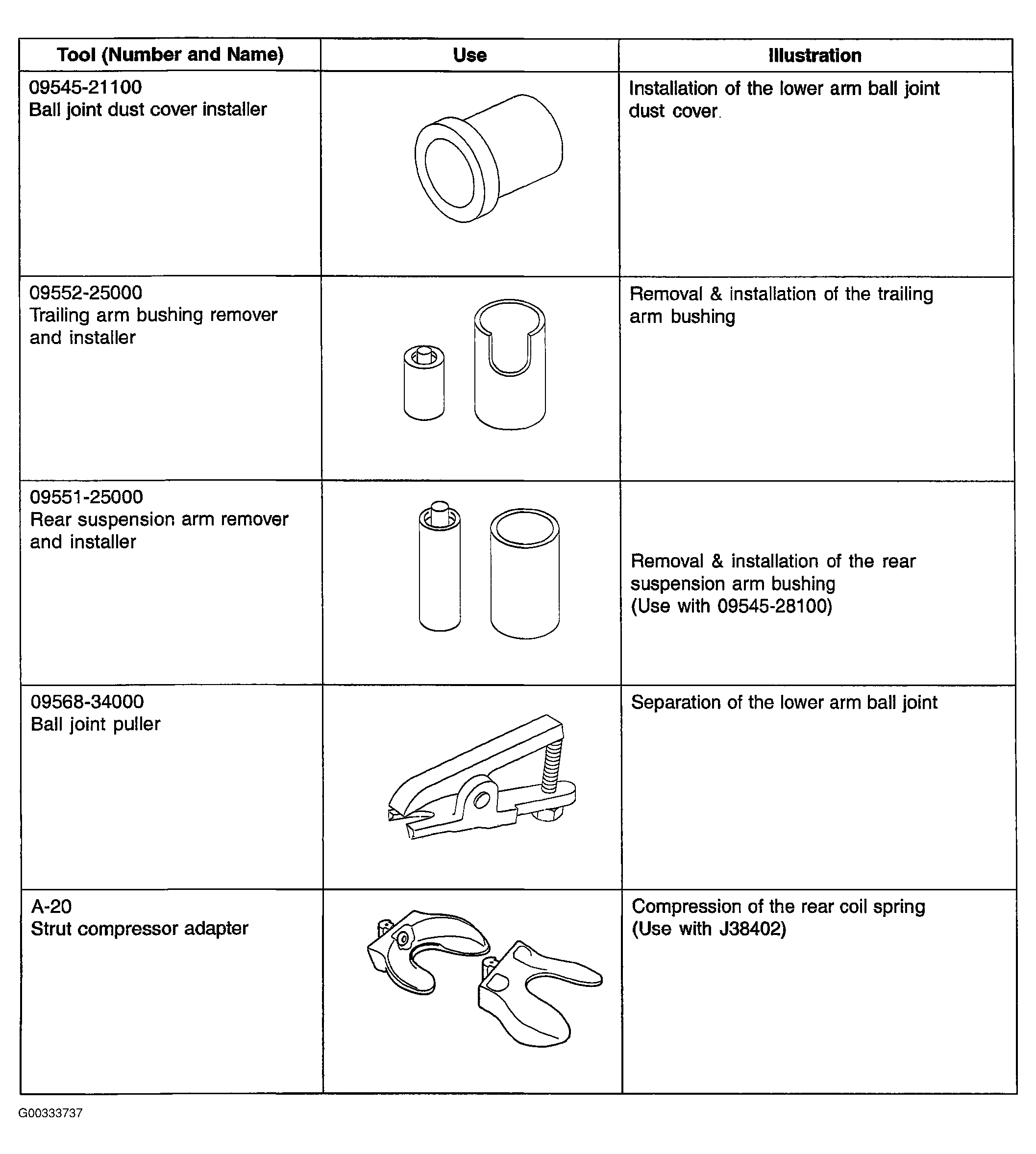

Fig 3: Identifying Special Tools (3 Of 3)
G00333737Courtesy of KIA MOTORS AMERICA, INC.
