Power Windows: Troubleshooting

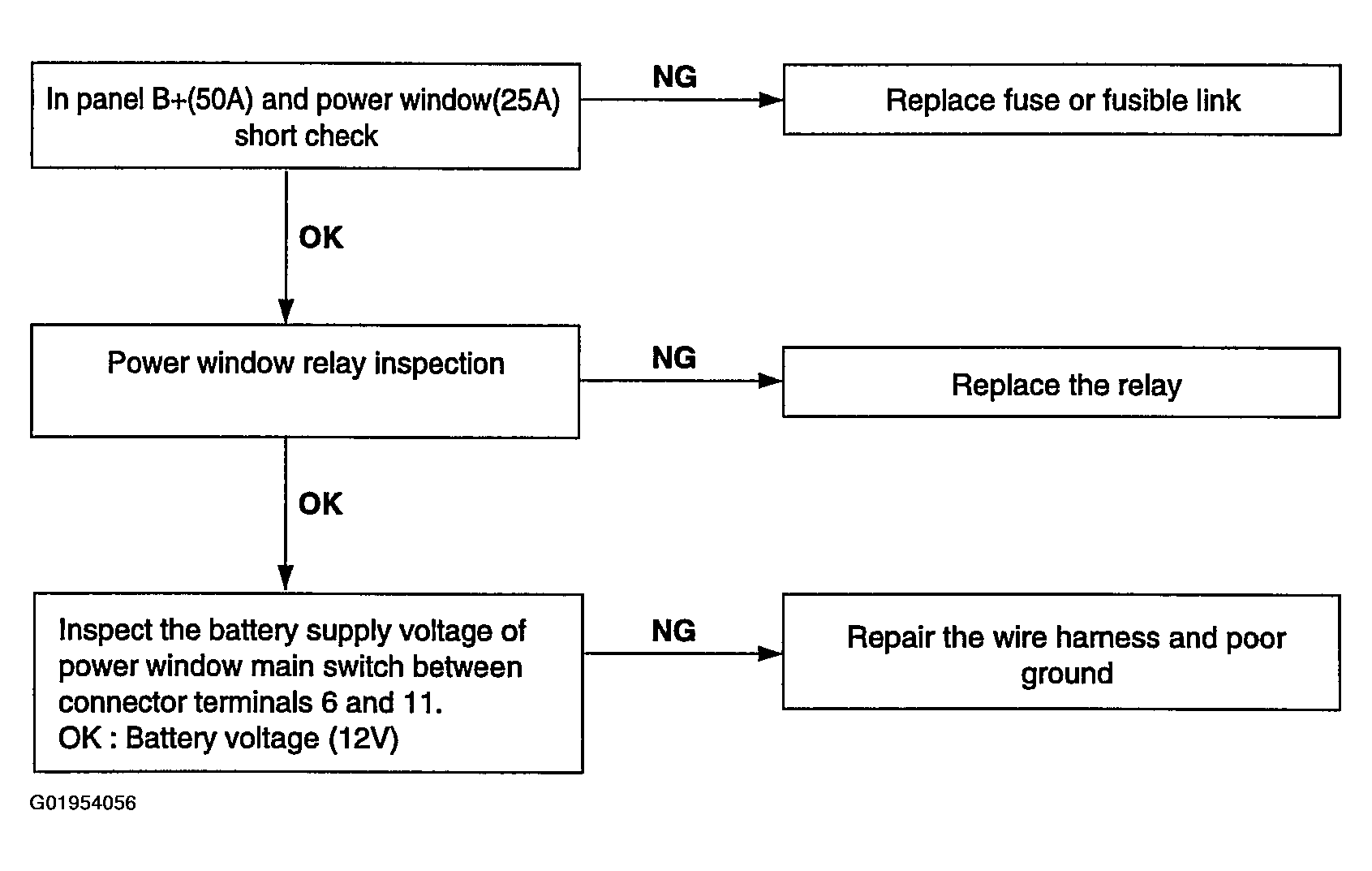

No windows operate from the main switch on the driver's door.
Fig 1: No Windows Operate From The Main Switch On The Driver's Door Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.

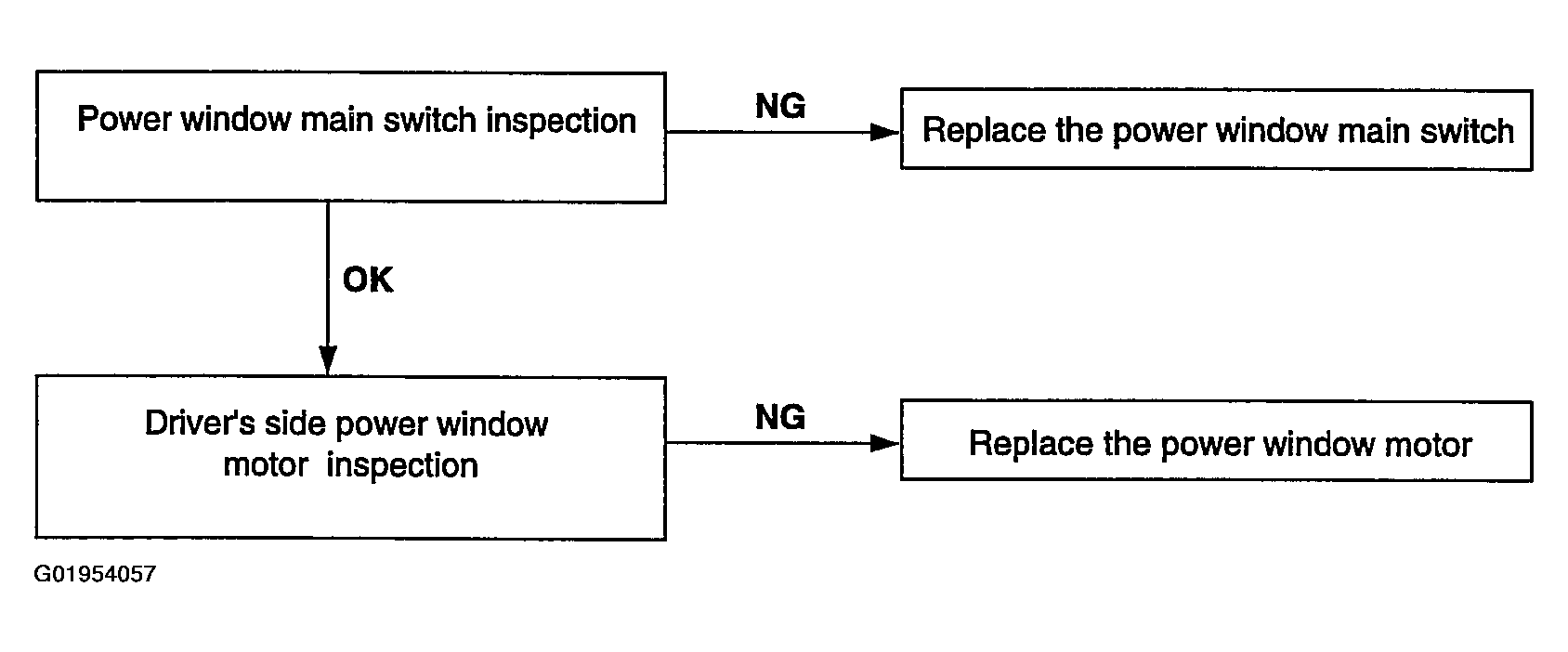

Driver's side window does not operate.
Fig 2: Driver's Side Window Does Not Operate Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.

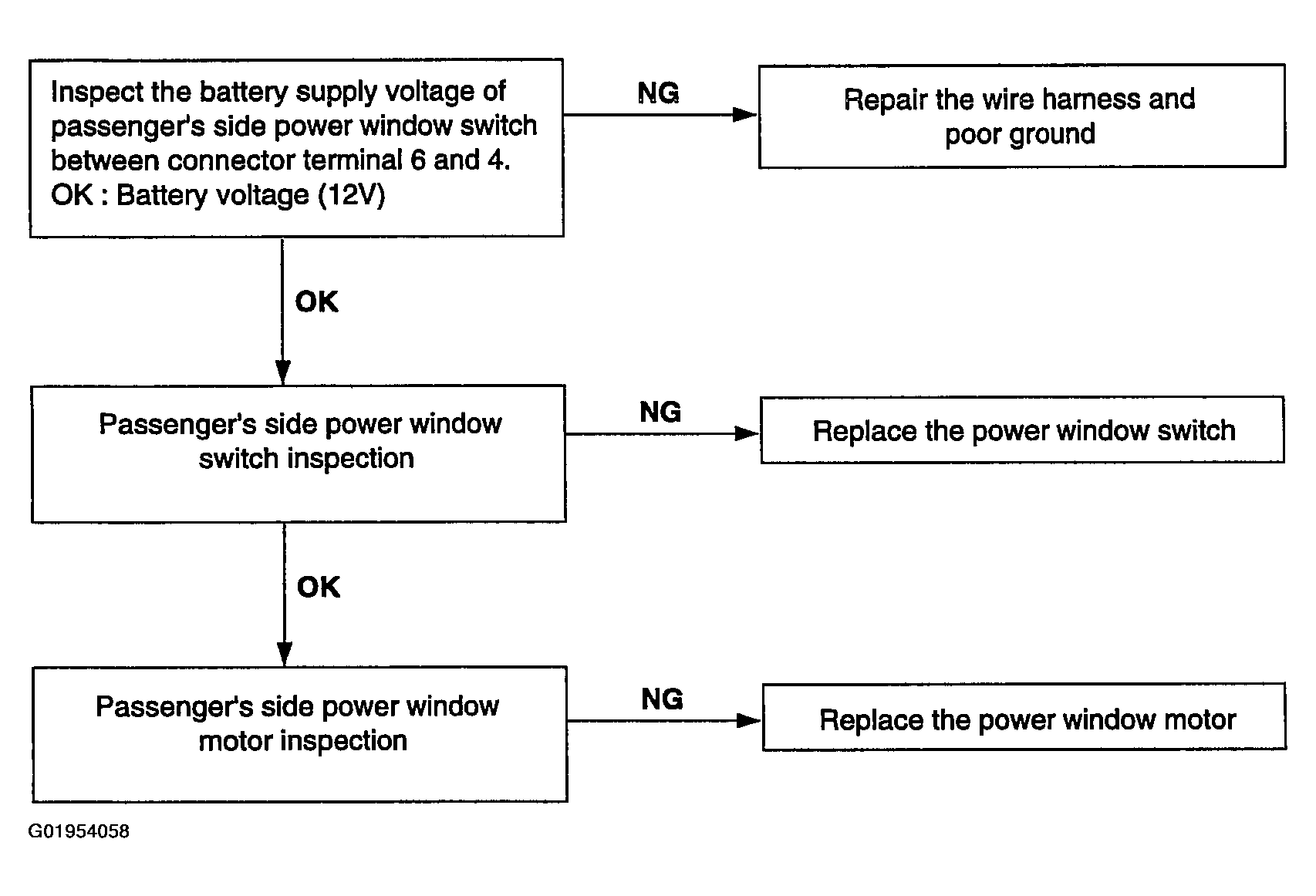

Passenger's side window does not operate.
Fig 3: Passenger's Side Window Does Not Operate Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.
