Auto Light Unit

Remove the auto light unit (A) from the center support bracket left side after removing the center facia panel and audio unit.

Fig 1: Removing The Auto Light Unit
Courtesy of KIA MOTORS AMERICA, INC.

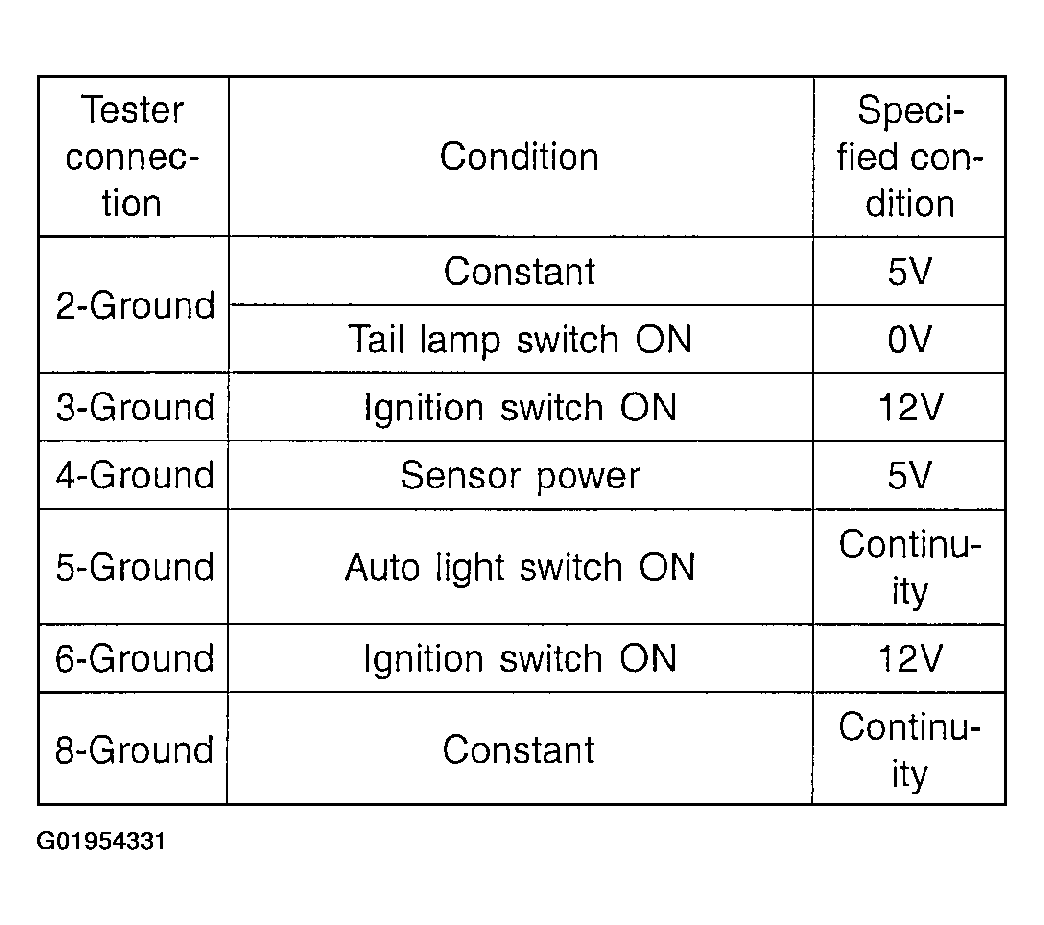

Disconnect the 8P connector (B) from the auto light unit then inspect the connector on the wire harness side, as shown in the chart.

Fig 2: Auto Light Unit Circuit Testing Chart
Courtesy of KIA MOTORS AMERICA, INC.
If the circuit is not as specified, inspect the circuits connected to other parts.
