Lower Arm: Components

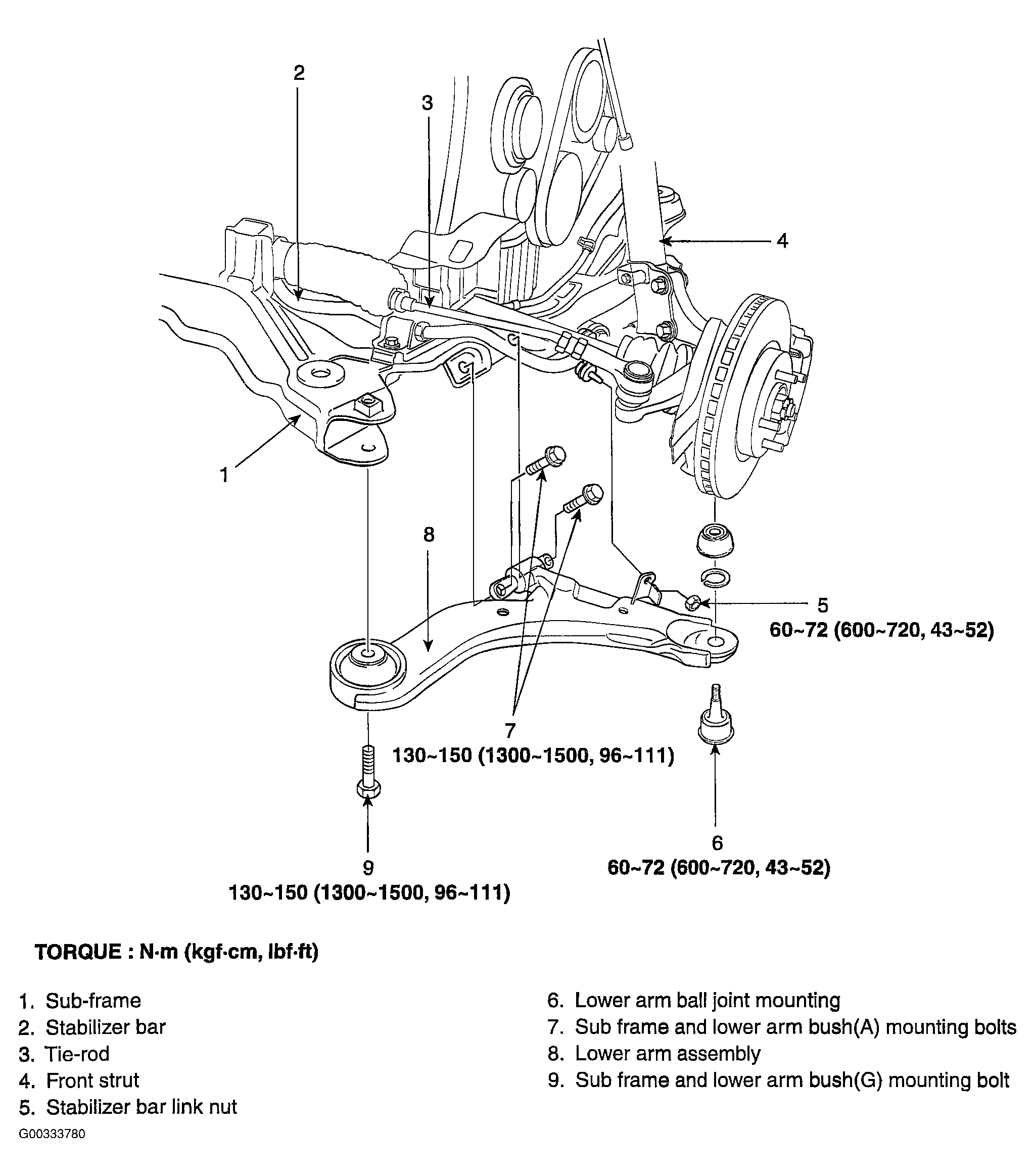

Fig 1: Identifying Lower Arm Components

G00333780

Courtesy of KIA MOTORS AMERICA, INC.
