Manual Transaxle System: Differential: Components

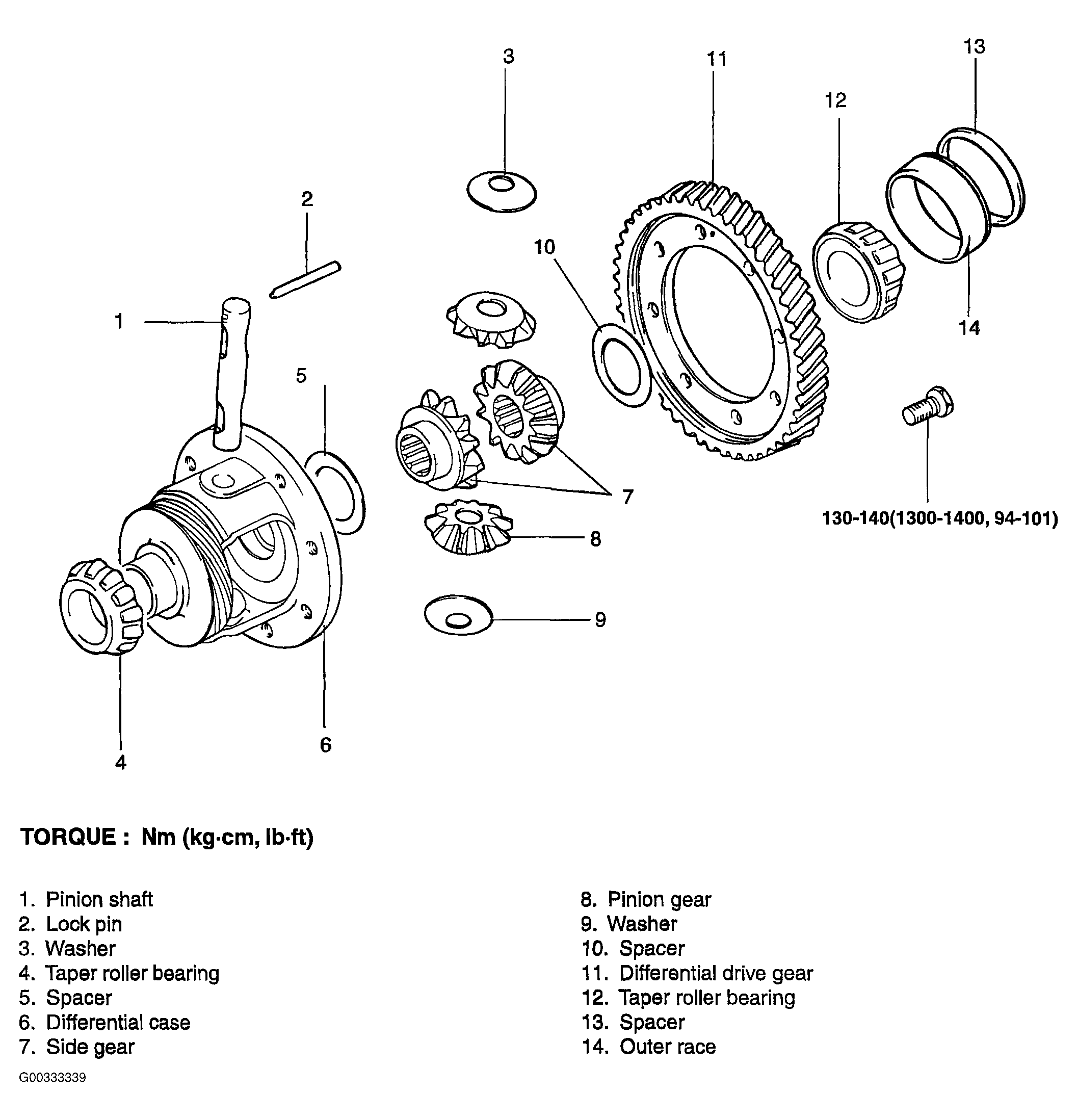

Fig 1: Exploded View Of Differential
G00333339Courtesy of KIA MOTORS AMERICA, INC.
