How To Read System Circuit Diagrams

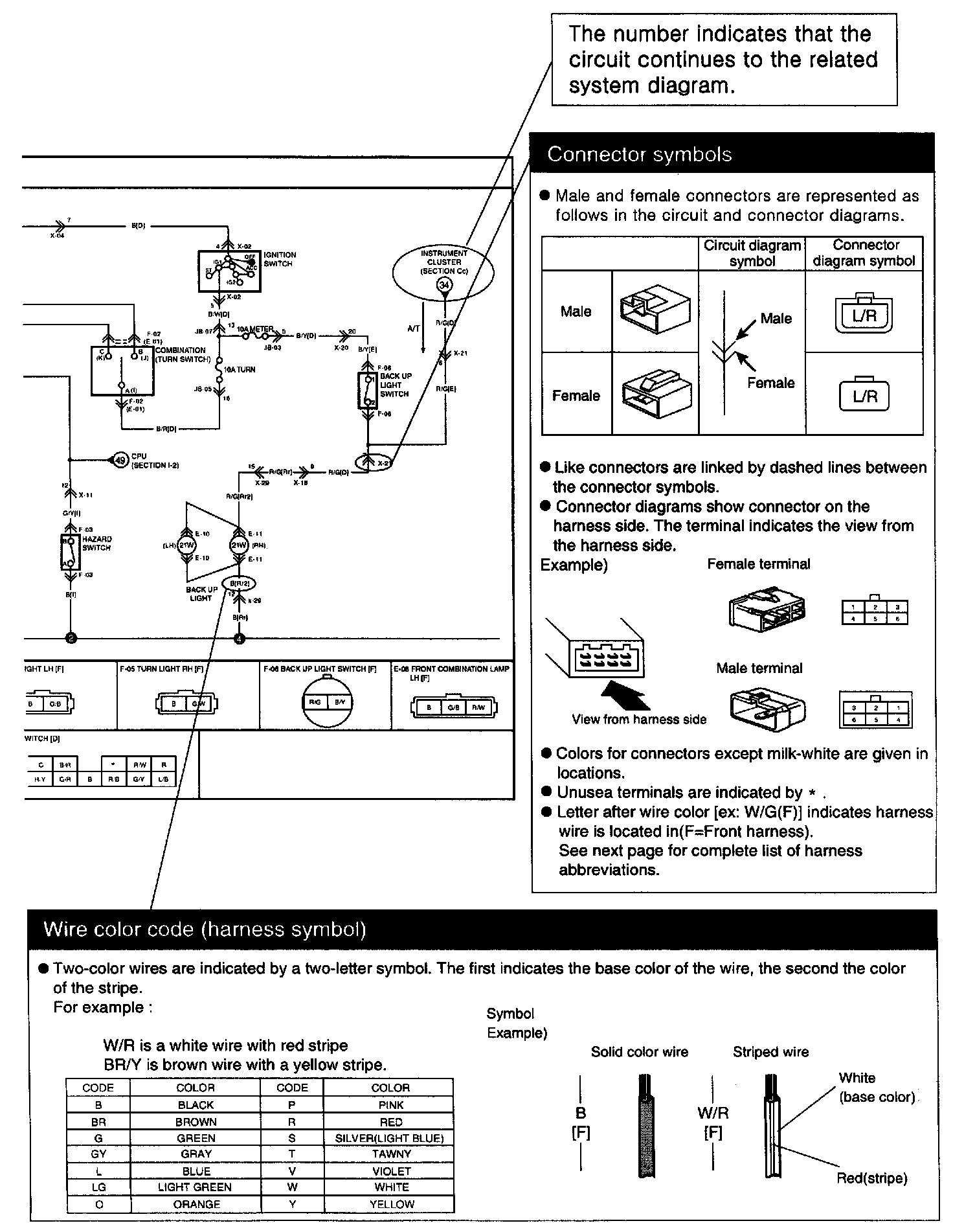

How To Read System Circuit Diagrams:

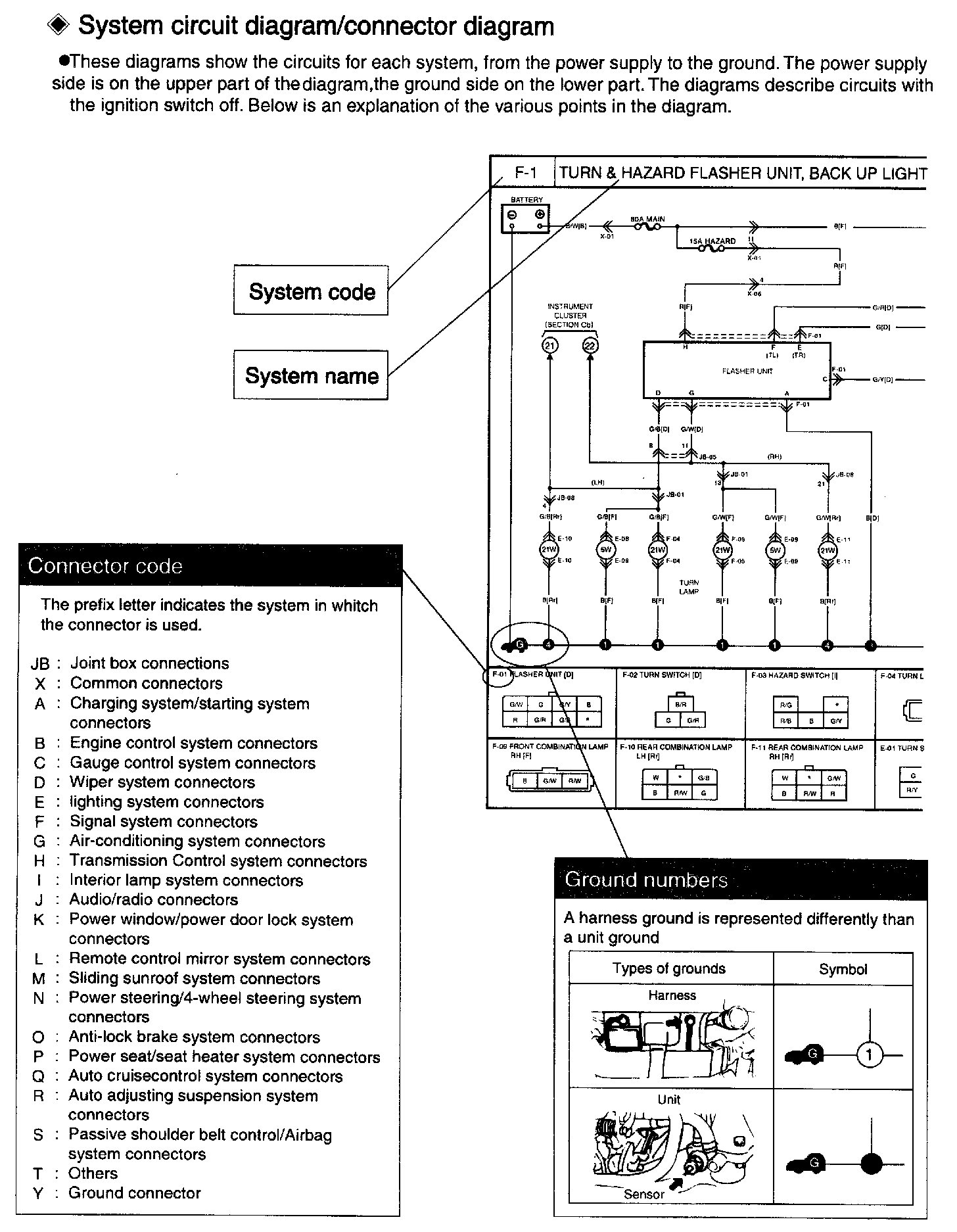

How To Read System Circuit Diagrams:
