Home >> Kia >> 2004 >> Spectra L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Components (1)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Components (1)

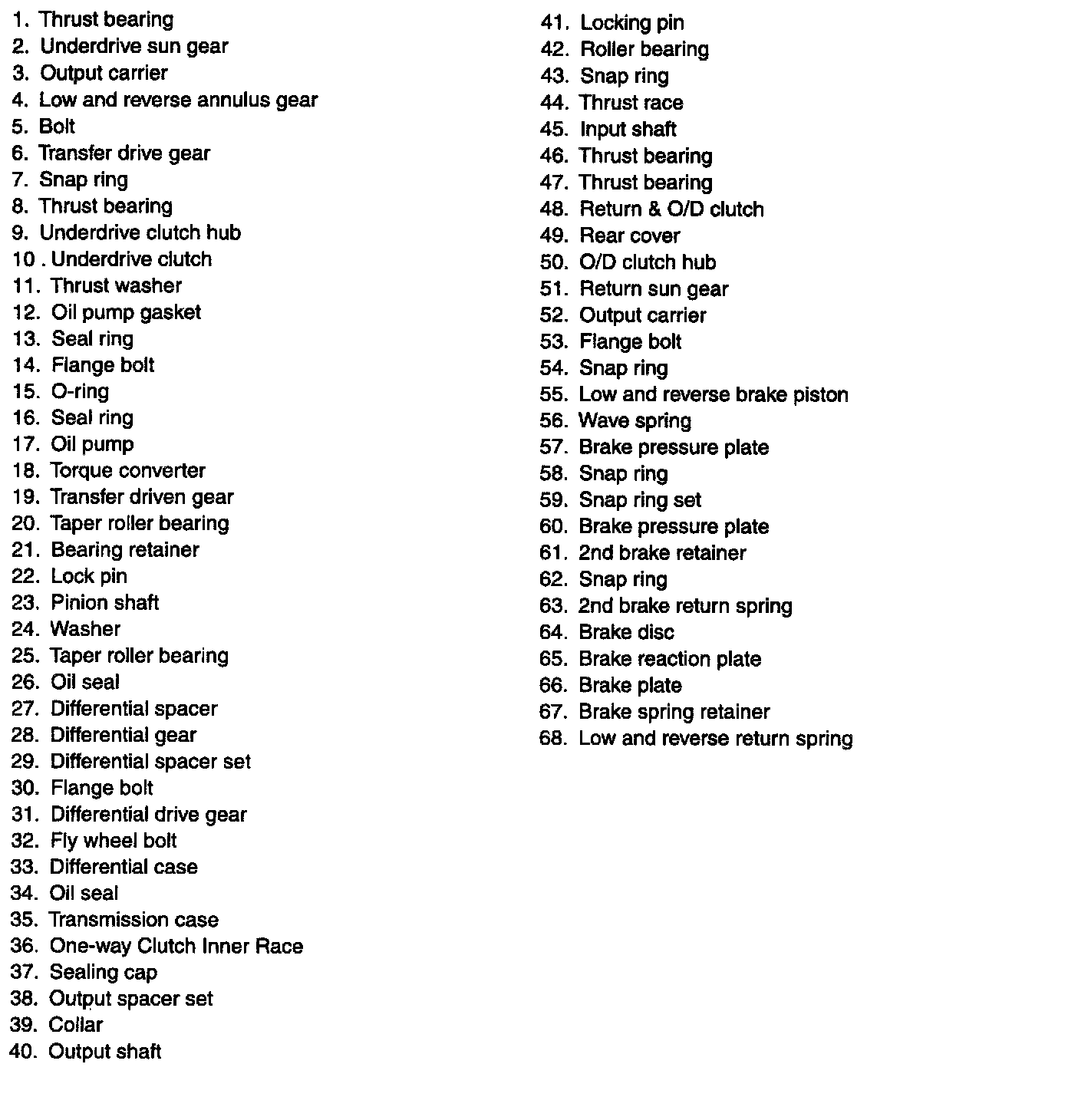

Part 1:

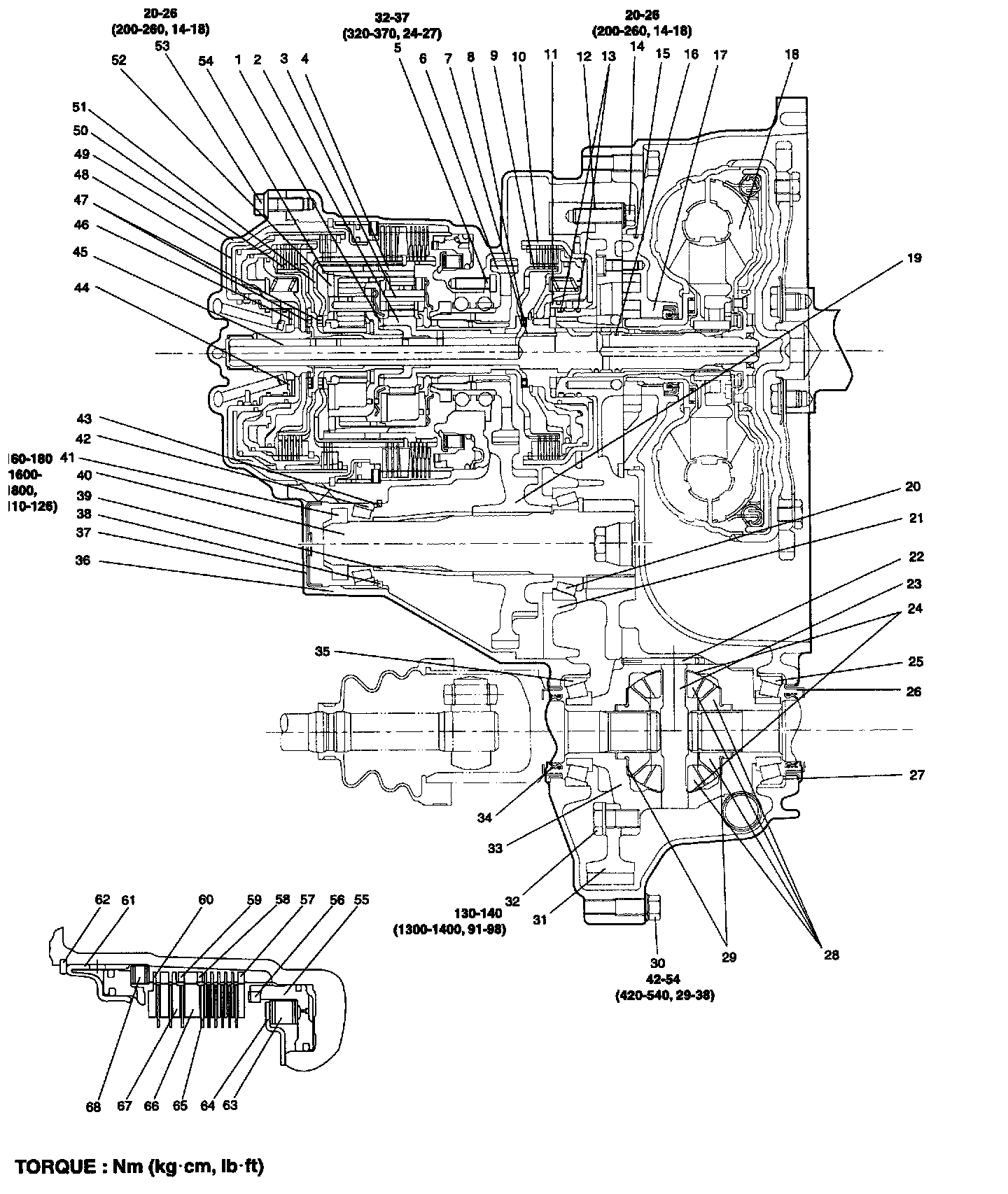

Part 2:
