Auto Light Switch

AUTO LIGHT SWITCH

INSPECTION

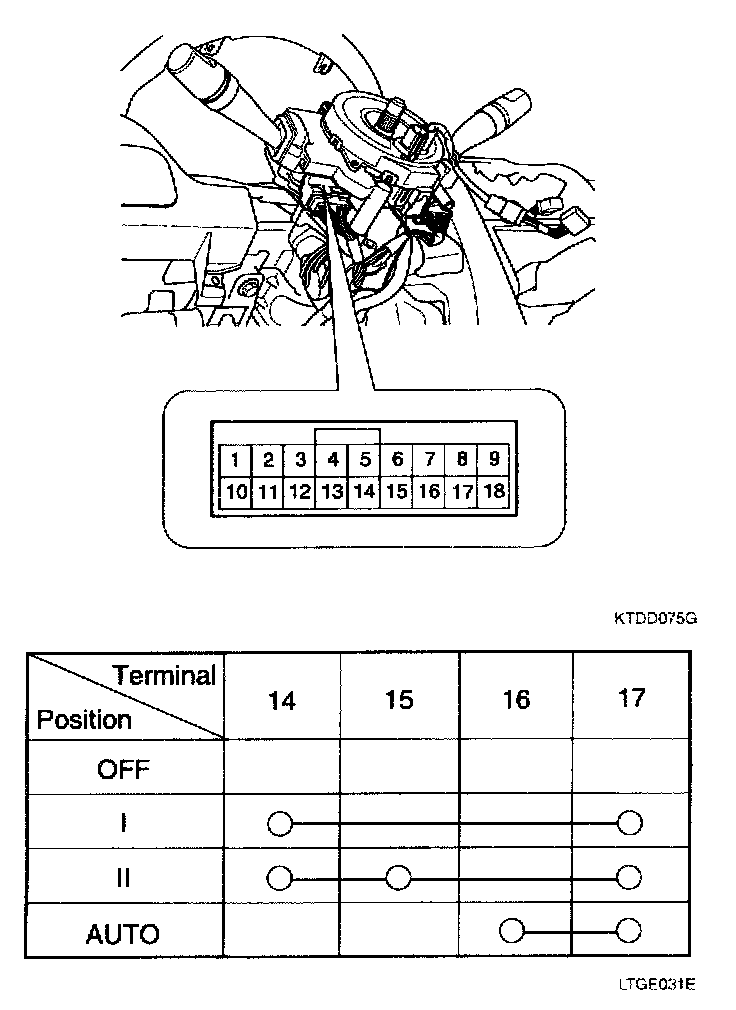

Operate the auto light switch, then check for continuity between terminals of 18P multi-function switch connector.
