System Specifications

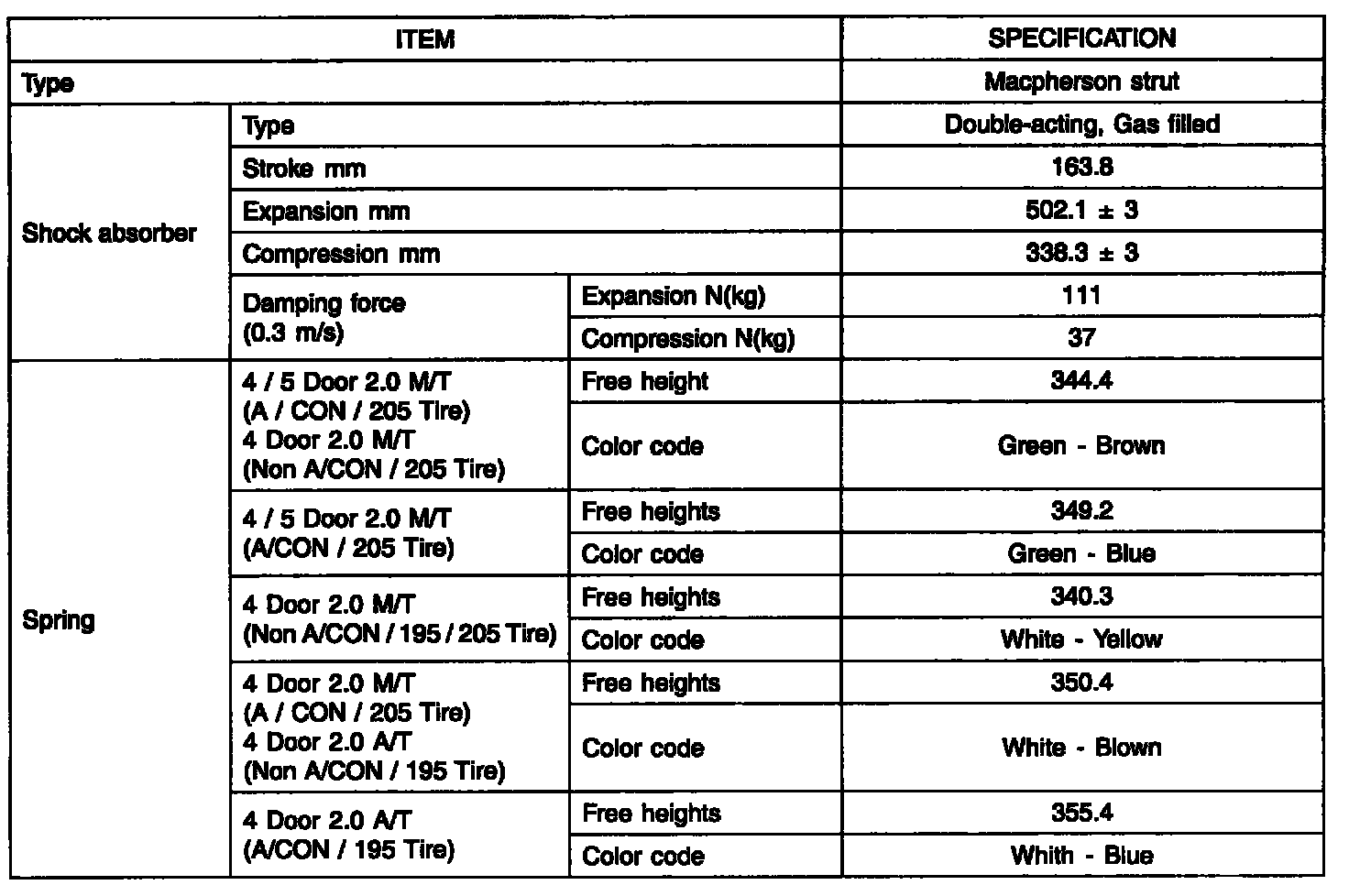

Front Suspension:

Rear Ssupension:

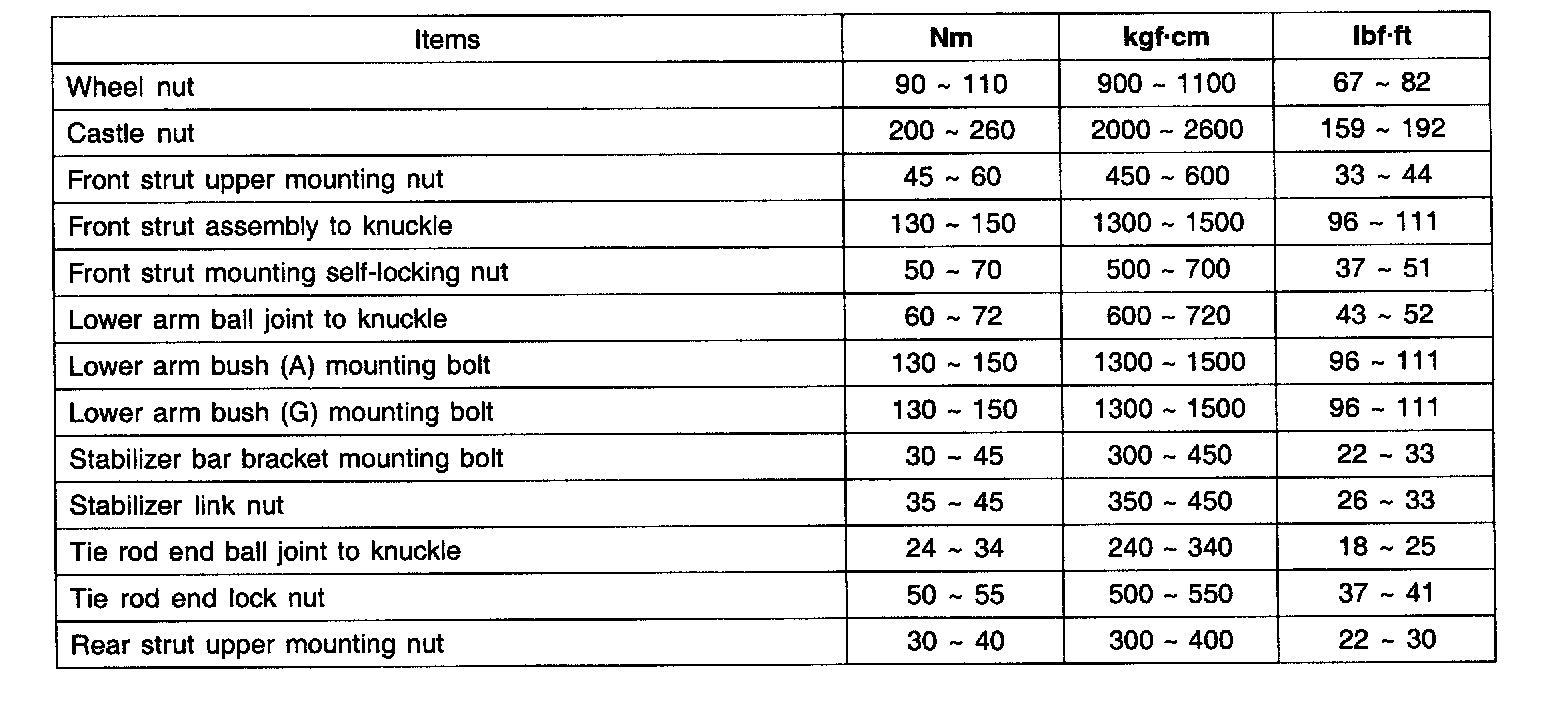

Tightening Torque Part 1:

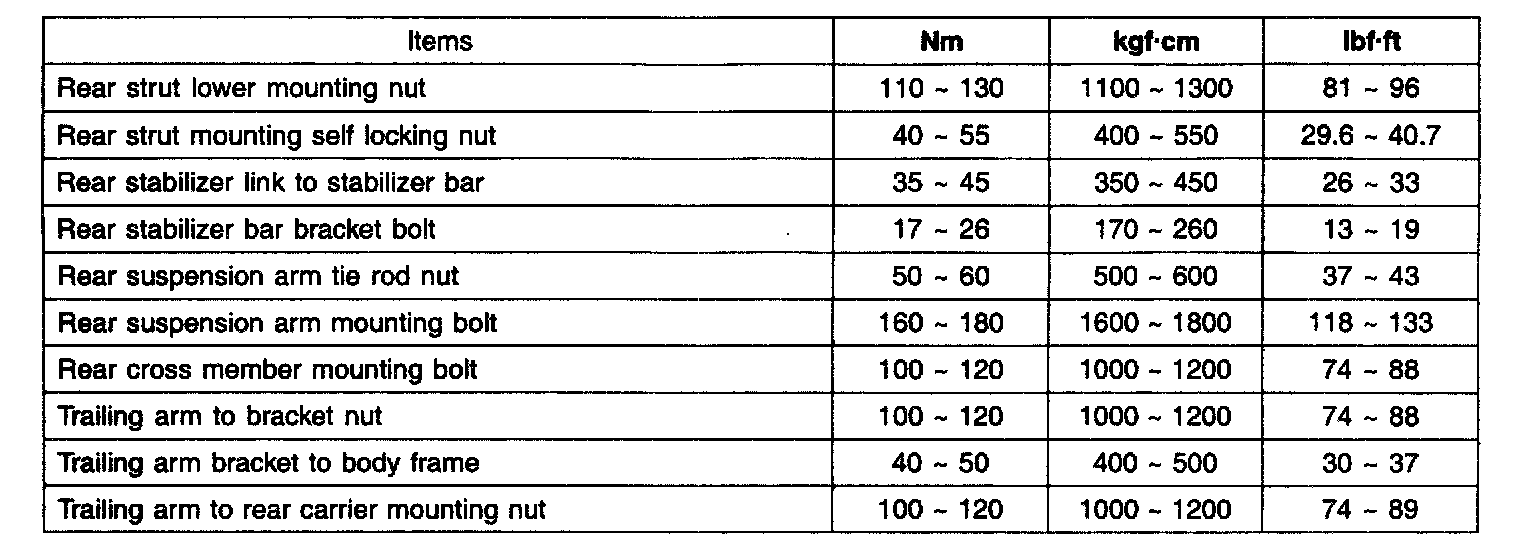

Tightening Torque Part 2:
