Transfer Drive Gear: Disassembly

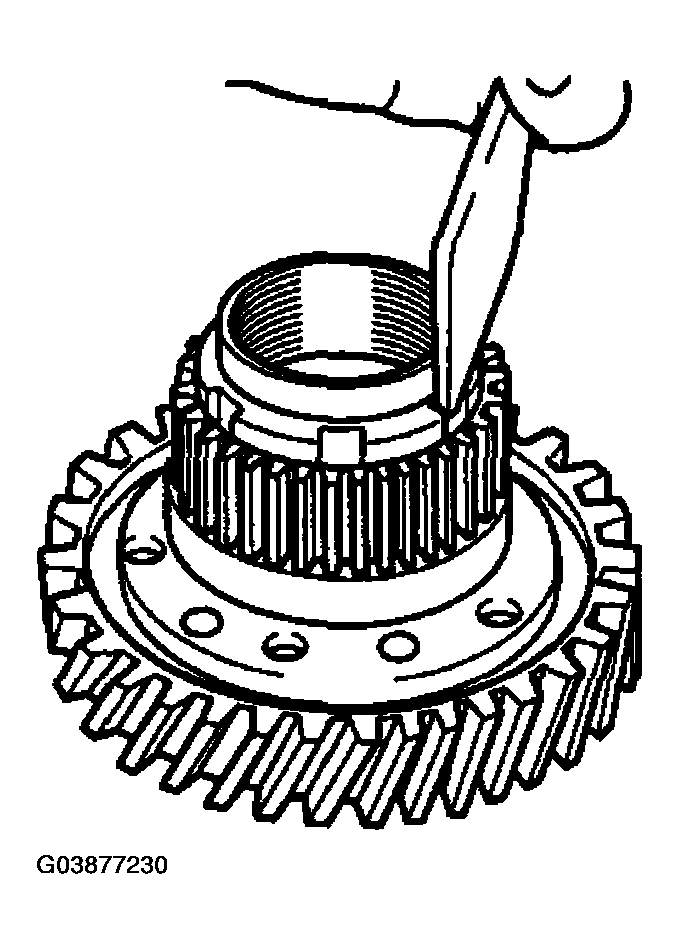

  1. Cock the lock nut only enough to turn.
    Fig 1: Identifying Cock Lock Nut Only Enough Turn
    G03877230Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the output gear and the parking brake gear using the special tool(09457 - 39000).
    Fig 2: Removing Output Gear And Parking Brake Gear
    G03877231Courtesy of KIA MOTORS AMERICA, INC.
