UNDERDRIVE Clutch: Components

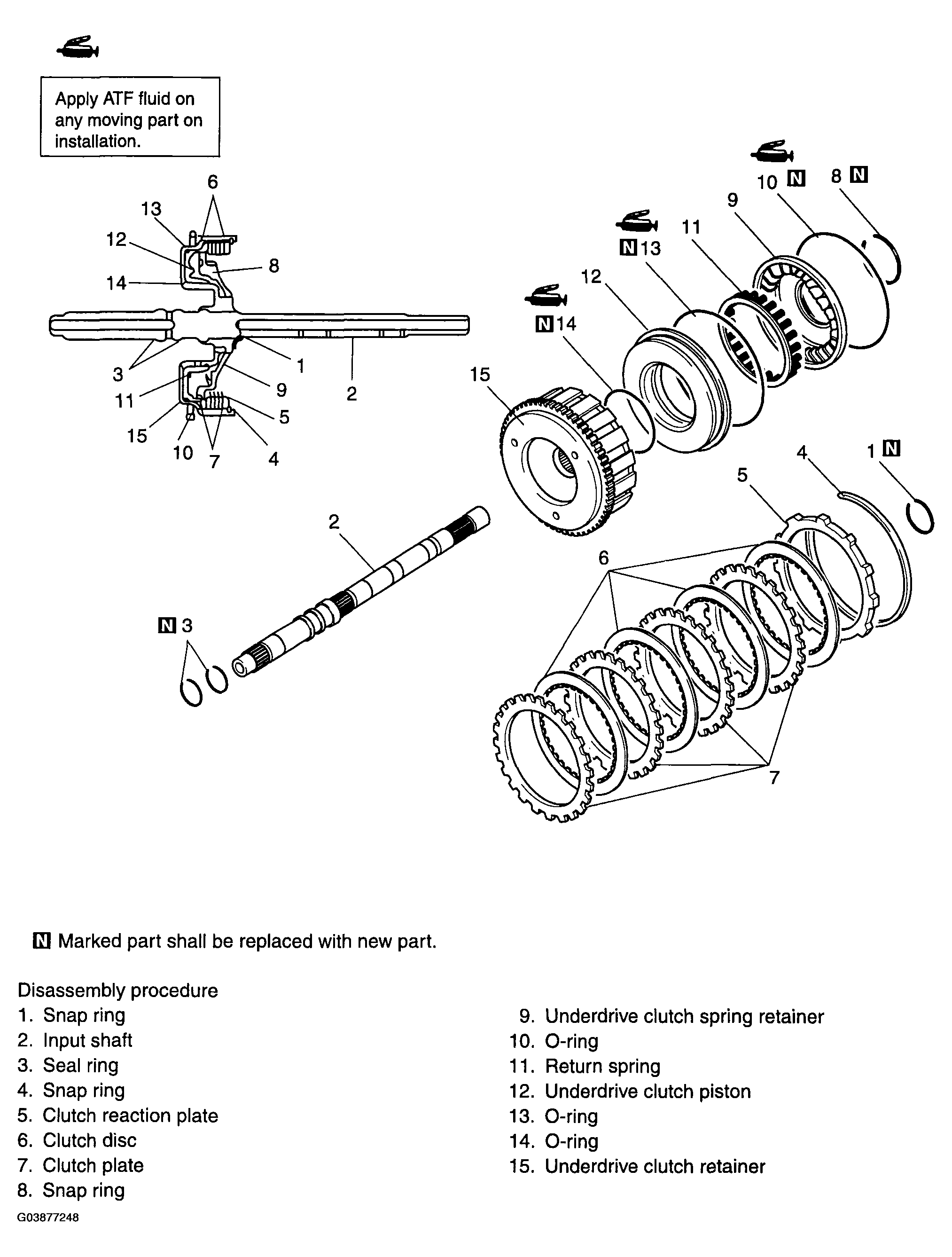

Fig 1: Exploded View Of Underdrive Clutch Components
G03877248Courtesy of KIA MOTORS AMERICA, INC.
