Components Location

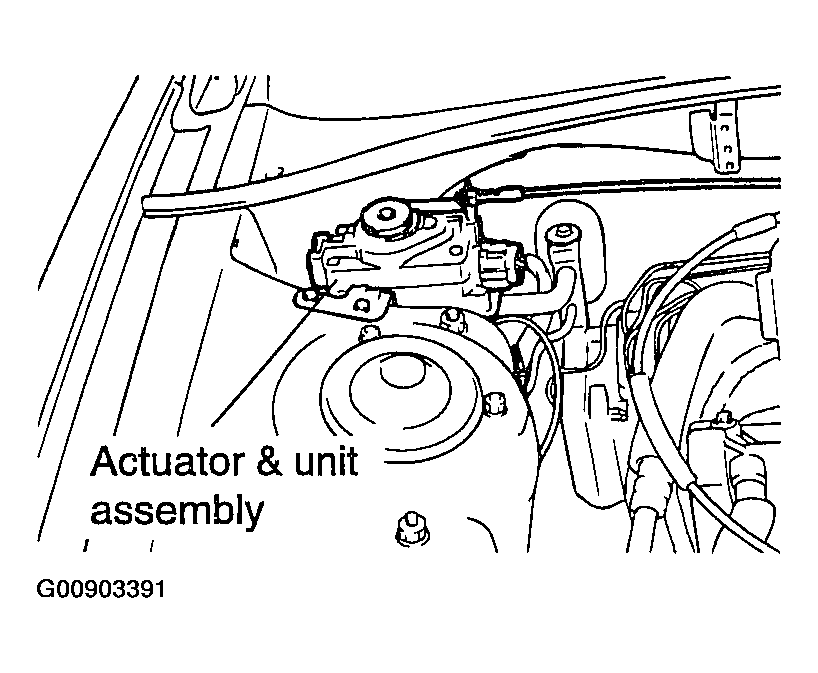

Fig 1: Locating Actuator & Unit Assembly

G00903391

Courtesy of KIA MOTORS AMERICA, INC.

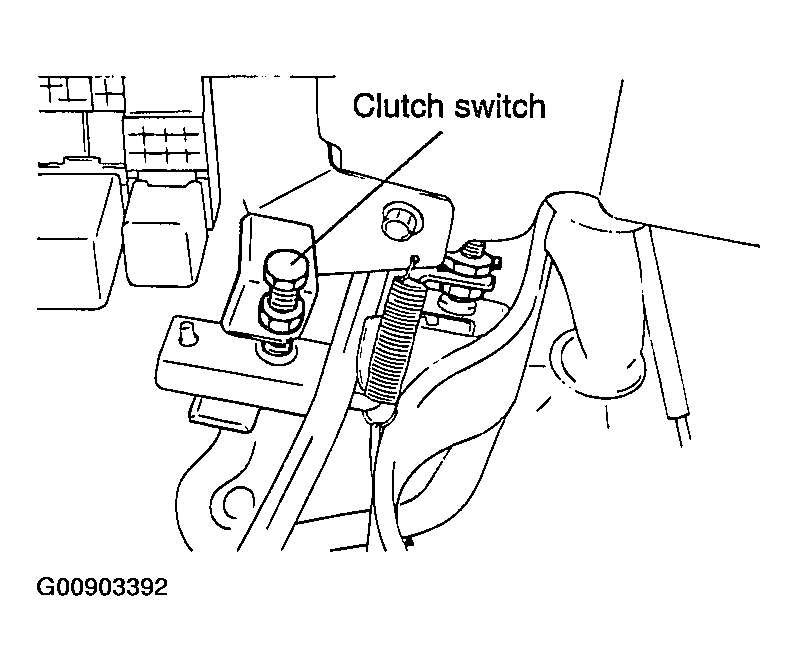

Fig 2: Locating Clutch Switch

G00903392

Courtesy of KIA MOTORS AMERICA, INC.

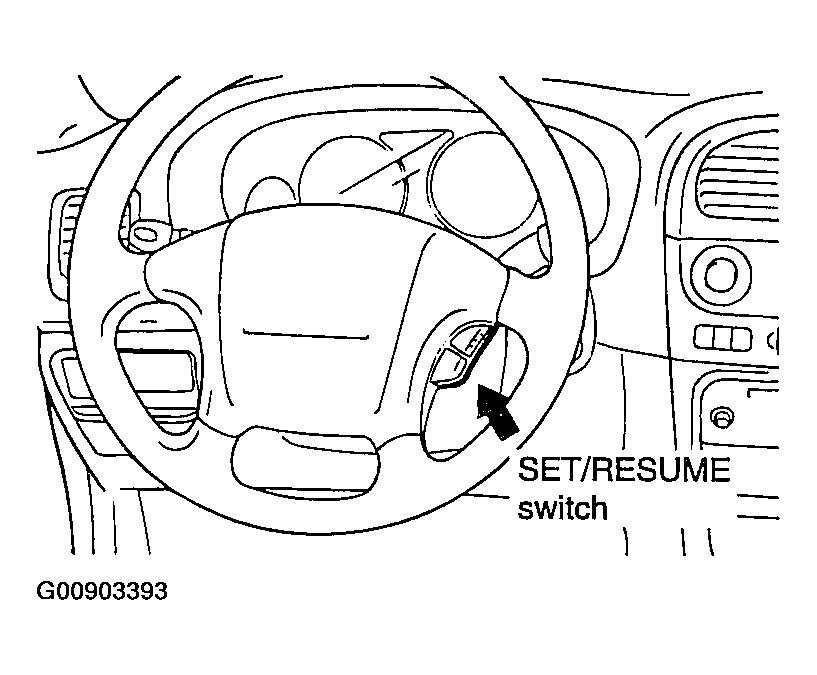

Fig 3: Locating SET/RESUME Switch

G00903393

Courtesy of KIA MOTORS AMERICA, INC.

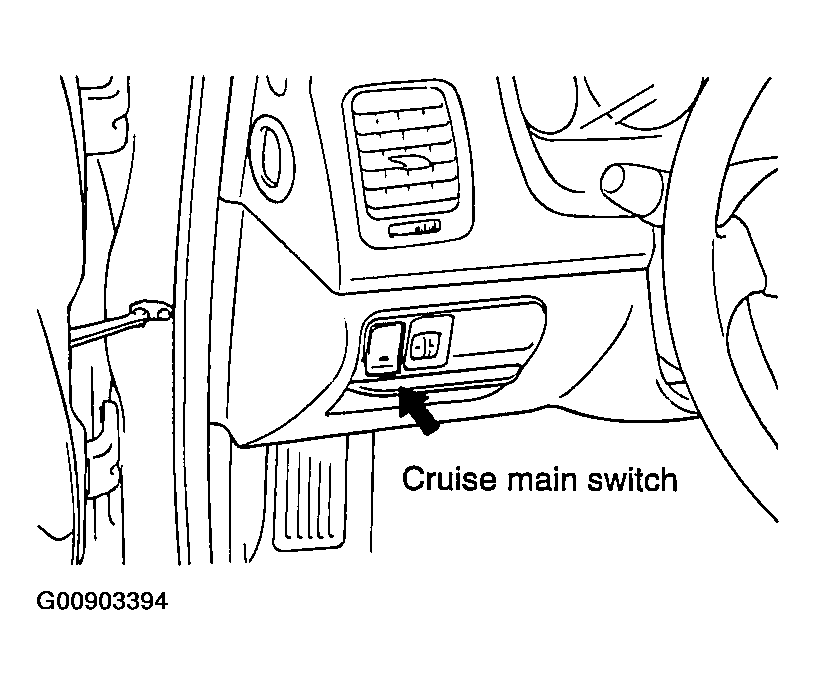

Fig 4: Locating Cruise Main Switch

G00903394

Courtesy of KIA MOTORS AMERICA, INC.

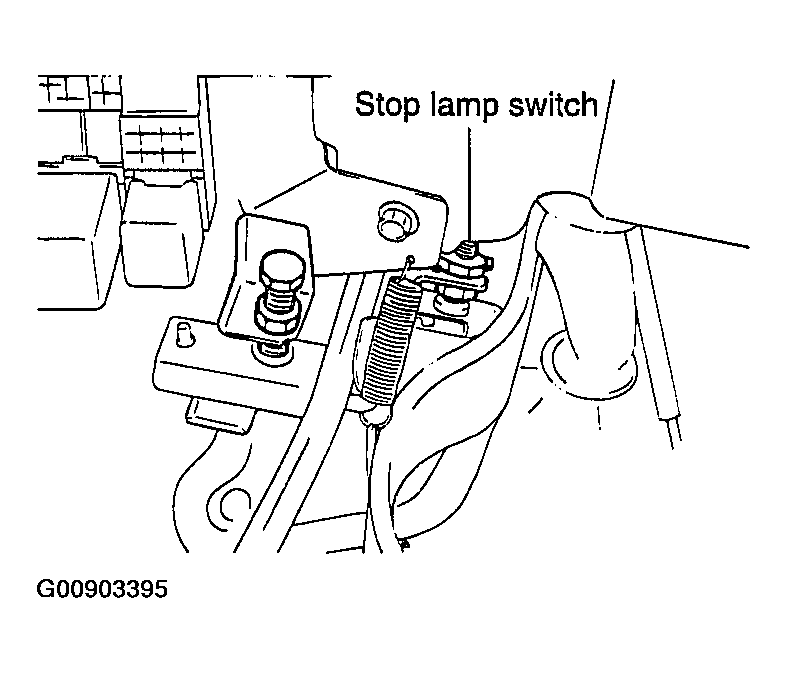

Fig 5: Locating Stop Lamp Switch

G00903395

Courtesy of KIA MOTORS AMERICA, INC.

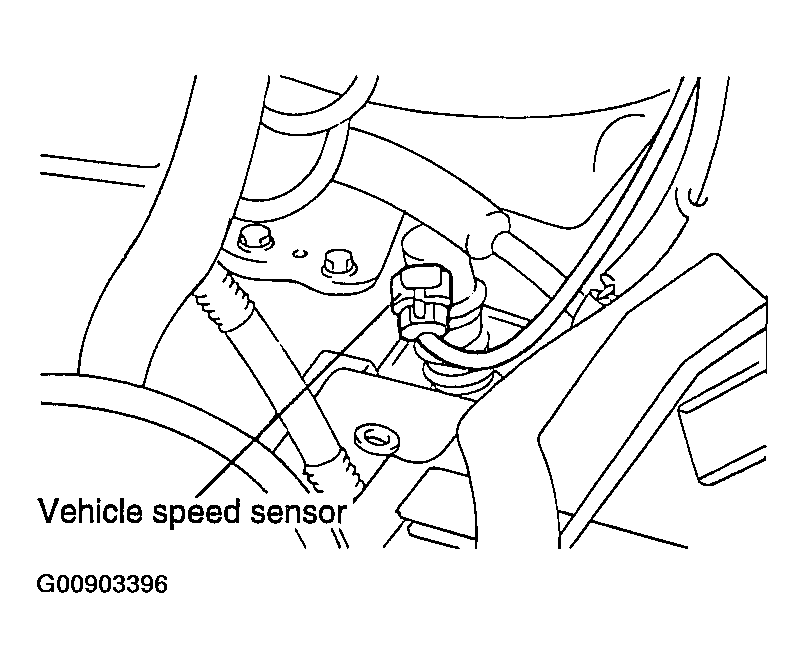

Fig 6: Locating Vehicle Speed Sensor

G00903396

Courtesy of KIA MOTORS AMERICA, INC.
