Optima EX, 2.4 6
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System/Fuel System - 2.4L (A/T)
>>
MFI Control System
>>
HEATED OXYGEN SENSOR (HO2S) - ZIRCONIA (ZrO )
>>
Circuit Diagram (Ho2S)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram (Ho2S)

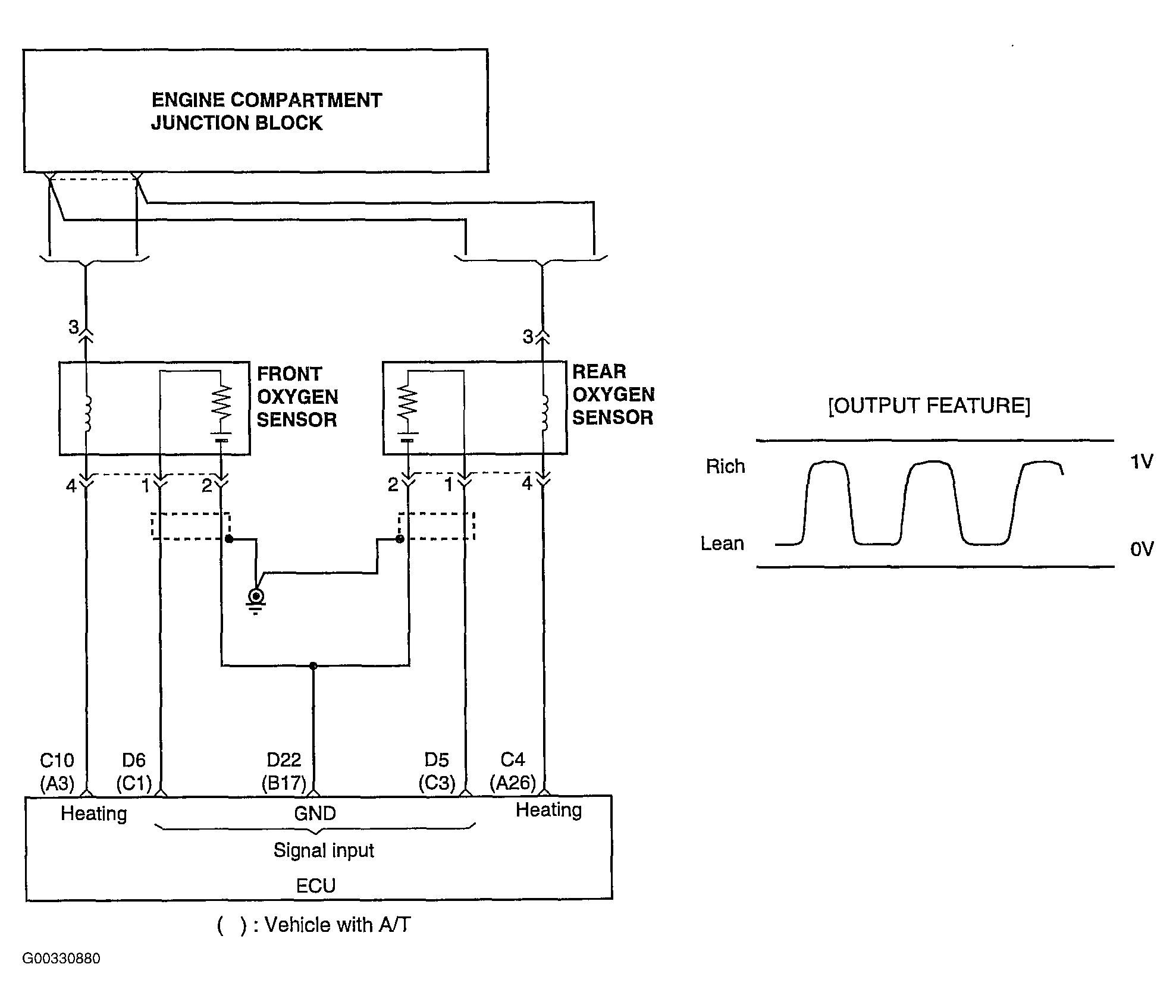

Fig 1: Identifying Heated Oxygen Sensor (HO2S) Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
