Charging Systems: Generator: Removal

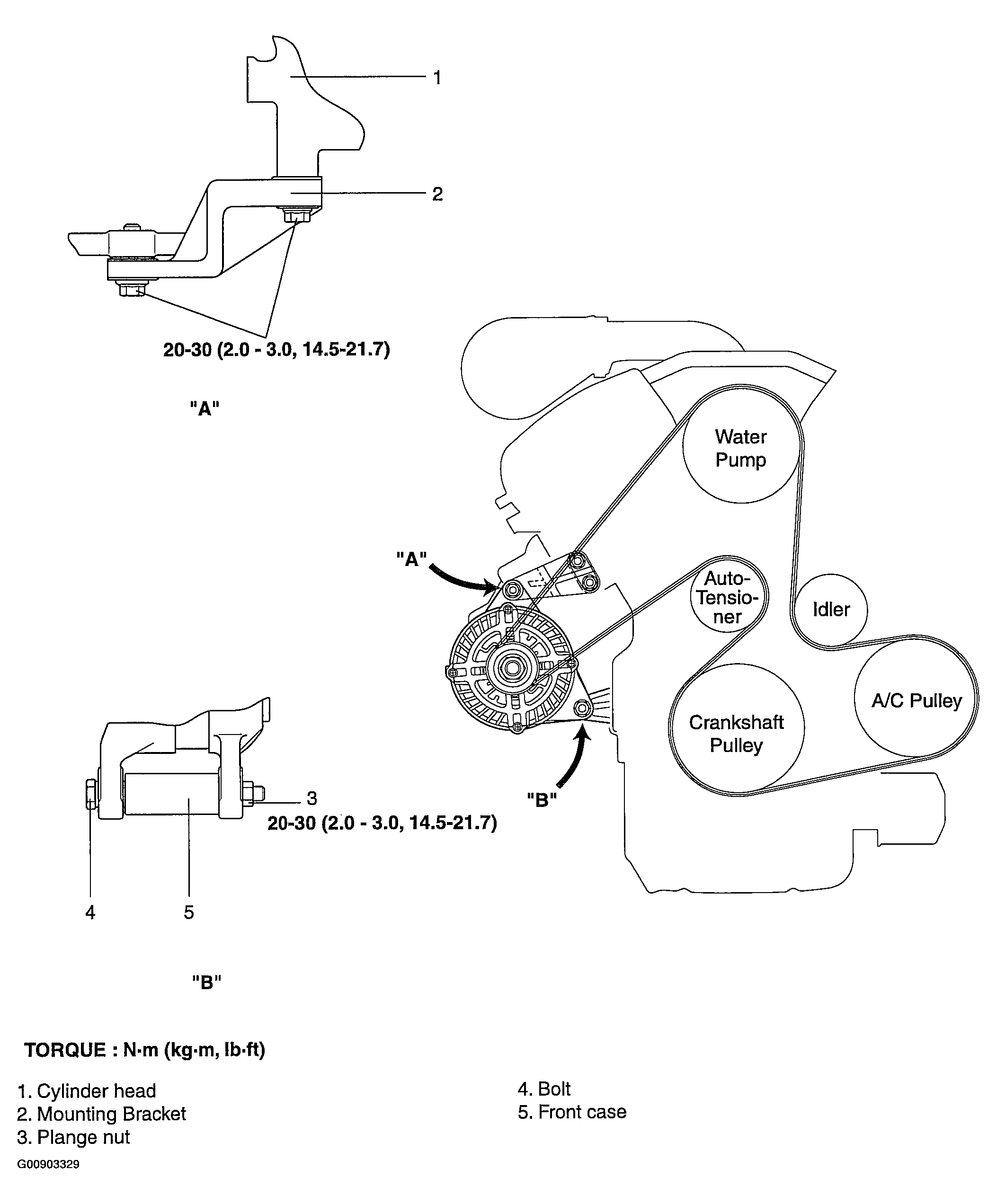

Fig 1: Removing & Installing Generator (2.7L)
G00903329Courtesy of KIA MOTORS AMERICA, INC.

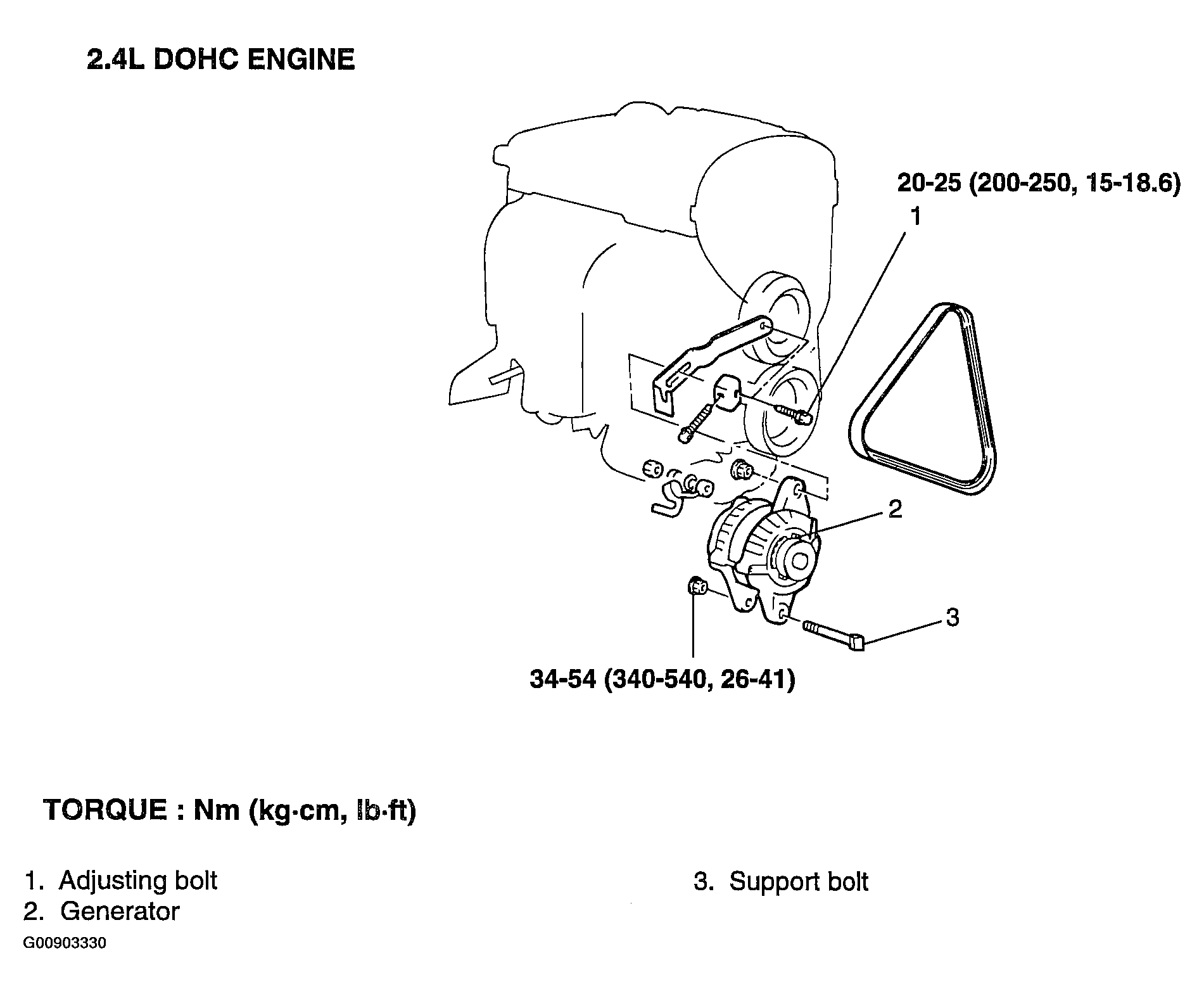

Fig 2: Removing & Installing Generator (2.4L)
G00903330Courtesy of KIA MOTORS AMERICA, INC.
