Emission Control Diagram

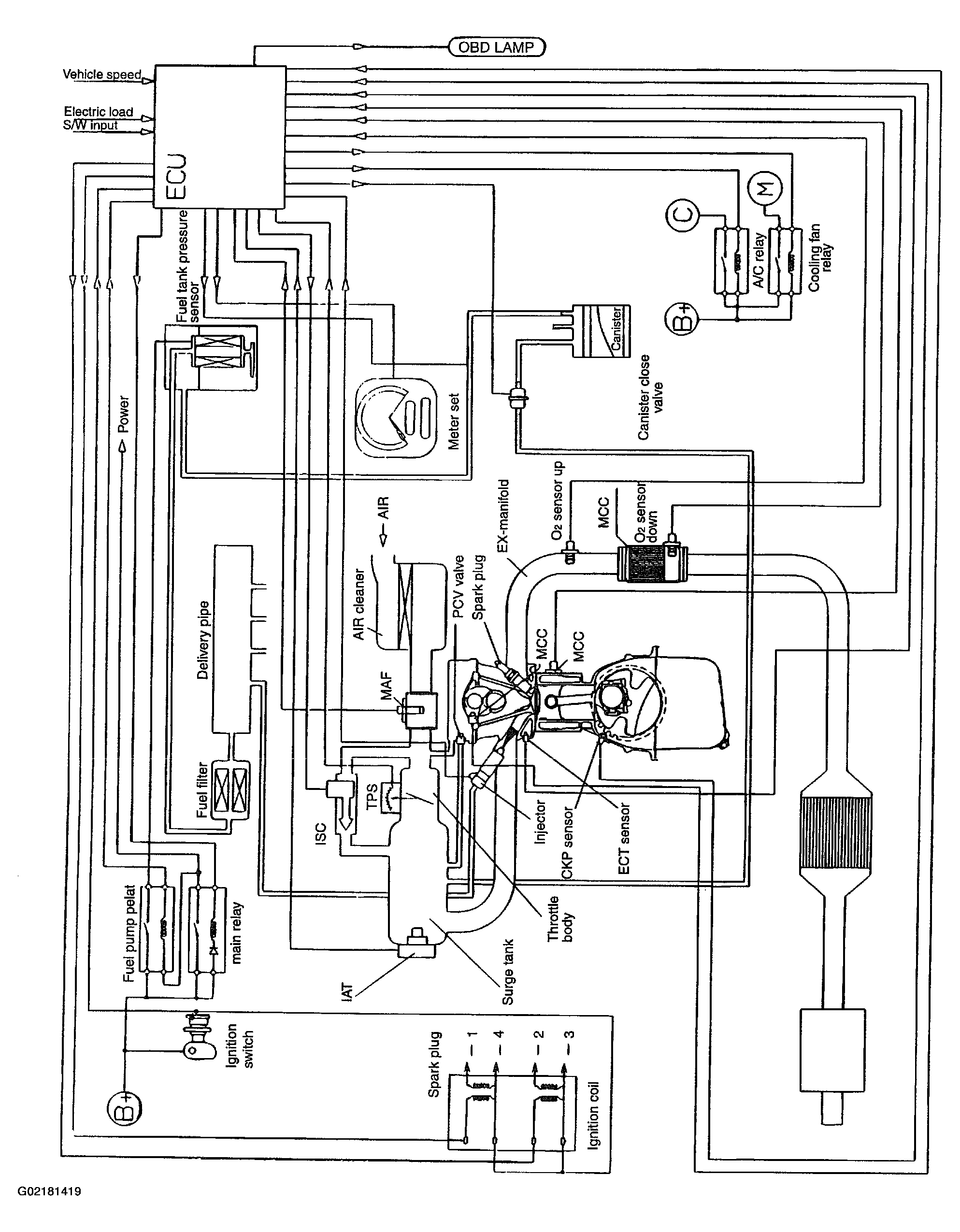

Fig 1: Emission Control Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
