Rough Idling/Engine Stops While Idling (Always)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Rough Idling/Engine Stops While Idling (Always)

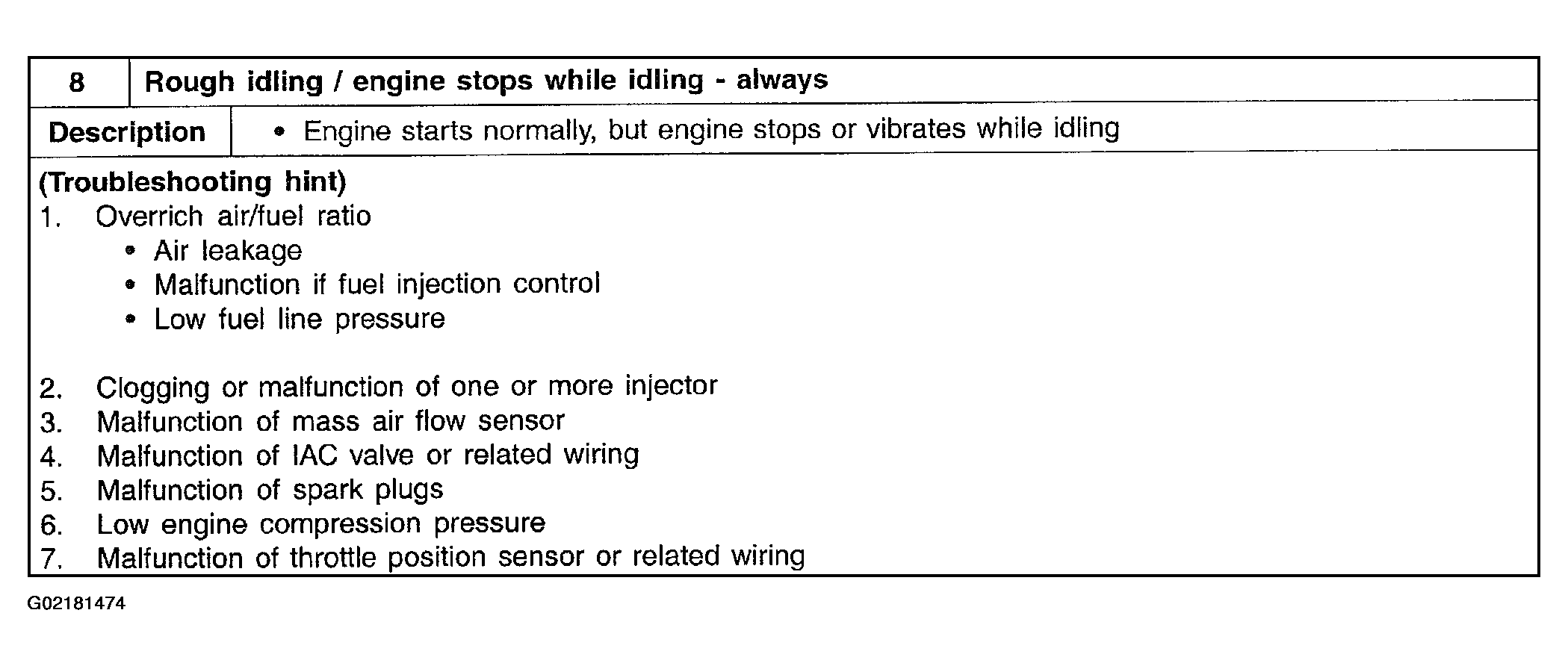

Fig 1: Description
Courtesy of KIA MOTORS AMERICA, INC.

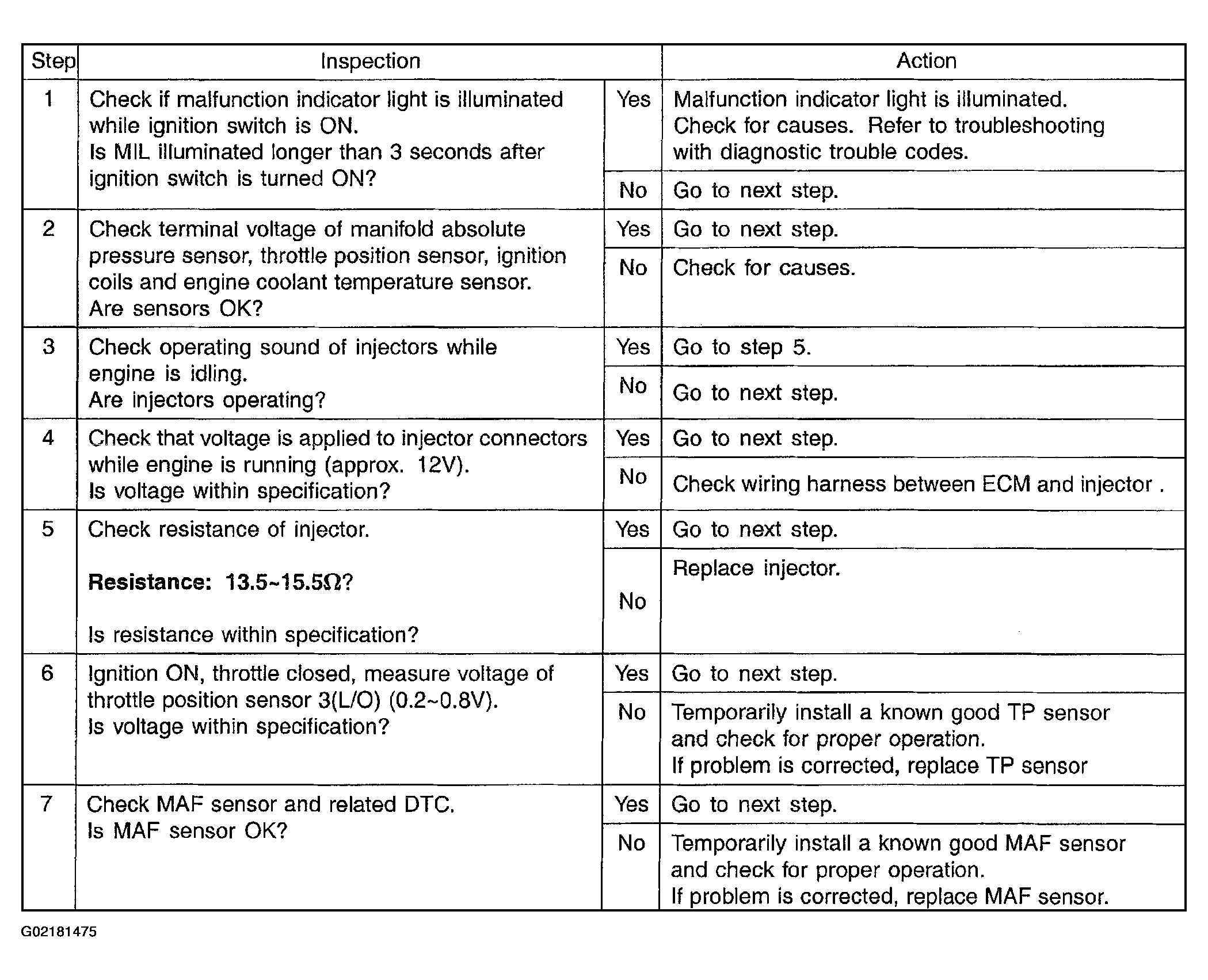

Fig 2: Inspection/Action Chart (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

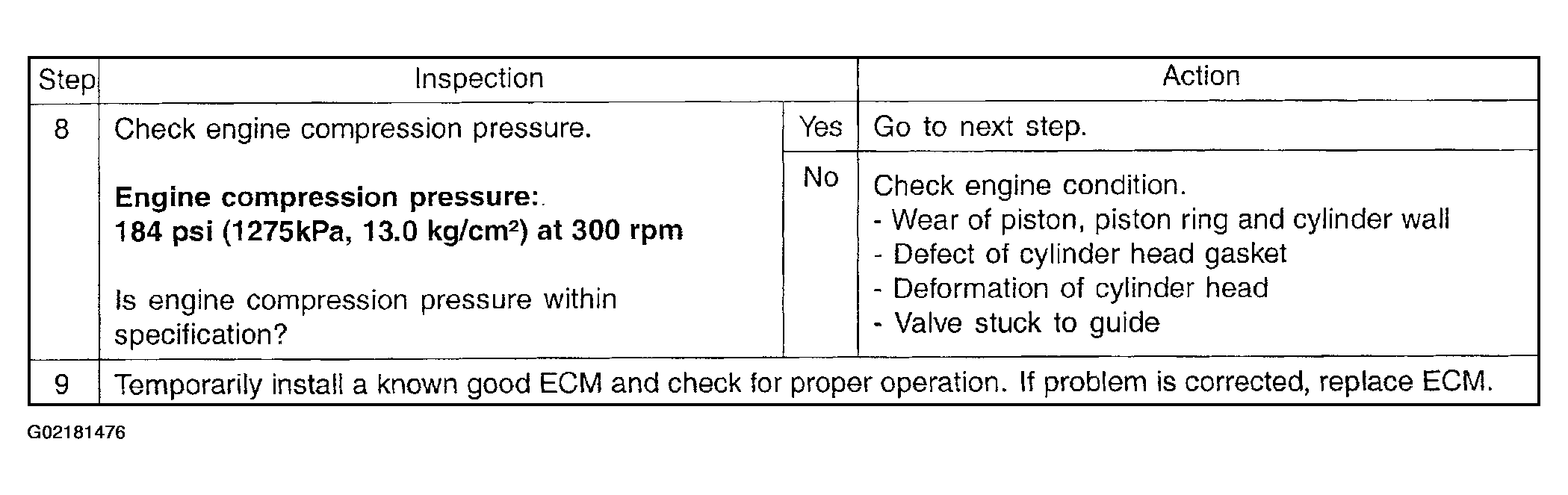

Fig 3: Inspection/Action Chart (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
