Retainer Lock

Insert the retainer lock by pressing down the valve spring with special tool (09222-28000).

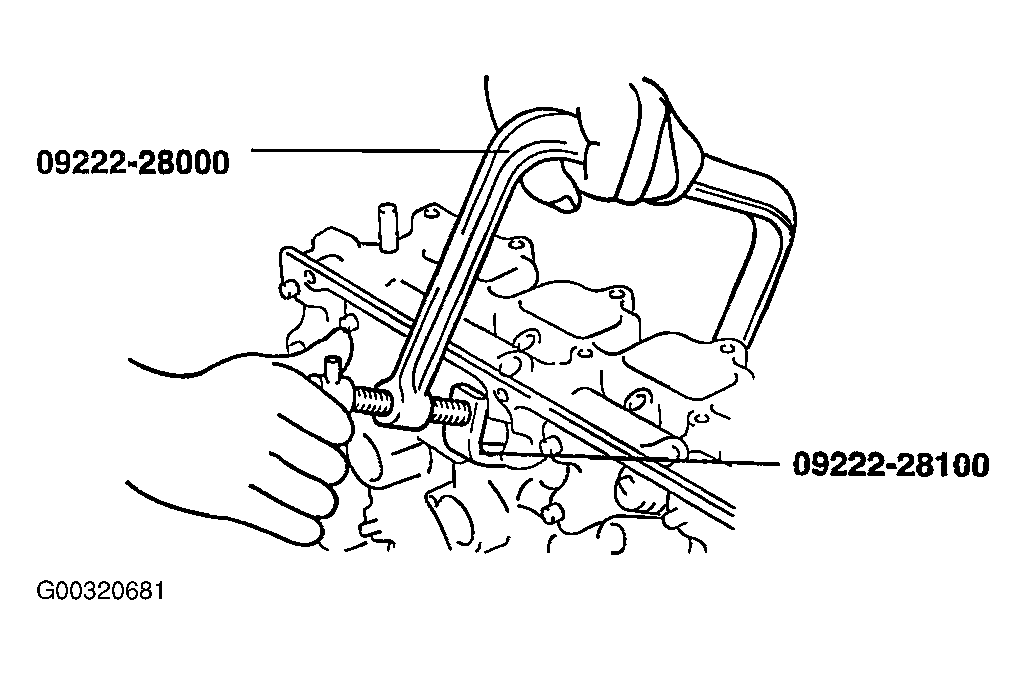

Fig 1: Inserting Retainer Lock
G00320681Courtesy of KIA MOTORS AMERICA, INC.
