Diagnosis Sheet Example

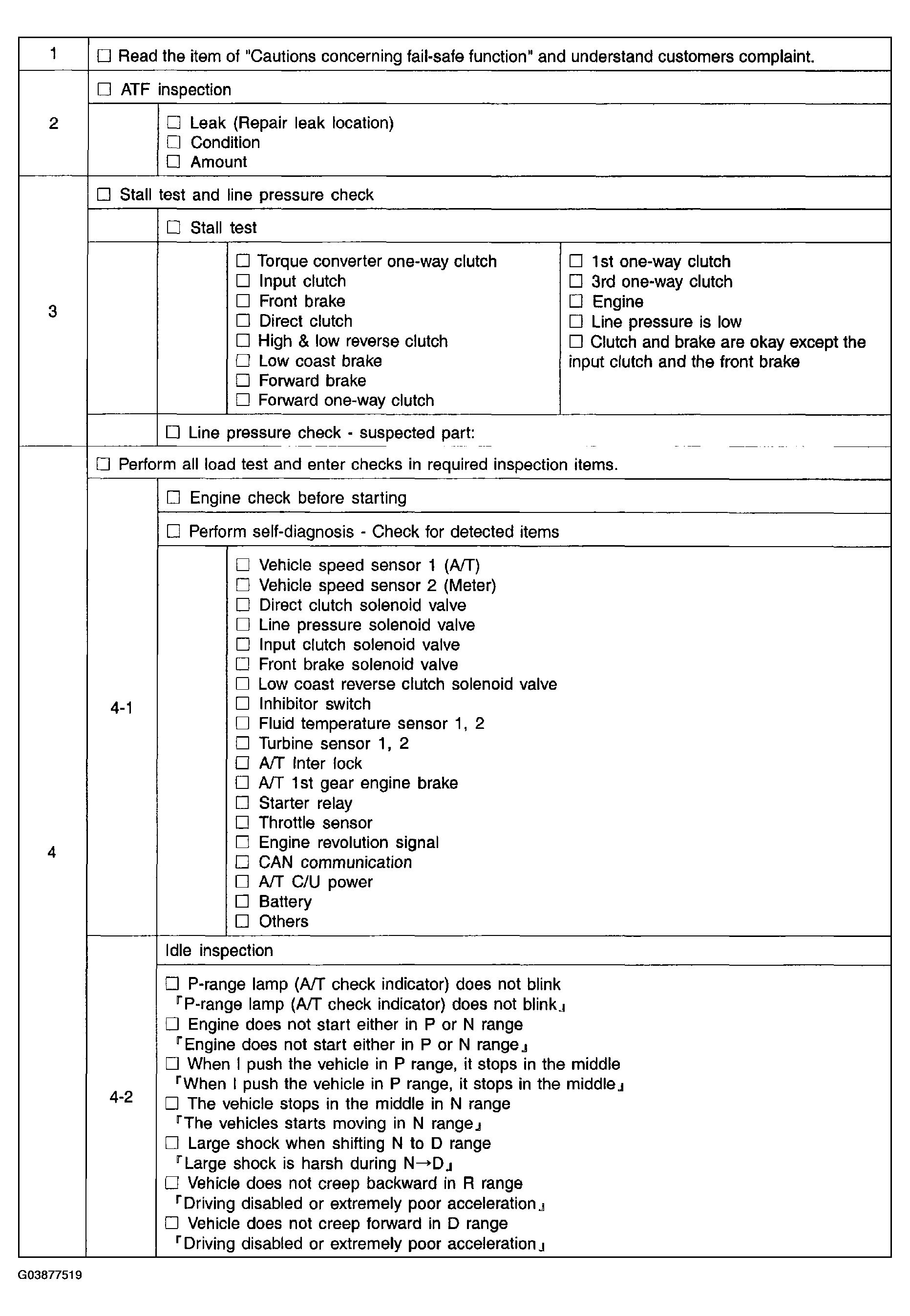

Fig 1: Diagnosis Sheet (1 Of 2)
G03877519Courtesy of KIA MOTORS AMERICA, INC.

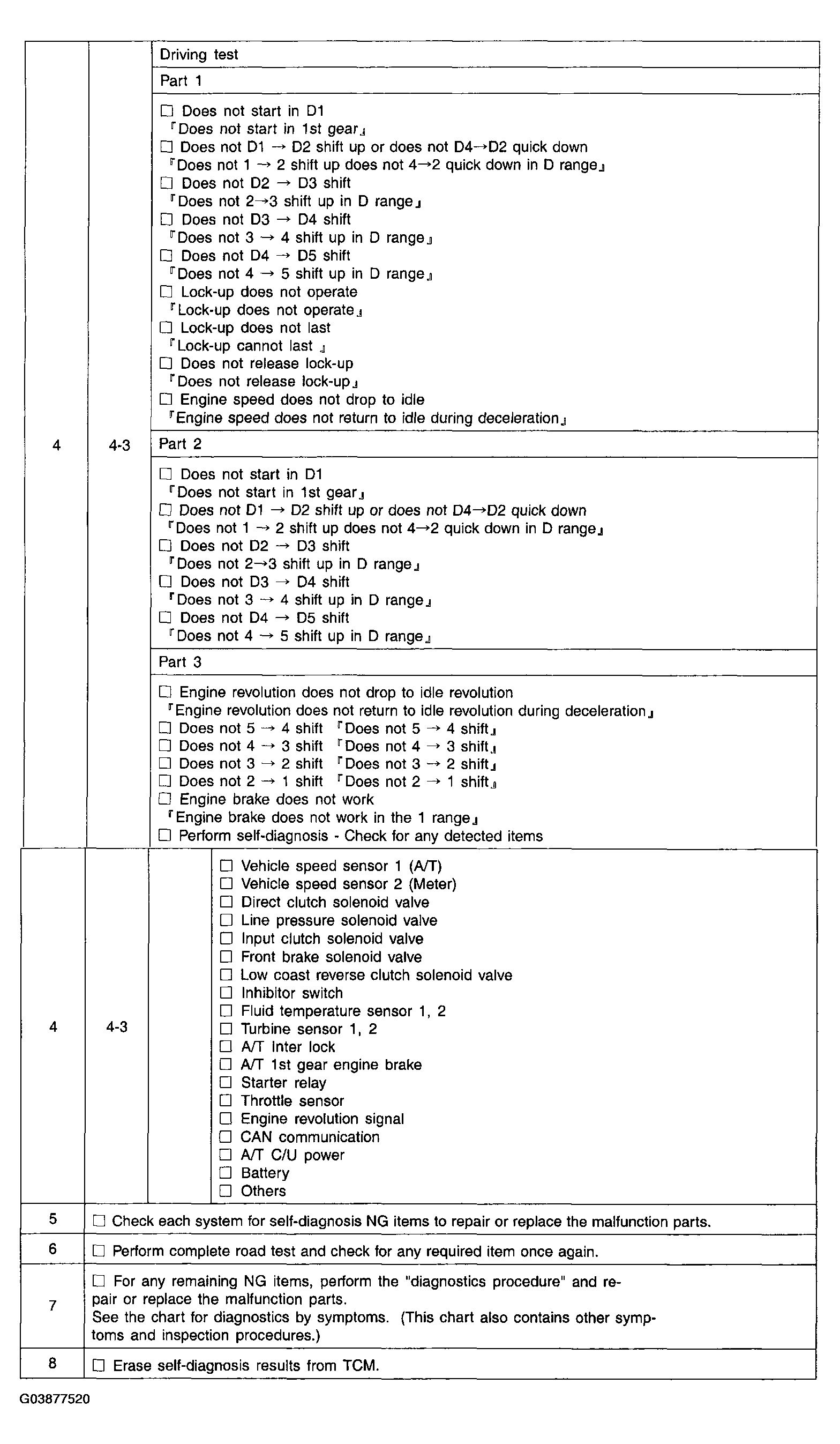

Fig 2: Diagnosis Sheet (2 Of 2)
G03877520Courtesy of KIA MOTORS AMERICA, INC.
