Valve Body Fluid Pressure Circuit Diagrams: Notes

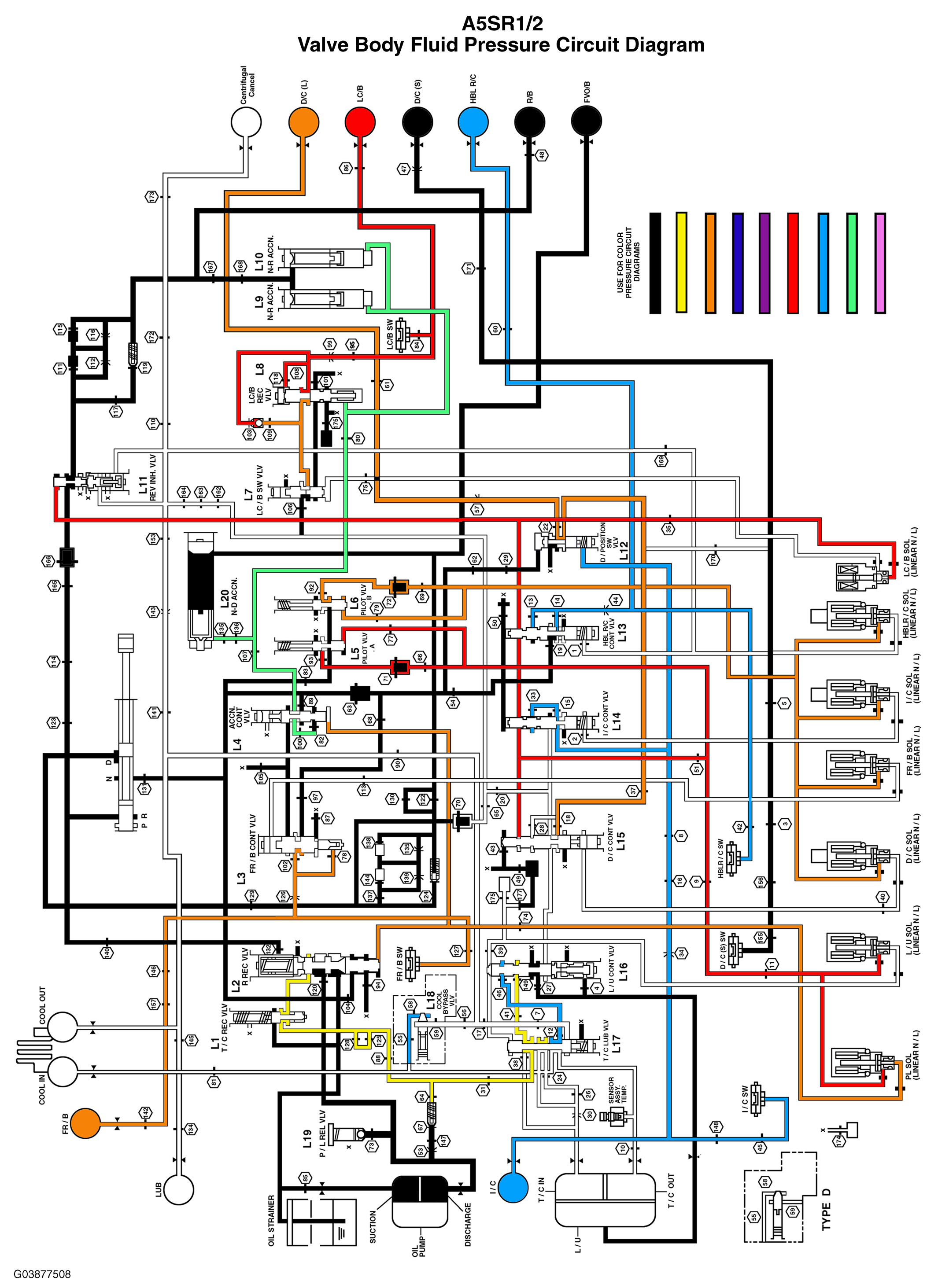

Fig 1: Valve Body Fluid Pressure Circuit Diagram - D Range
G03877508Courtesy of KIA MOTORS AMERICA, INC.
