Fog/Driving Lamp: Service and Repair

Front Fog Lamps

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

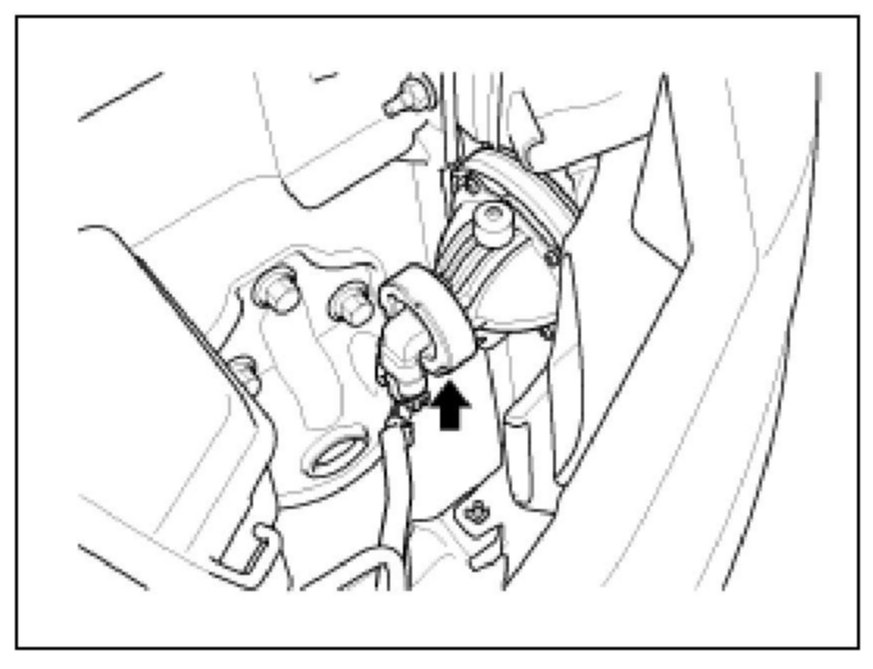

2. Remove the front fog lamp after loosening the screws and disconnecting the fog lamp connector.
3. Installation is the reverse of removal.
