Front

Front Washer Motor

INSPECTION
1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

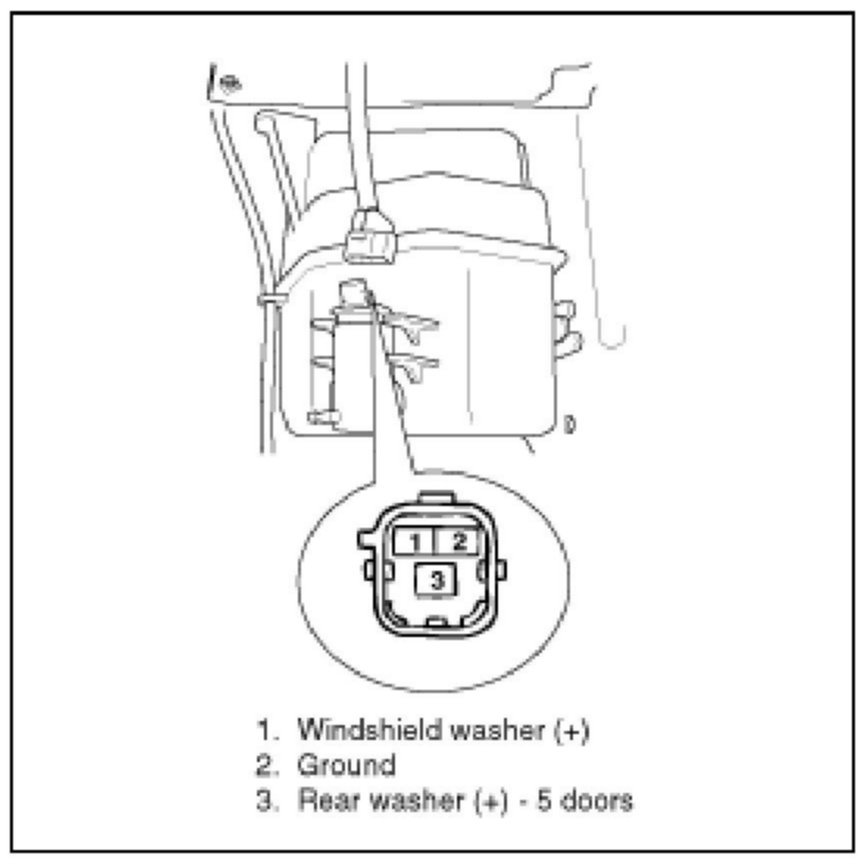

2. Connect positive (+) and negative (-) battery cables to terminals 1 and 2 respectively to see that the washer motor runs and water sprays from the front nozzles.










3. Check that the motor operates normally.
