Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

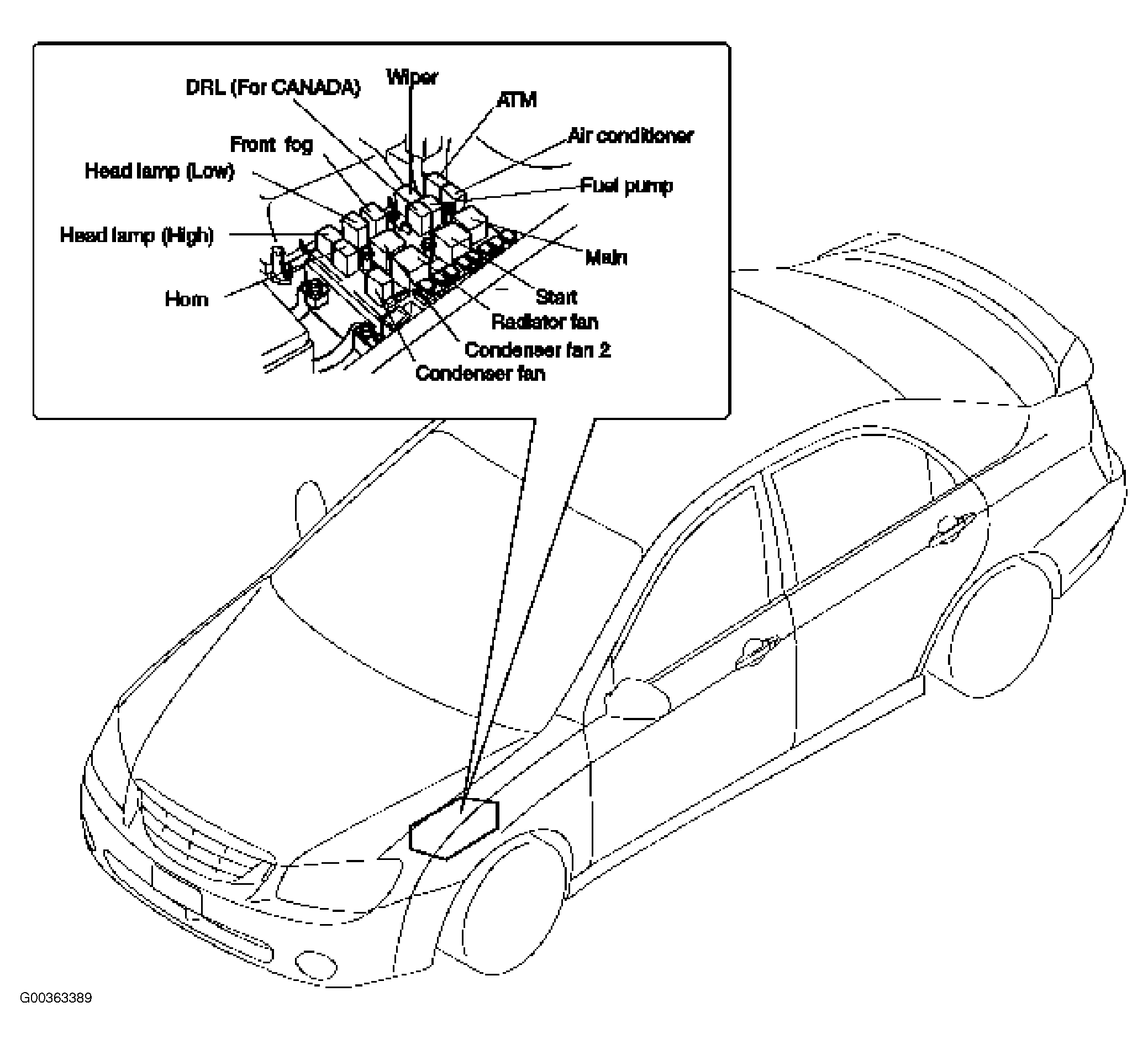

Engine Compartment Fuse/Relay Box Left rear of engine compartment. See Figure.

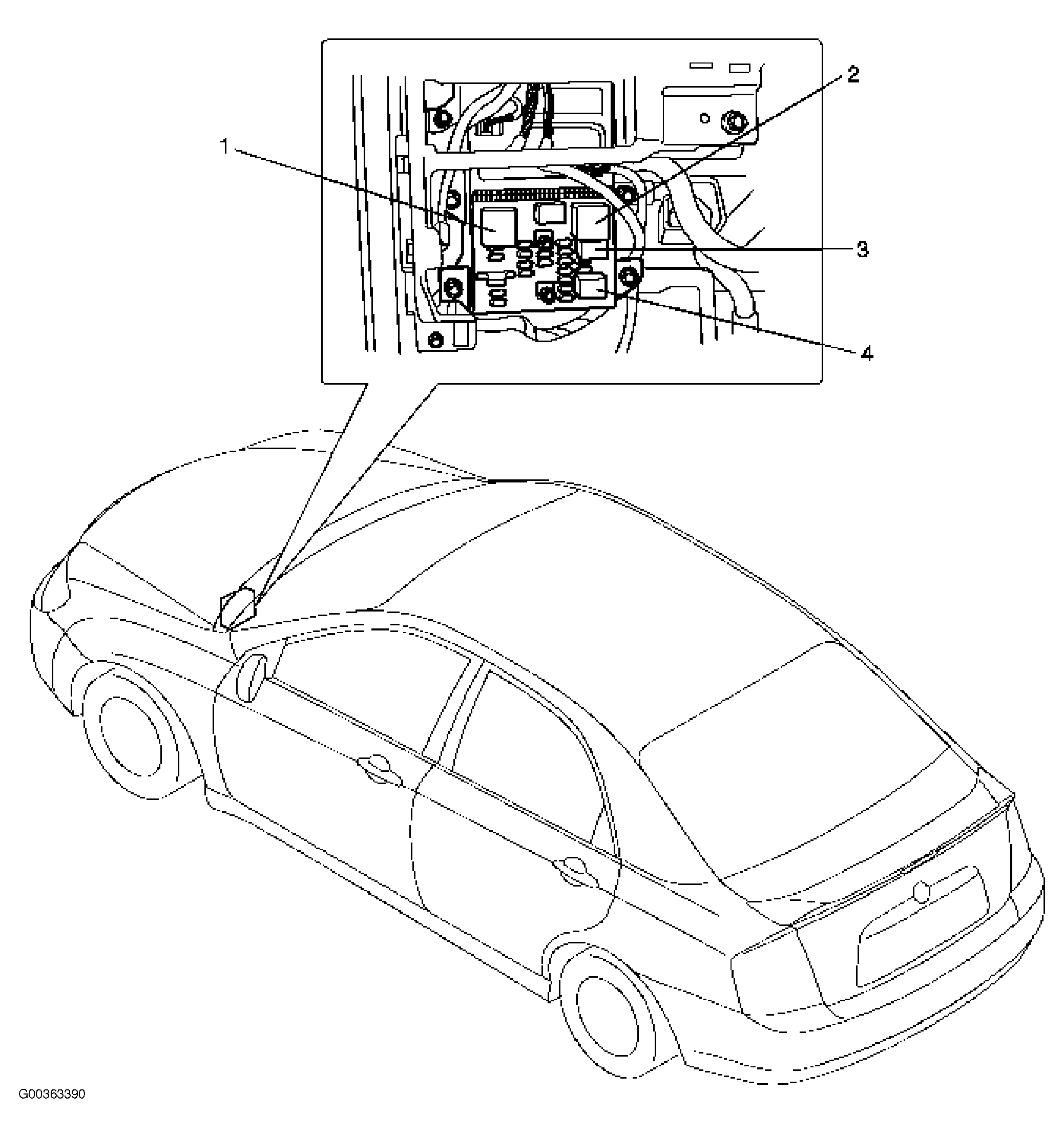

Instrument Panel Fuse Box Under left side of dash. See Figure.
