Oil Pan, Engine

Oil Pan

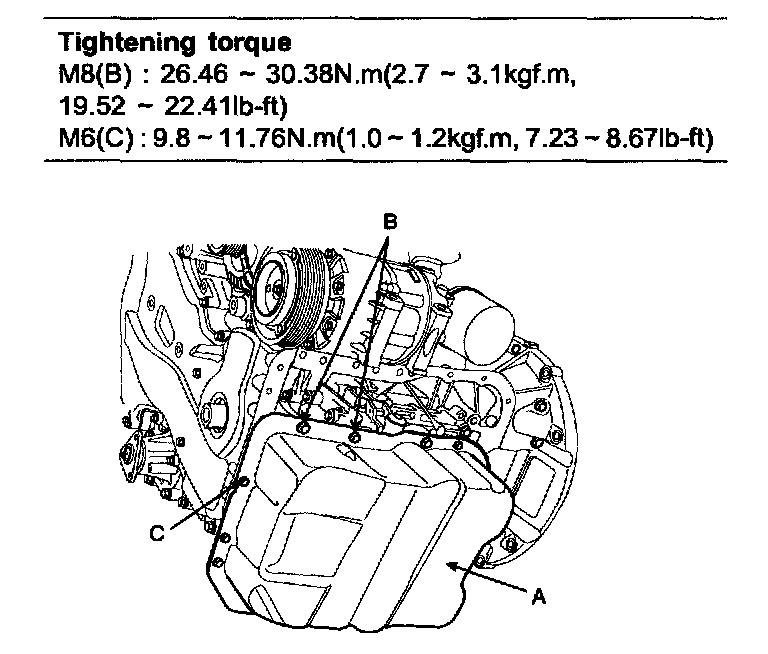

Install oil pan (A). Uniformly tighten the bolts in several passes.
After assembly, wait at least 30 minutes before filling the engine with oil.
