Removal

ALTERNATOR

REMOVAL
1. Disconnect the battery negative terminal first, then the positive terminal.
2. Disconnect the generator connector, and remove the cable from generator "B" terminal.
3. Remove the drive belt.

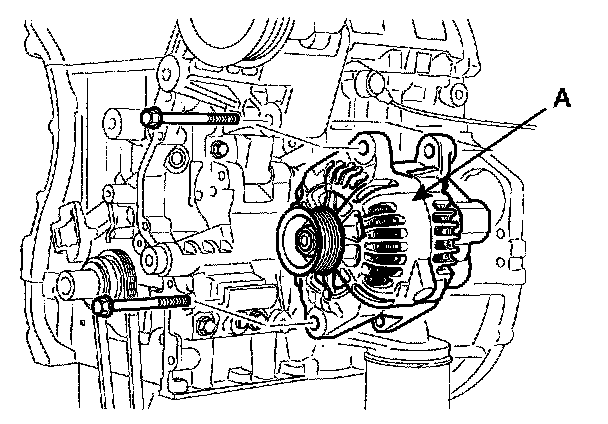

4. Pull out the through bolt and then remove the generator (A).
5. Installation is the reverse of removal.
