Home >> Kia >> 2006 >> Optima L4-2.4L VIN 6 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Components >> System Diagram

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

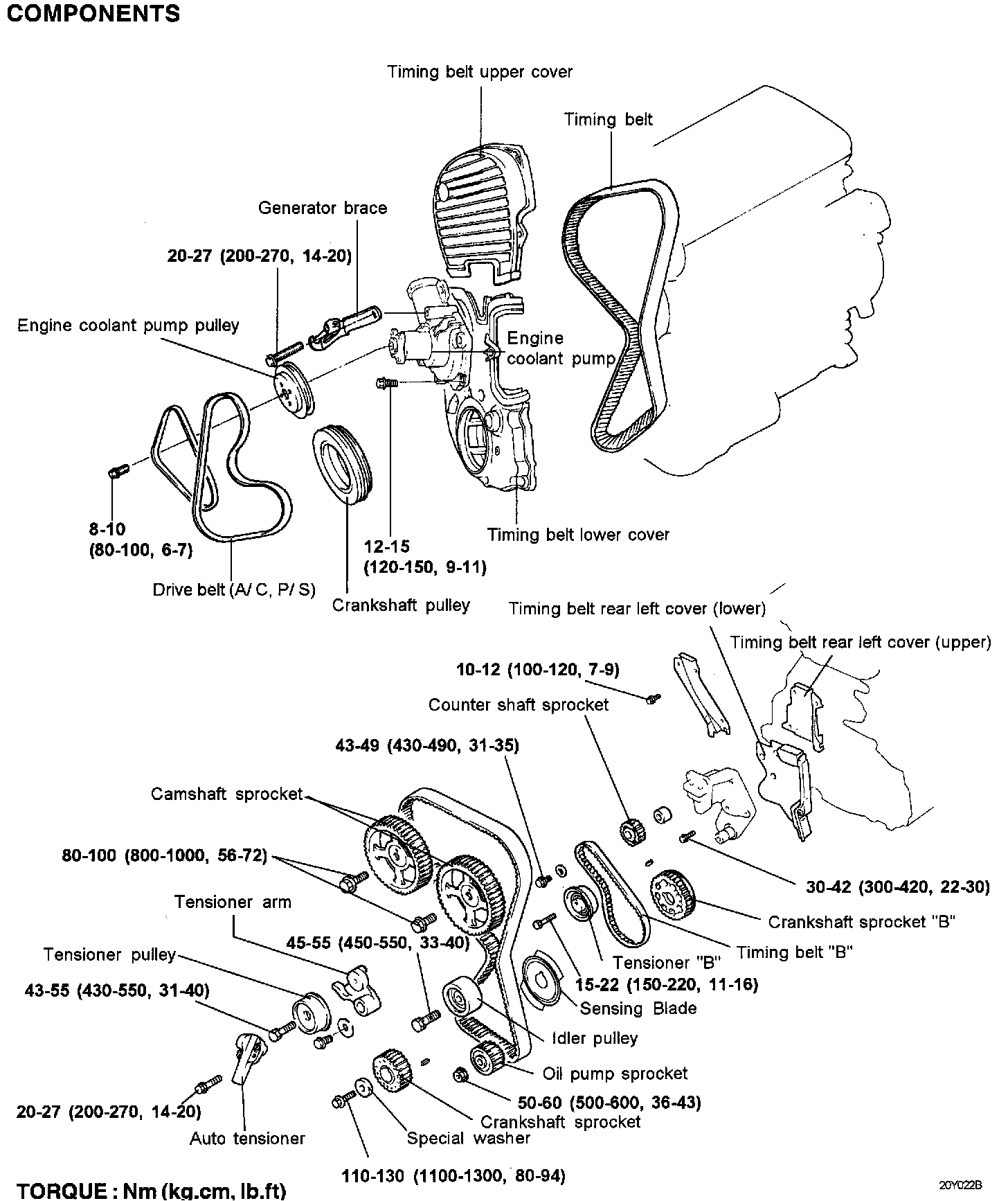

System Diagram
