Door Module: Service and Repair

DOOR MODULE ASSEMBLY REPLACEMENT
1. Remove the following parts.
- Front door trim.
- Glass.
- Channel.

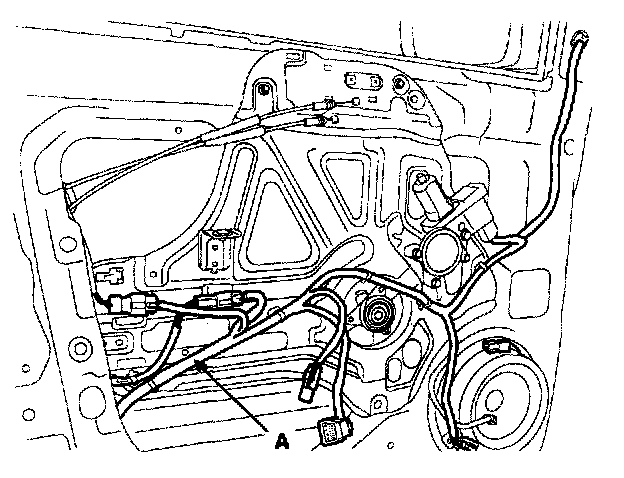

2. Disconnect the wiring harness (A).




3. Disconnect the lock rod (A) and outside handle rod (B).

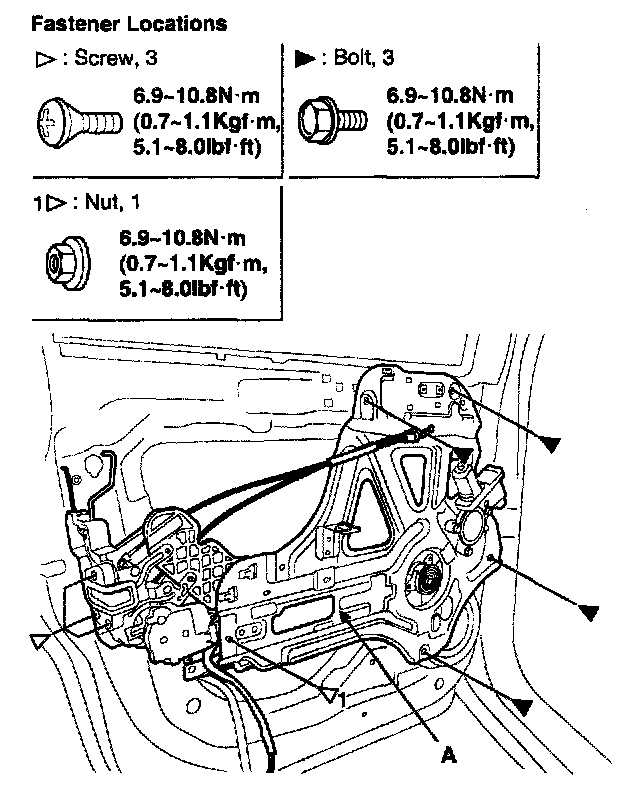

4. Loosen the door module mounting bolts, then remove the door module (A).
5. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly and each rod b connected securely.
- Make sure the door locks and opens properly.
