Electronic Brake Control Module: Testing and Inspection

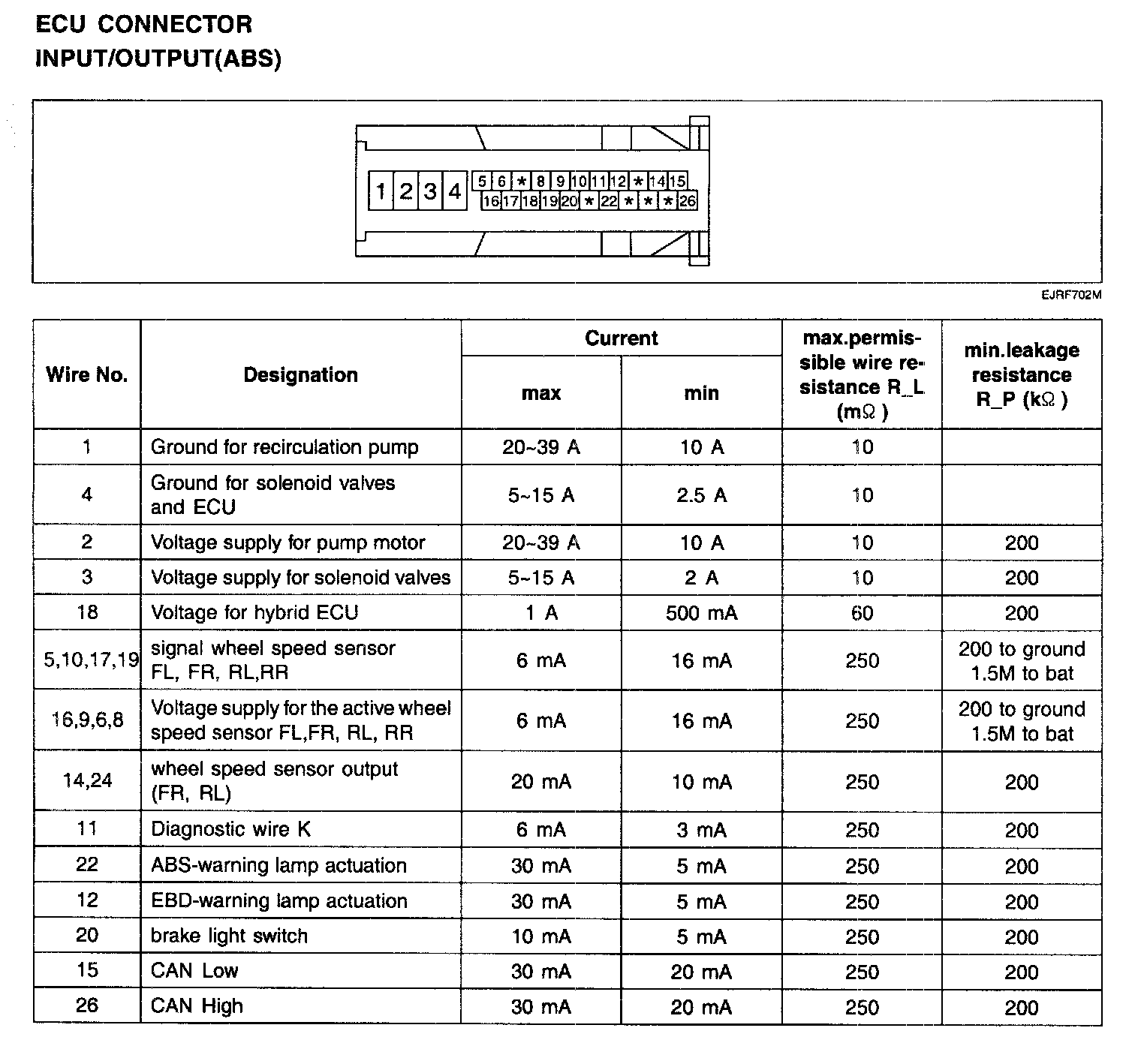

ECU CONNECTOR INPUT/OUTPUT (ABS):

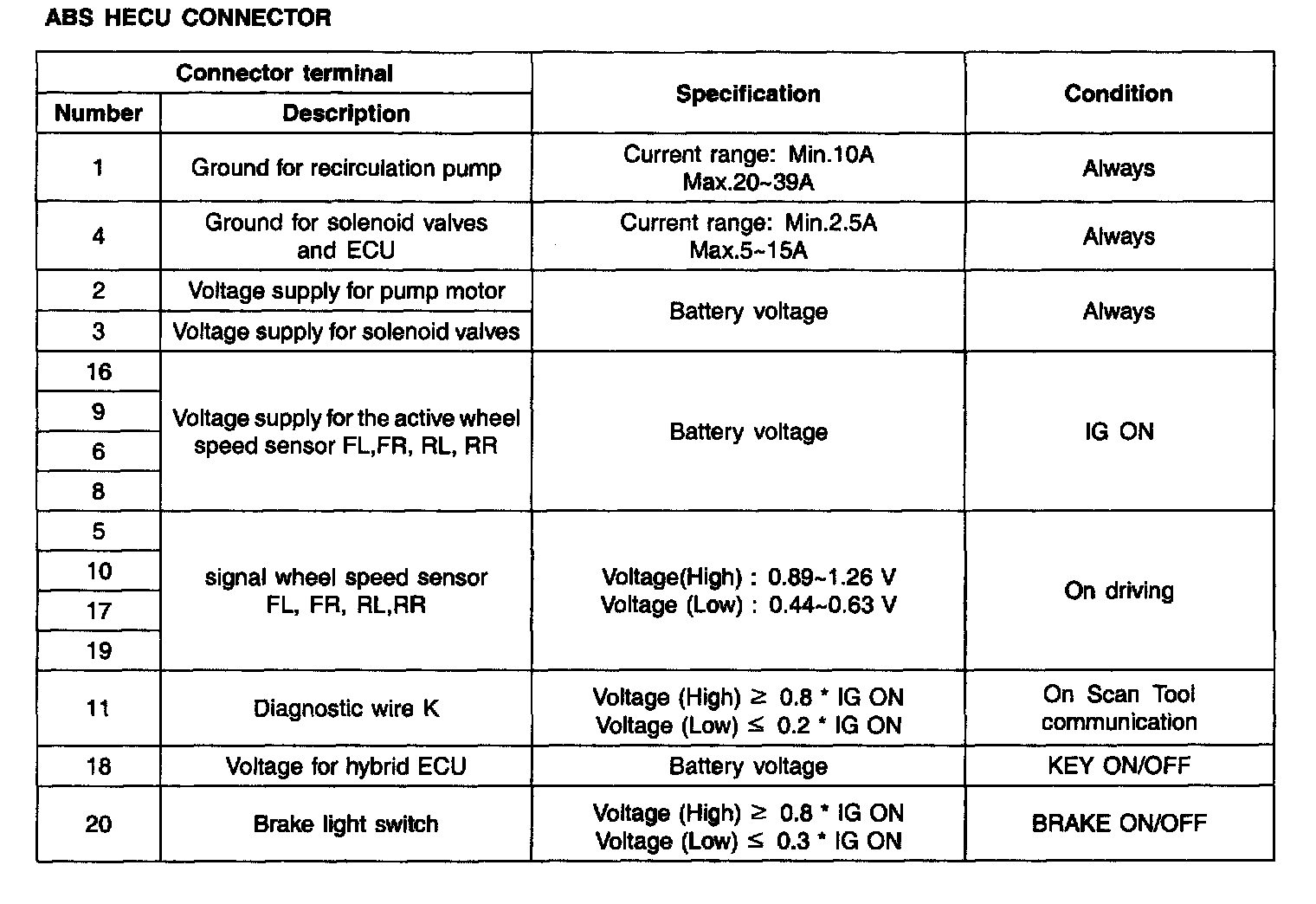

ABS HECU CONNECTOR:

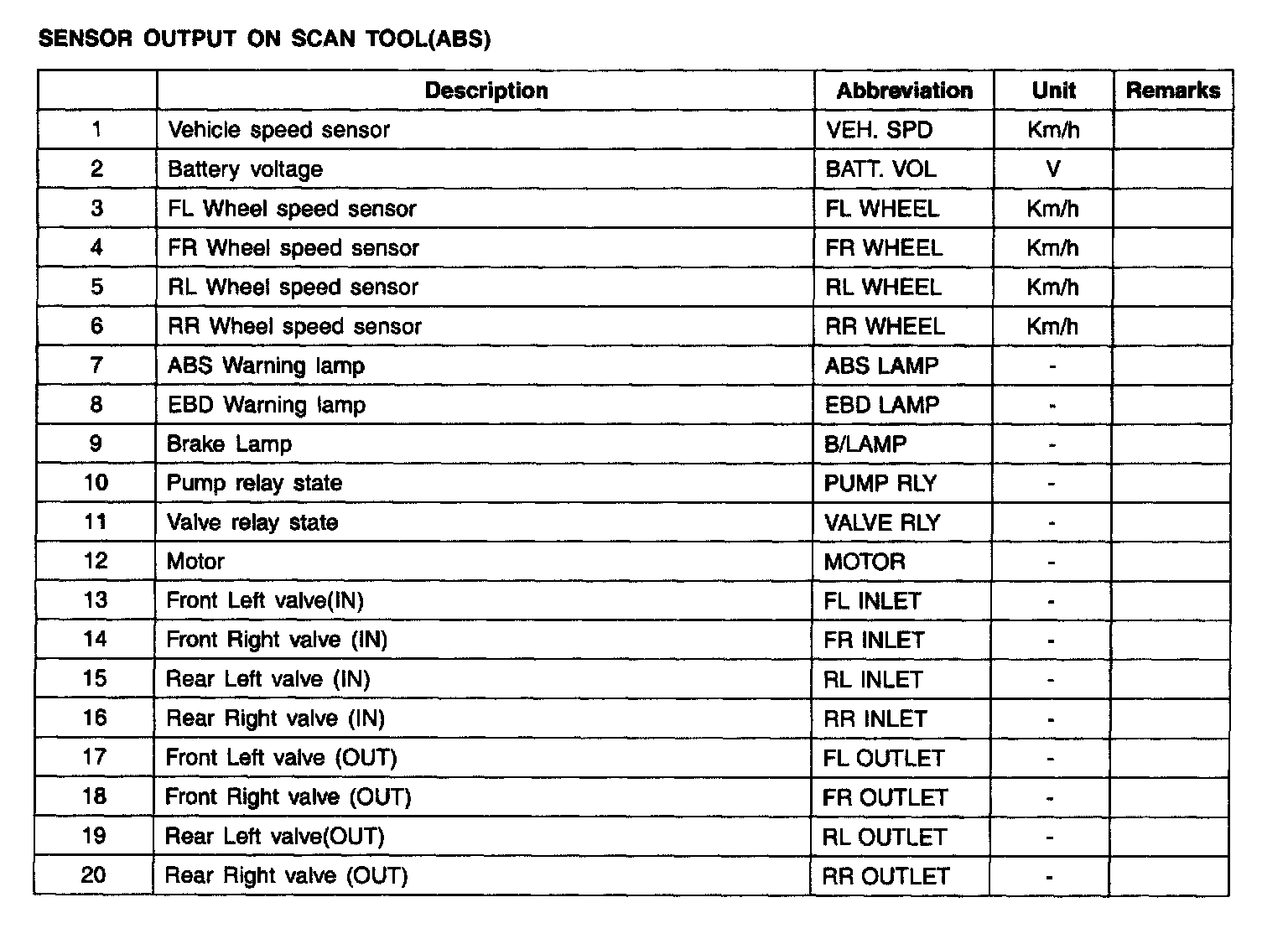

SENSOR OUTPUT ON SCAN TOOL (ABS):
