Starter System Test Procedure

THE MICRO 570 ANALYZER




The MICRO 570 Analyzer provides the ability to test the charging and starting systems, including the battery, starter and generator.

CAUTION: Because of the possibility of personal injury, always use extreme caution and appropriate eye protection when working with batteries.




KEY PAD
The MICRO 570 button on the key pad provides the following functions.

STARTER TEST PROCEDURE




1. After the battery test, press ENTER immediately for the starter test.




2. After pressing ENTER key, start the engine.




3. Cranking voltage and starter test results will be displayed on the screen.
Take a relevant action according to the test results by referring to the starter test results as given.

4. To continue charging system test, press ENTER.

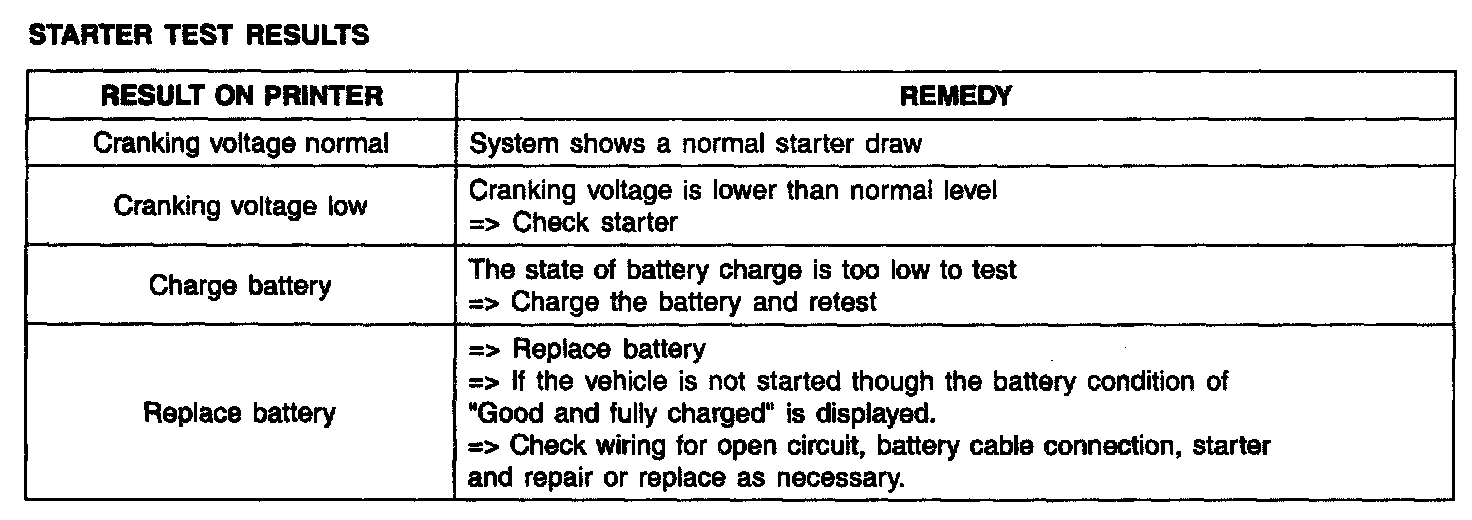

Starter Test Results:

STARTER TEST RESULTS
