Multi Function Switch Connector End Views

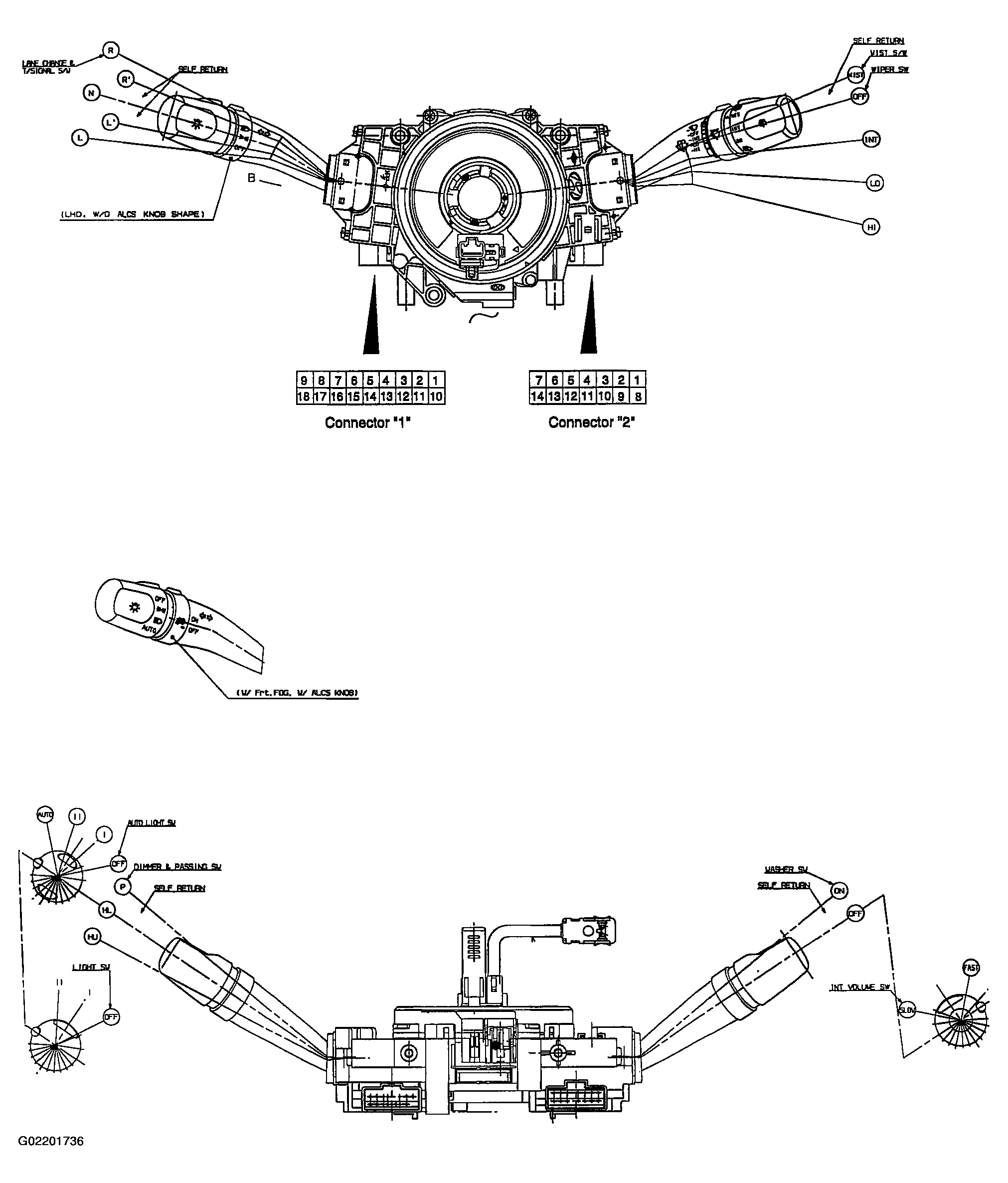

Fig 1: Multi Function Switch Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
