Compressor Clutch: Description and Operation




MAGNETIC CLUTCH OPERATION

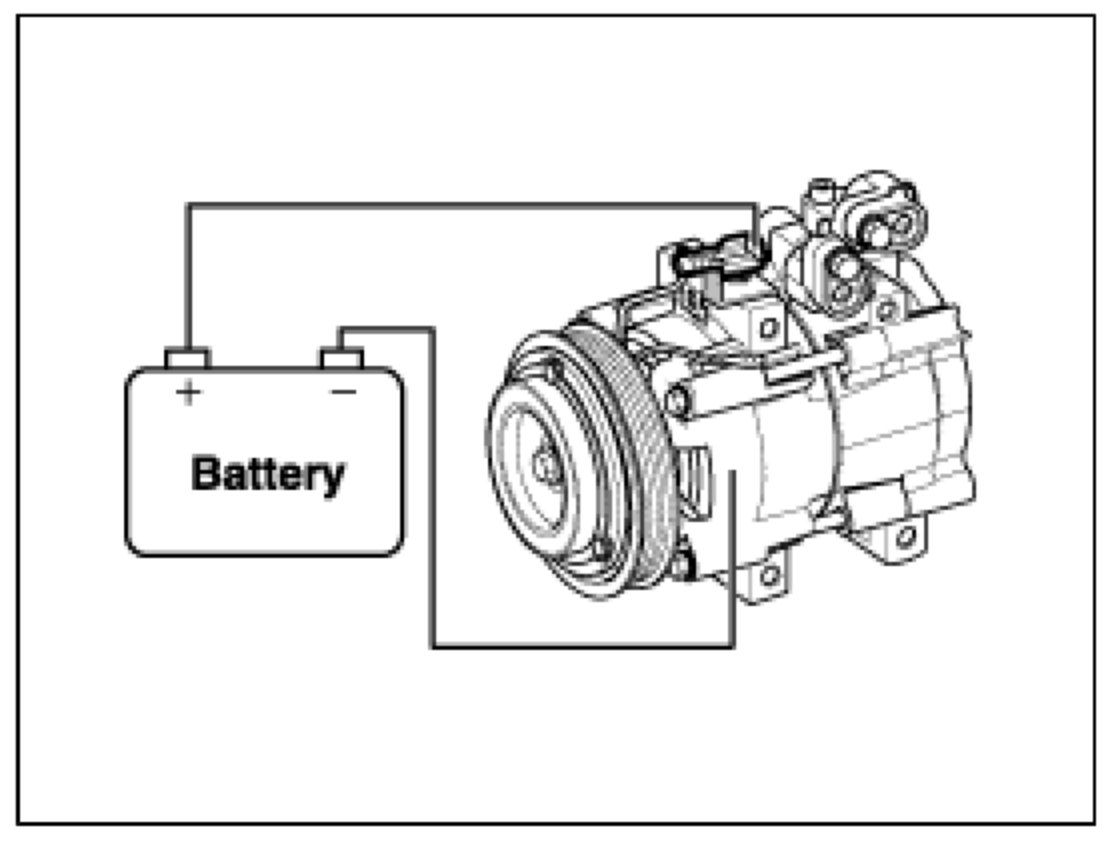

Connect the compressor terminal to battery (+) and the battery (-) terminal to the compressor body. Verify magnetic clutch operation by a clicking noise.
