Stator Inspection

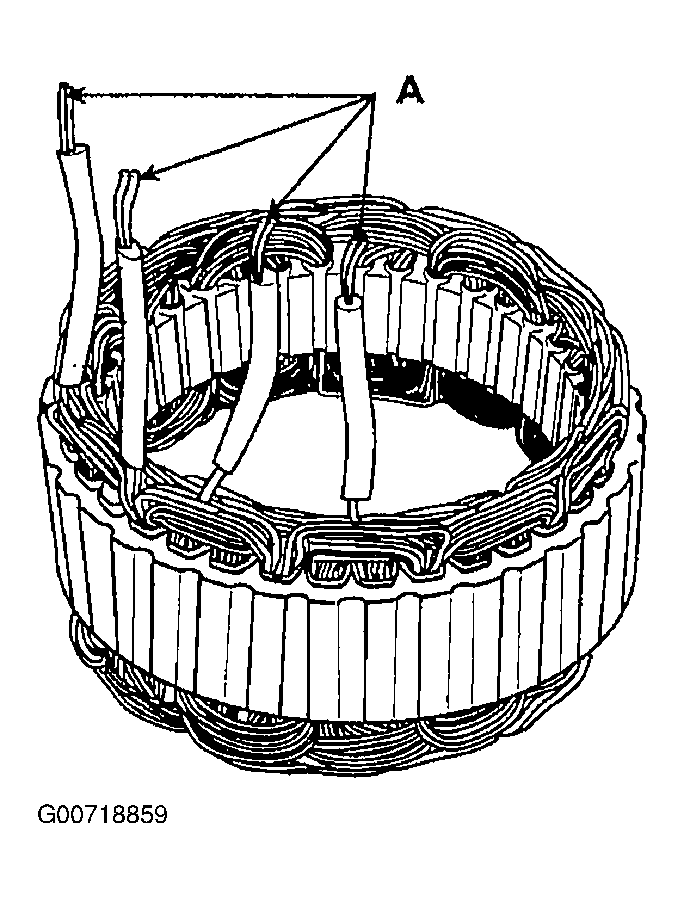

- Check that there is continuity between each pair of leads (A).
- Check that there is no continuity between each lead and the coil core.
- If the coil fails either continuity check, replace the alternator.
Courtesy of KIA MOTORS AMERICA, INC.
