Blower Motor Resistor: Service and Repair

BLOWER RESISTOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

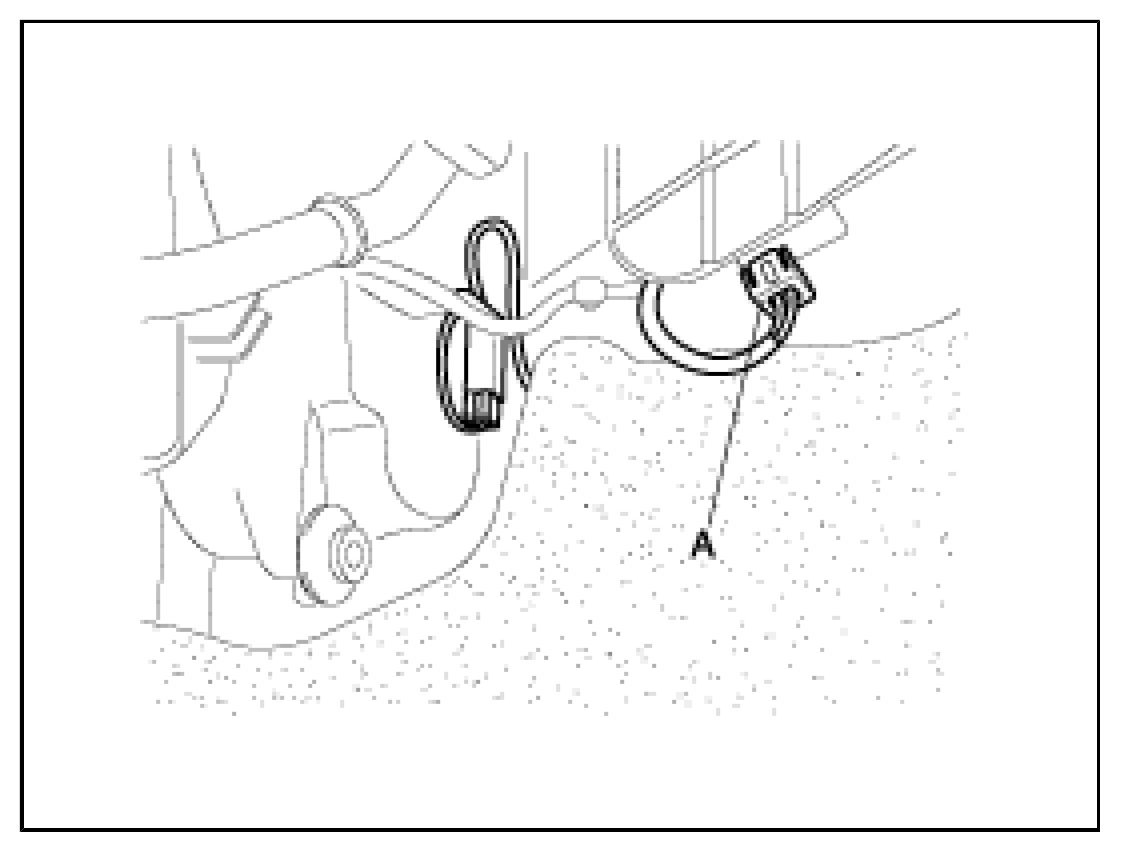

2. Disconnect the connector (A) of the blower resistor at the below blower unit.
3. Remove the blower resistor after loosening the mounting screws.
4. Install in the reverse order of removal.
