Electronic Brake Control Module: Testing and Inspection

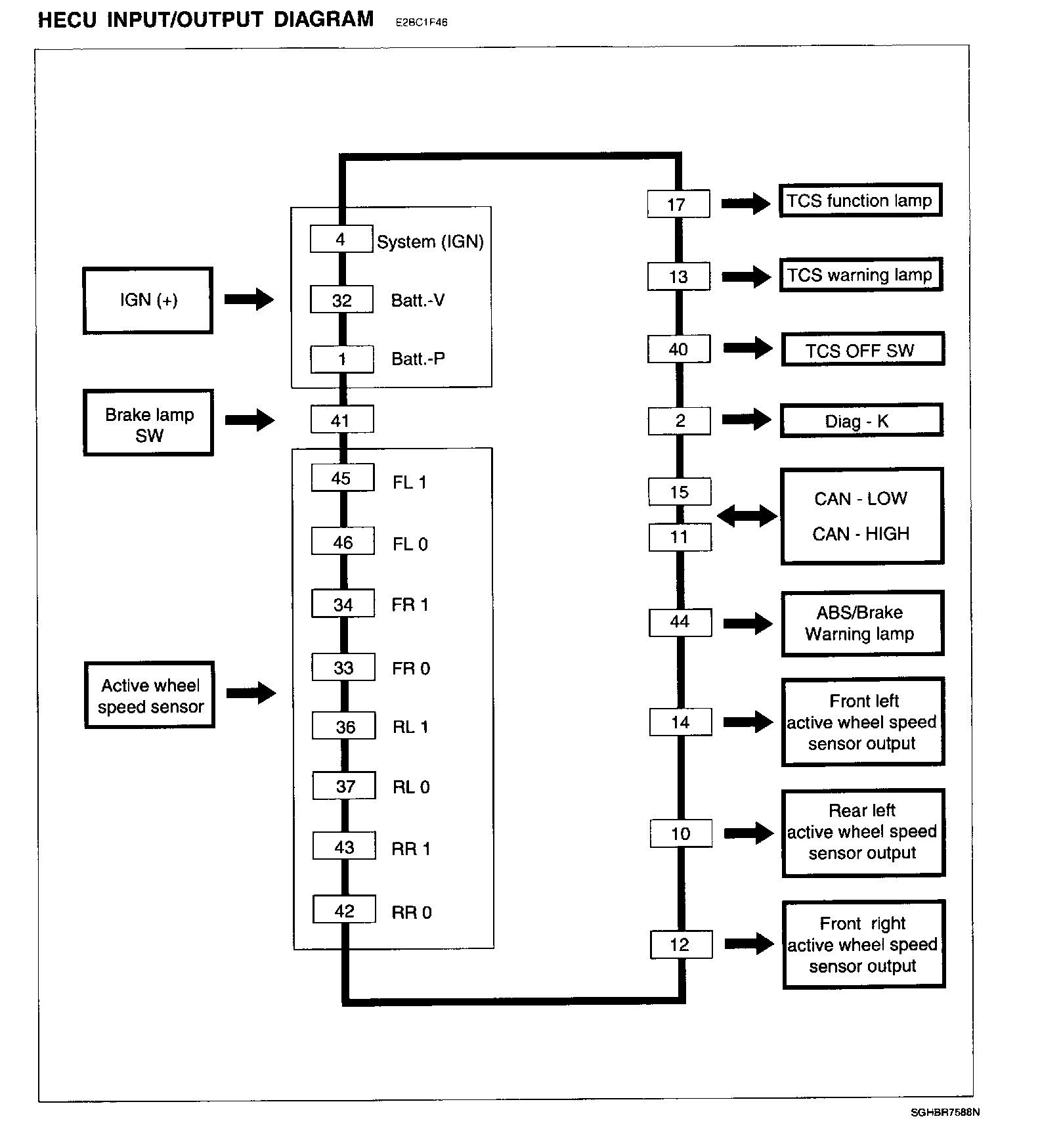

HECU INPUT/OUTPUT DIAGRAM

HECU INPUT/OUTPUT DIAGRAM:





ABS/TCS CONTROL UNIT

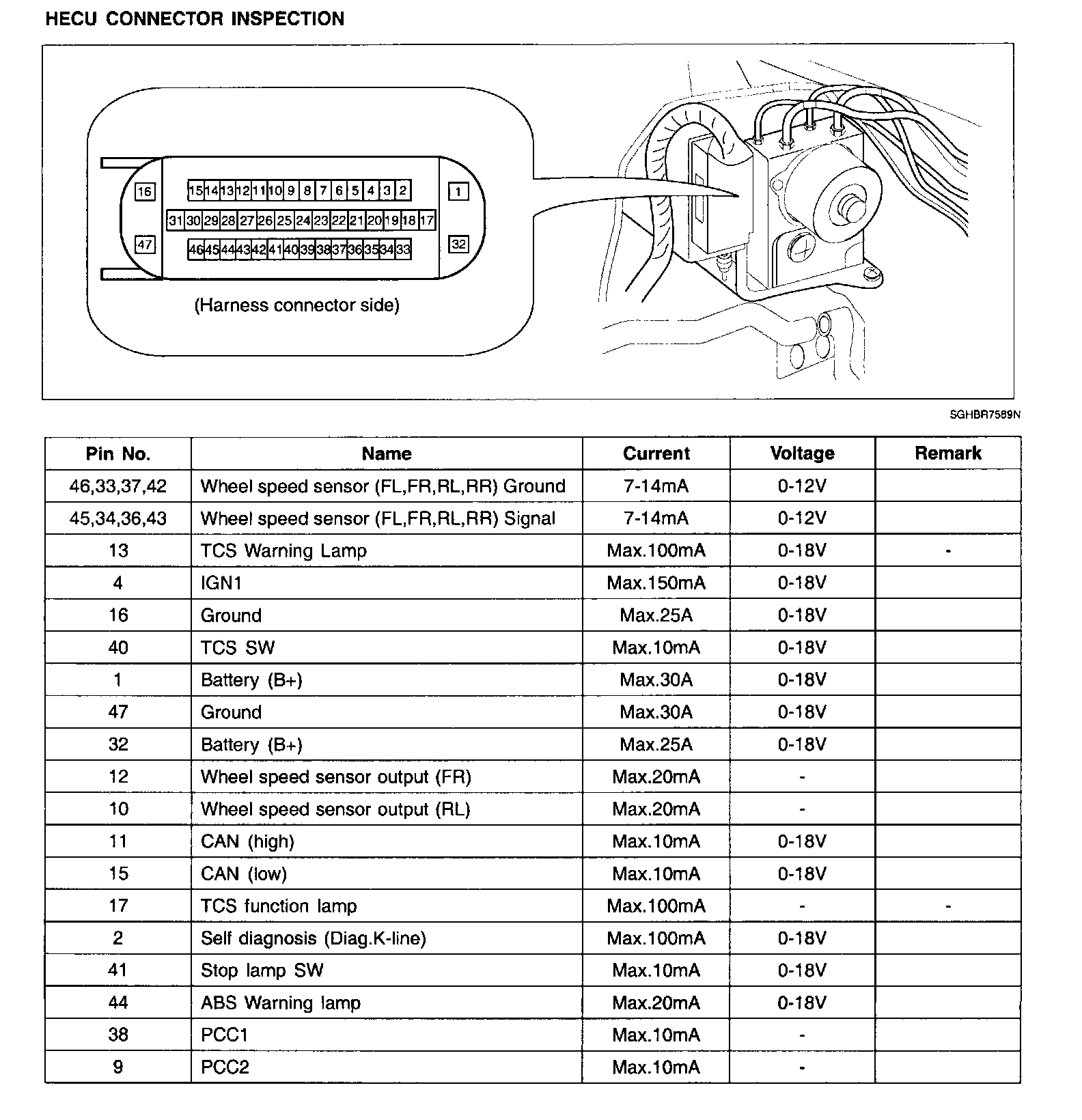

HECU CONNECTOR INSPECTION:





ACTUATOR DRIVING

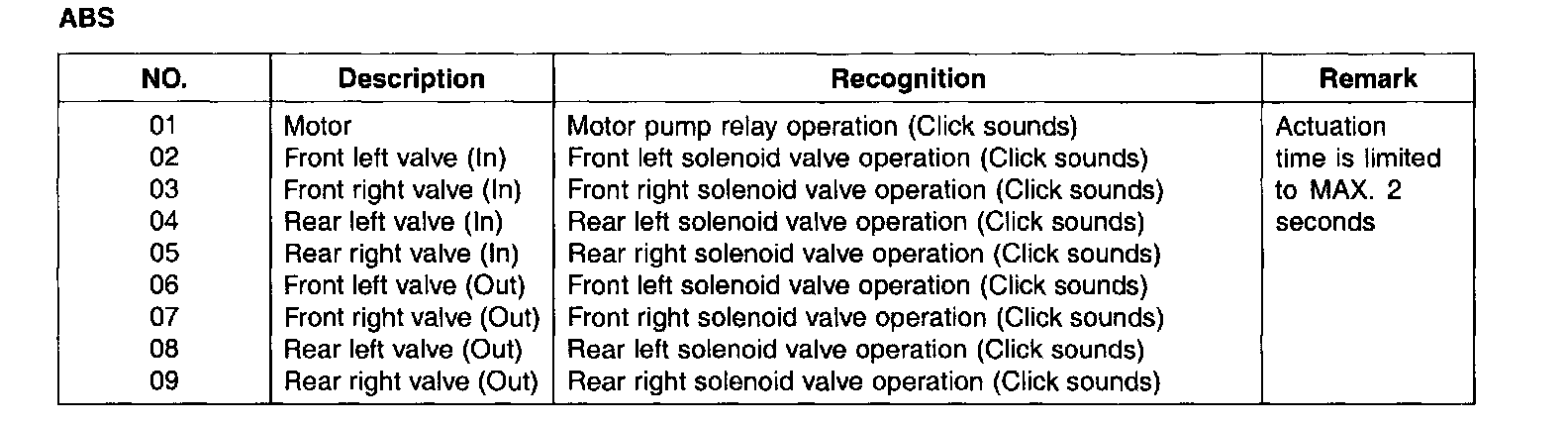

ABS:




TCS:





CURRENT DATA

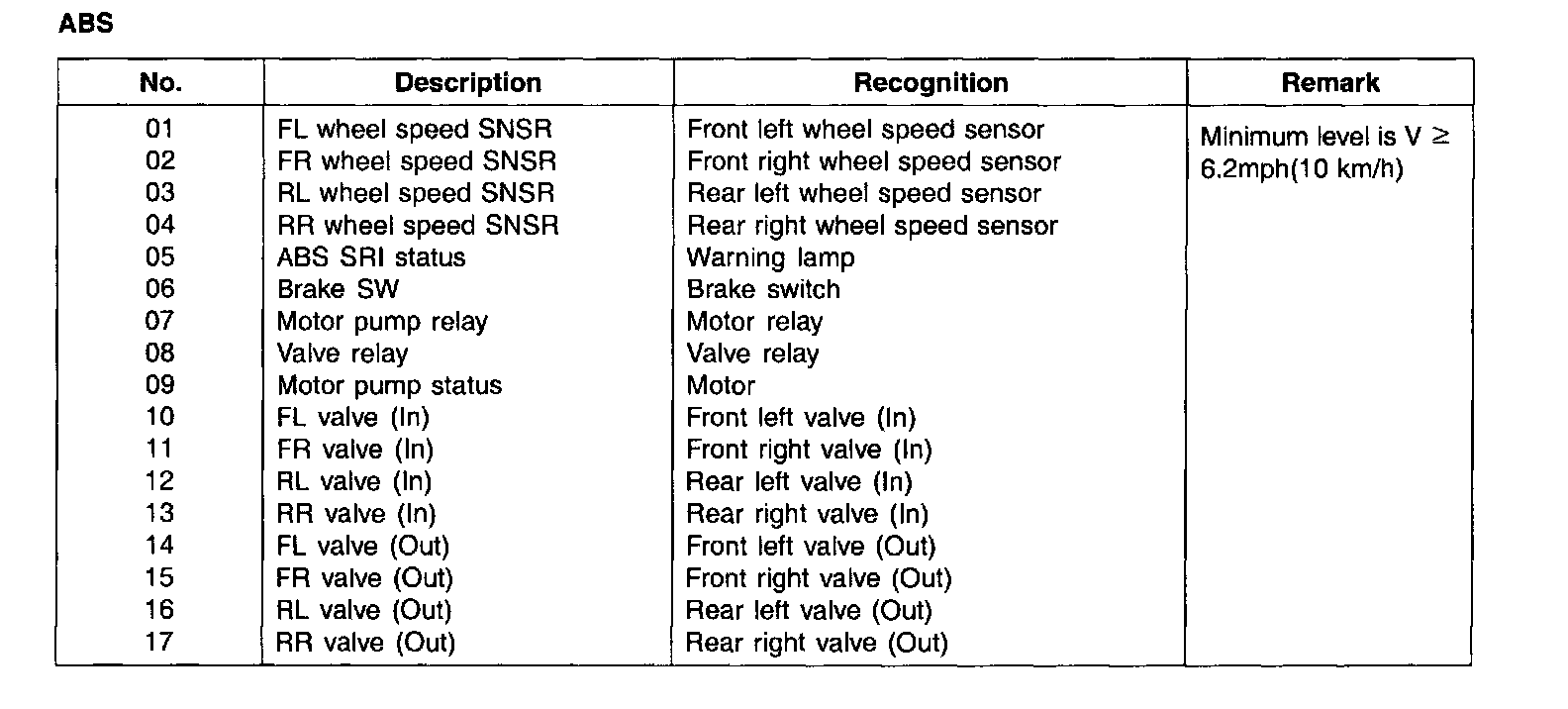

ABS:

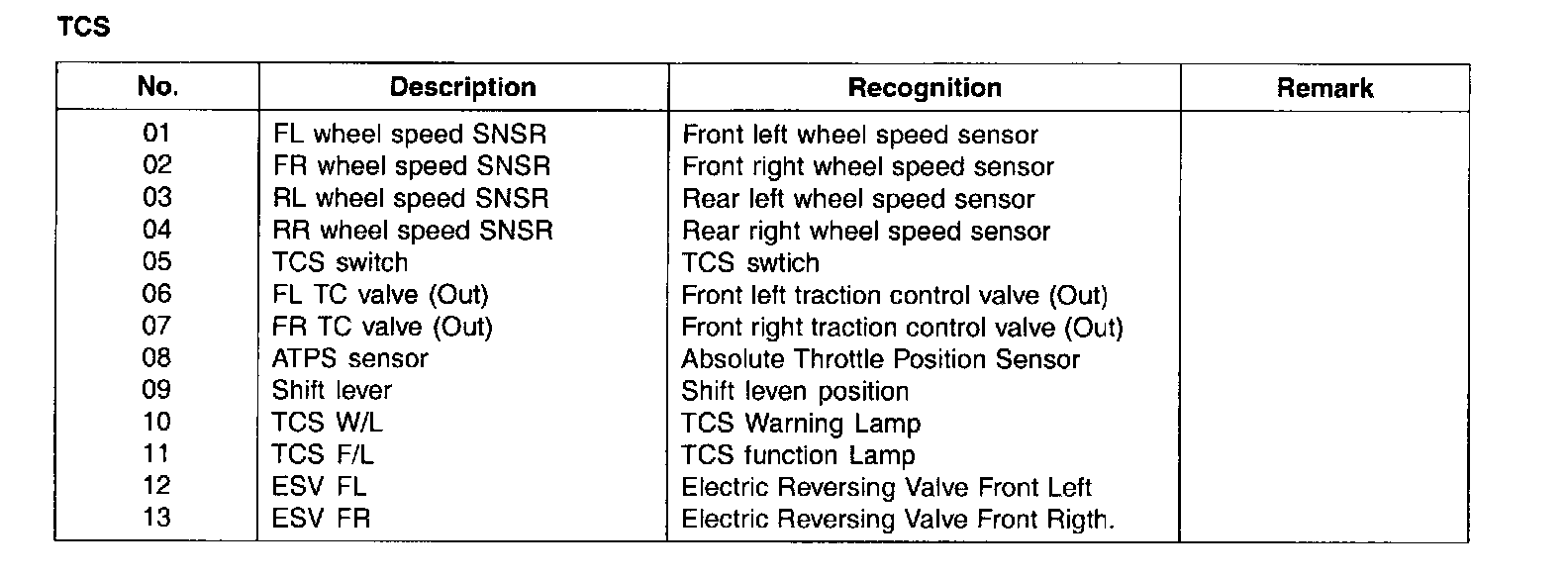

TCS:
