Service Standard

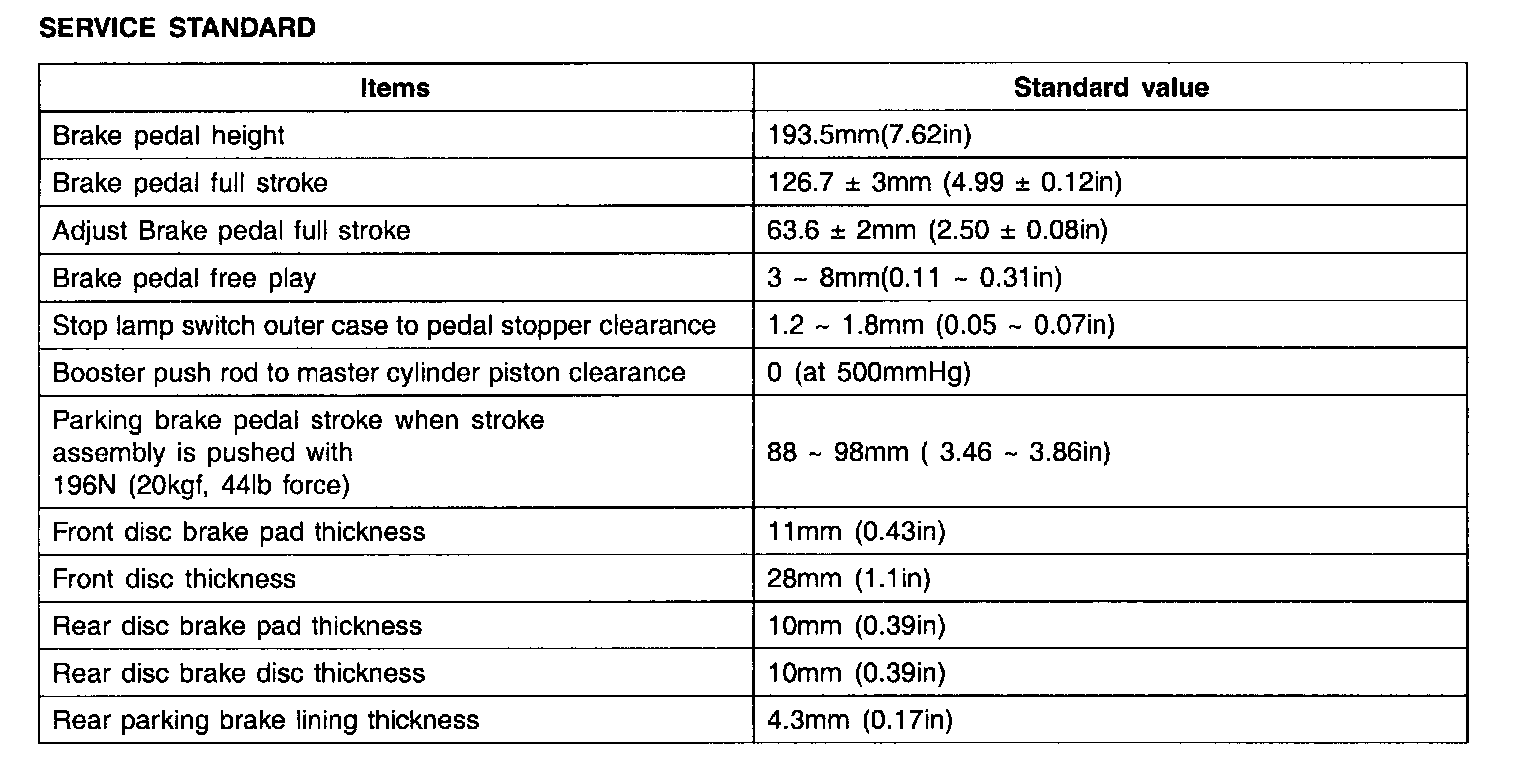

SERVICE STANDARD





Front Brake Rotor/Disc

Minimum & Discard thickness
Standard value 28.0 mm (1.10 in)
Limit 26.4 mm (1.04 in)

Thickness Variation
Should not exceed
Circumference 0.005 mm (0.0002 in)
Radius 0.01 mm (0.0004 in)

Brake disc run out
Limit 0.04 mm (0.0016 in.) or less (new one)

Rear Brake Rotor/Disc

Minimum & Discard thickness
Standard value 10.0 mm (0.39 in)
Limit 8.0 mm (0.31 in)

Thickness Variation
Should not exceed
Circumference 0.01 mm (0.0004 in)
Radius 0.01 mm (0.0004 in)

Brake disc run out
Limit 0.05 mm (0.002 in.) or less (new one)
