Home >> Kia >> 2007 >> Amanti >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control Main Switch >> Circuit Diagram

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

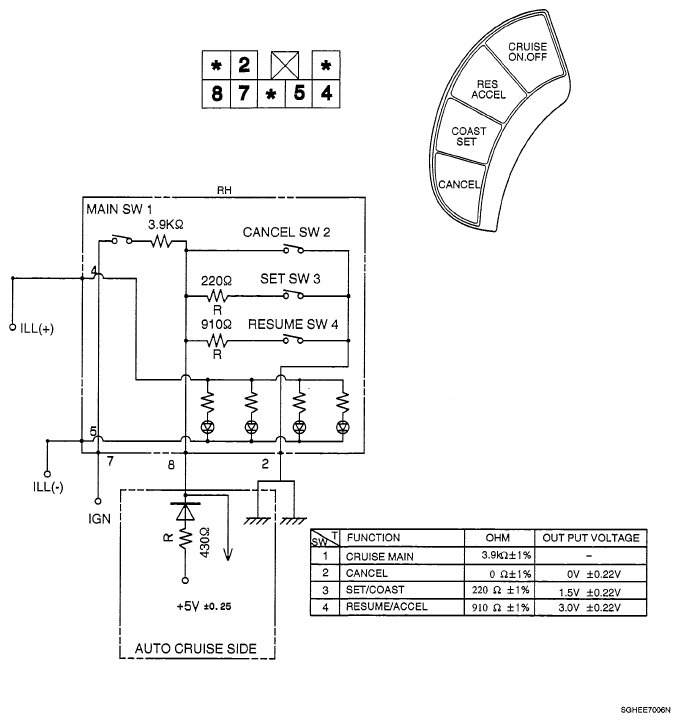

Circuit Diagram

G05116299

Courtesy of KIA MOTORS AMERICA, INC.
