Charging System: Alternator: Inspection: Stator

Check that there is continuity between each pair of leads (A). If there is no continuity, replace the generator.

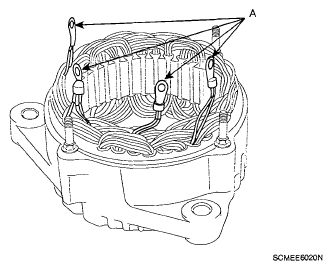

Fig 1: Checking Continuity On Stator Leads
Courtesy of KIA MOTORS AMERICA, INC.
