Components Location

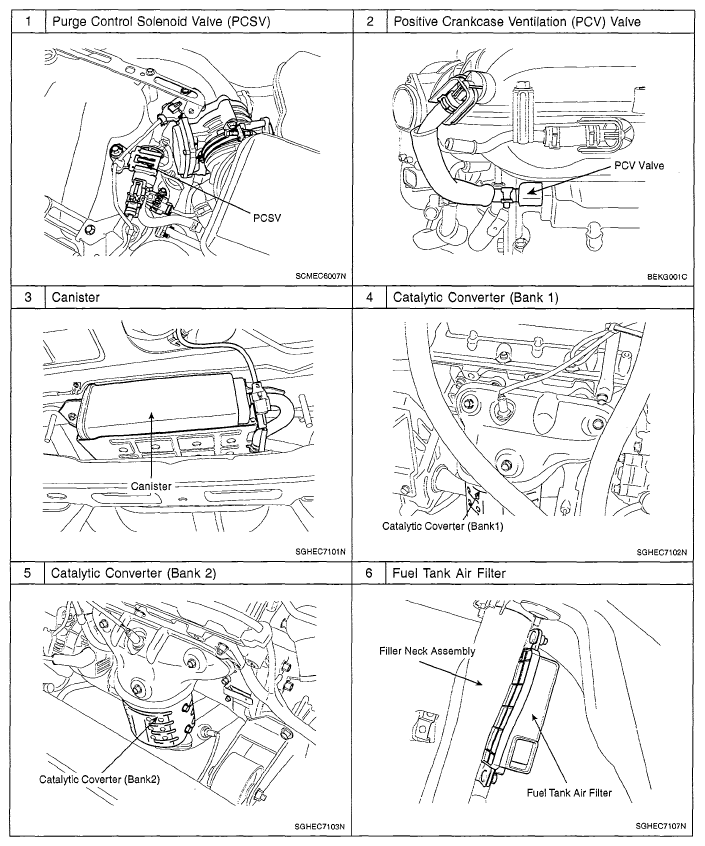

Fig 1: Identifying Emission Control System Components
Courtesy of KIA MOTORS AMERICA, INC.

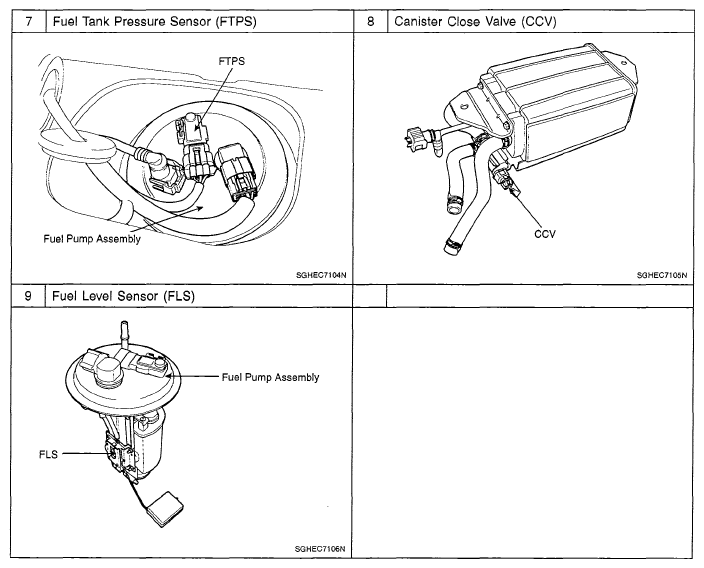

Fig 2: Identifying Emission Control System Components
Courtesy of KIA MOTORS AMERICA, INC.

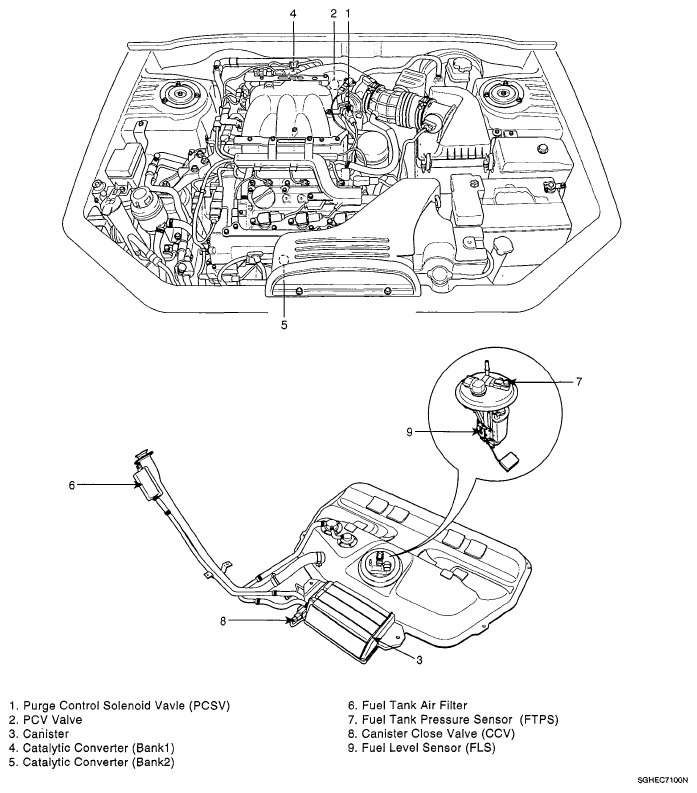

Fig 3: Identifying Emission Control System Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
