Rear Suspension System: Components

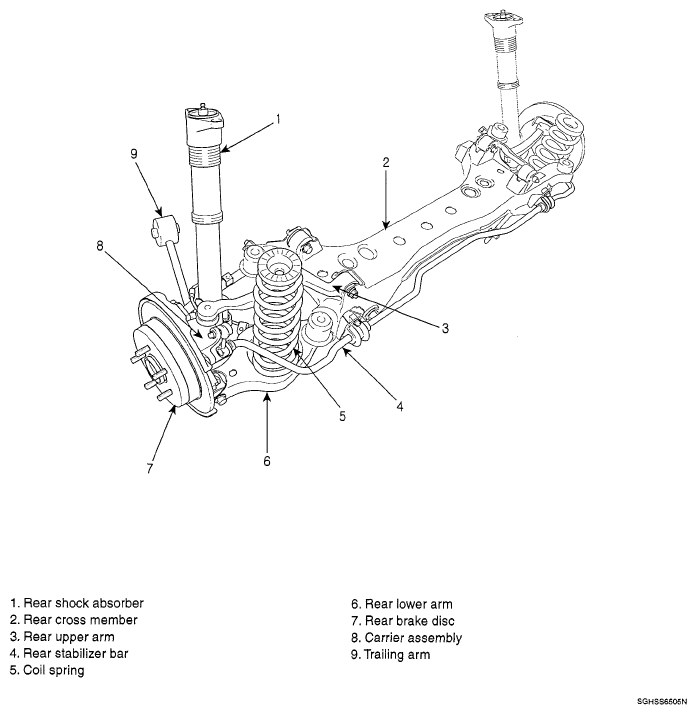

Fig 1: Identifying Rear Suspension System Components
G05117020Courtesy of KIA MOTORS AMERICA, INC.
