Circuit Diagram

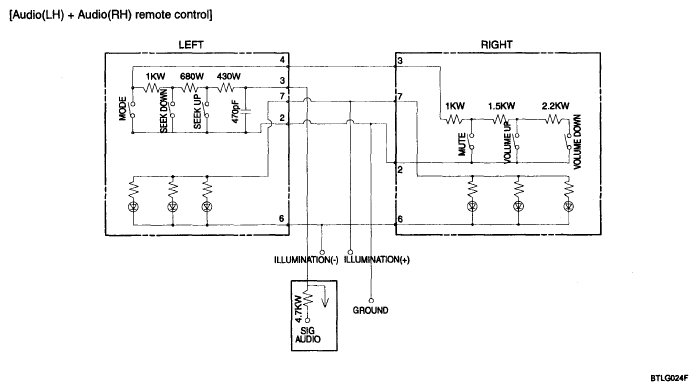

Fig 1: Audio Remote Control Circuit Diagram (1 Of 2)
G04806313Courtesy of KIA MOTORS AMERICA, INC.

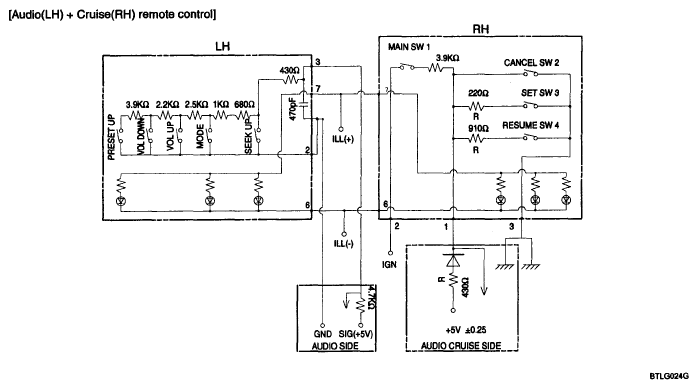

Fig 2: Audio Remote Control Circuit Diagram (2 Of 2)
G04806314Courtesy of KIA MOTORS AMERICA, INC.
