Input And Output Diagram

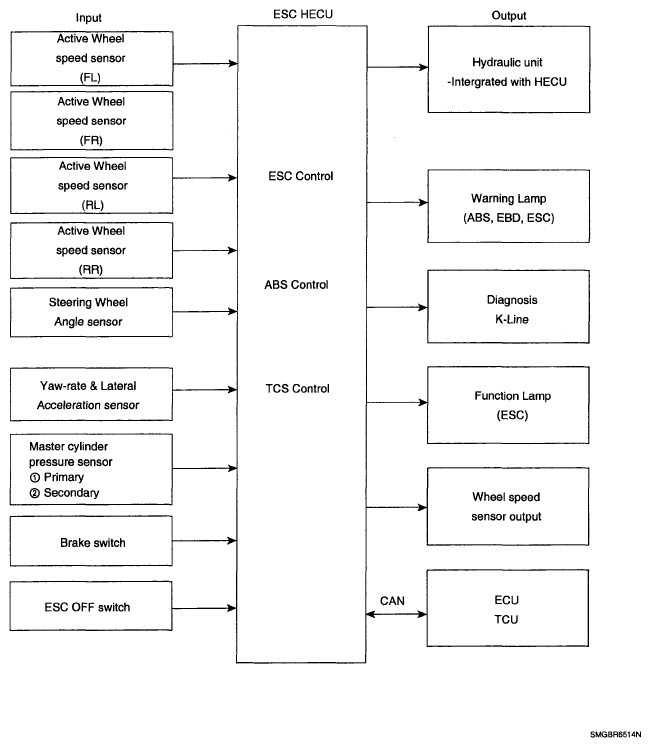

Fig 1: Input And Output Communication Diagram

G04805965

Courtesy of KIA MOTORS AMERICA, INC.
