Front Hub / Knuckle: Components

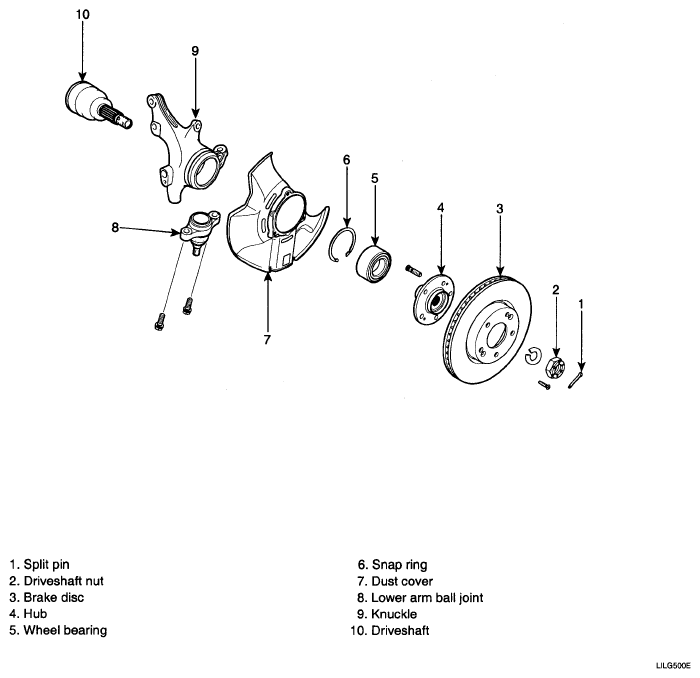

Fig 1: Identifying Front Hub / Knuckle Components

G04805293

Courtesy of KIA MOTORS AMERICA, INC.
