Power Steering Hoses: Components

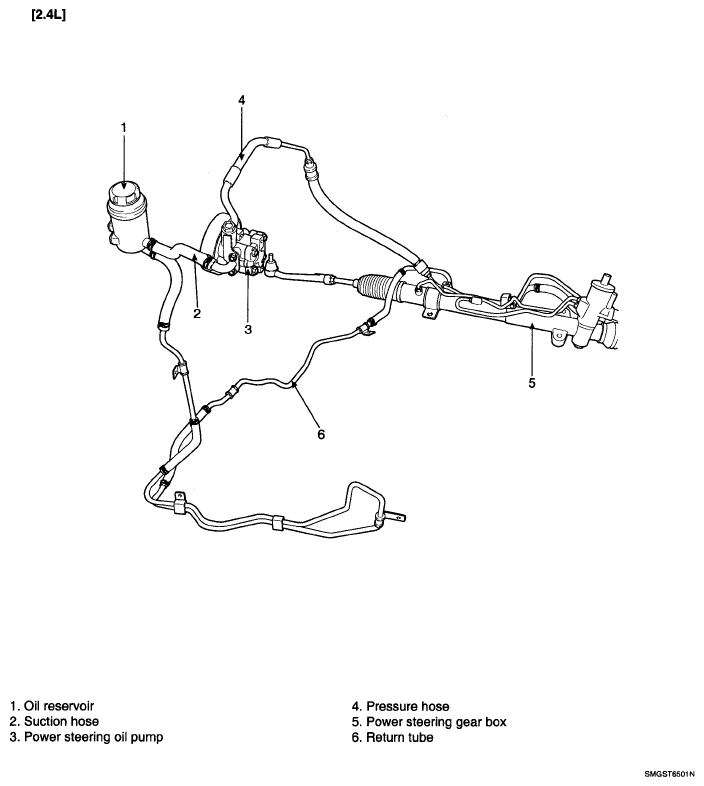

Fig 1: Identifying Power Steering Hoses Components (2.4L)
Courtesy of KIA MOTORS AMERICA, INC.

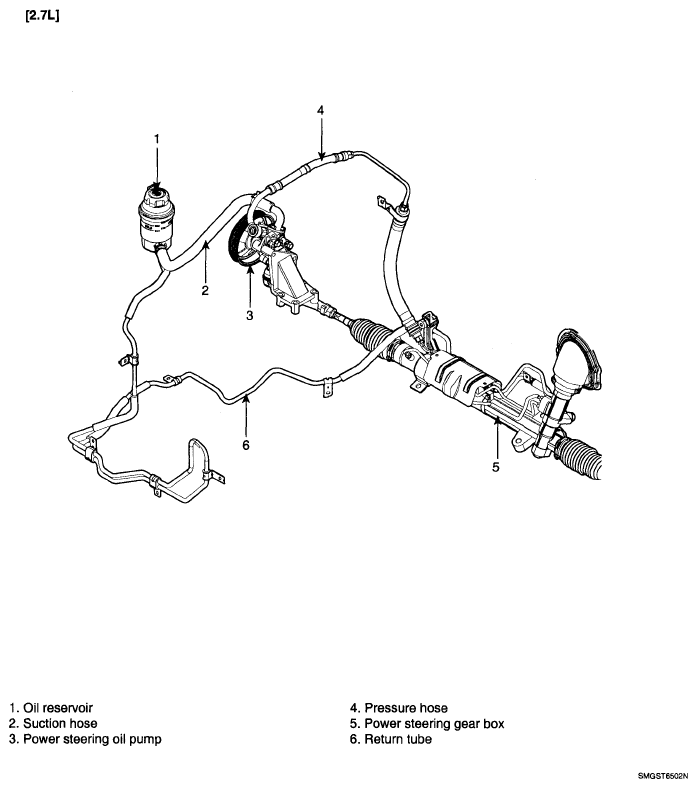

Fig 2: Identifying Power Steering Hoses Components (2.7L)
Courtesy of KIA MOTORS AMERICA, INC.
